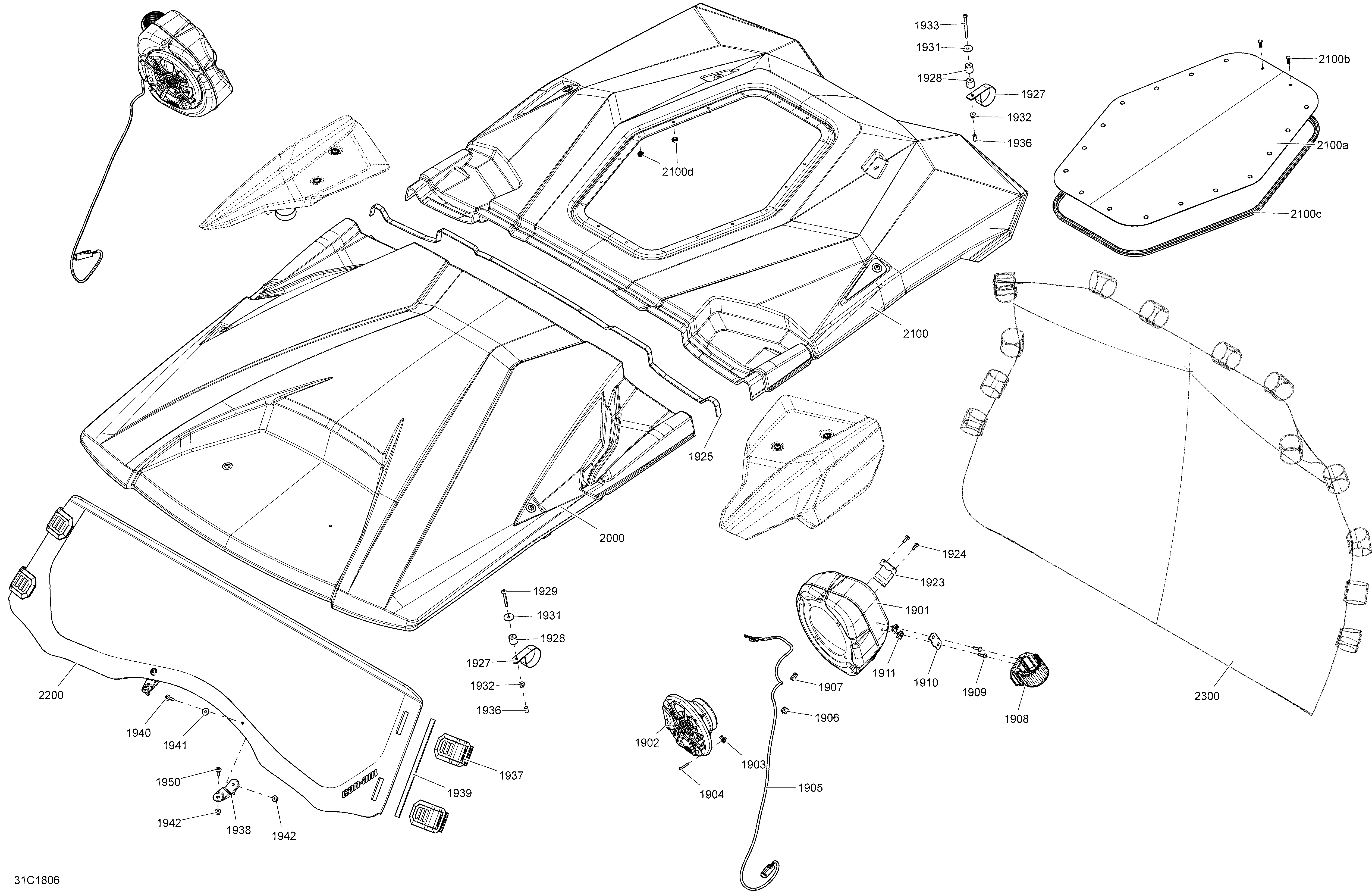

09- Body Accessories - Commander MAX - Package LTD для BRP 4- Commander MAX 1000R EFI - 2018
-
№АртикулНазвание
-
1901710002837 LH Speaker Box Ass'y. Includes 1900a to 1900wwLH Speaker Box Ass'y. Includes 1900a to 1900ww
-
1901710002839 RH Speaker Box Ass'yRH Speaker Box Ass'y
-
1902710002838 SpeakerSpeaker
-
1903250100143 Extruded Panel Nut M4 X 0.7Extruded Panel Nut M4 X 0.7
-
1904250000622 Torx Pan Screw M4 X 20Torx Pan Screw M4 X 20
-
1905710004341 Speaker HarnessSpeaker Harness
-
1906414227300 ClipClip
-
1904414036300 GrommetGrommet
-
1908705007962 Perforated Velcro StrapPerforated Velcro Strap
-
1909250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
1910710002946 M5 Support PlateM5 Support Plate
-
1911250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
1923705009030 ''U'' Brace Strip''U'' Brace Strip
-
1924250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
1925293250087 Gasket, NeopreneGasket, Neoprene
-
1925293200003 Neoprene Seal, MeterNeoprene Seal, Meter
-
1927705005626 ''P'' Bracket, 2'' Dia.''P'' Bracket, 2'' Dia.
-
1928705007138 Roof Spacer BushingRoof Spacer Bushing
-
1929250000749 Torx Truss Screw M6 X 50Torx Truss Screw M6 X 50
-
1931250200029 Washer M6Washer M6
-
1940250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
1942233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
1933235567084 Torx Screw Button HeadTorx Screw Button Head
-
1936515176141 CapCap
-
1937705007961 Velcro StrapVelcro Strap
-
1938705005776 Windshield SupportWindshield Support
-
1939293250087 Gasket, NeopreneGasket, Neoprene
-
1941234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1942233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
1950250000488 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
2000705009203 Deep Black Roof Front Section. Includes 2000 to 2000aDeep Black Roof Front Section. Includes 2000 to 2000a
-
2100705009205 Deep Black Roof Rear Section. Includes 2100 to 2100a4Deep Black Roof Rear Section. Includes 2100 to 2100a4
-
2100a705009562 Clear Skylight PanelClear Skylight Panel
-
2100b705009405 Plastic DartPlastic Dart
-
2100c293250336 Molding TrimMolding Trim
-
2100d705009406 Push NutPush Nut
-
2200705005671 Half WindshieldHalf Windshield
-
2300715003078 Wind DeflectorWind Deflector
