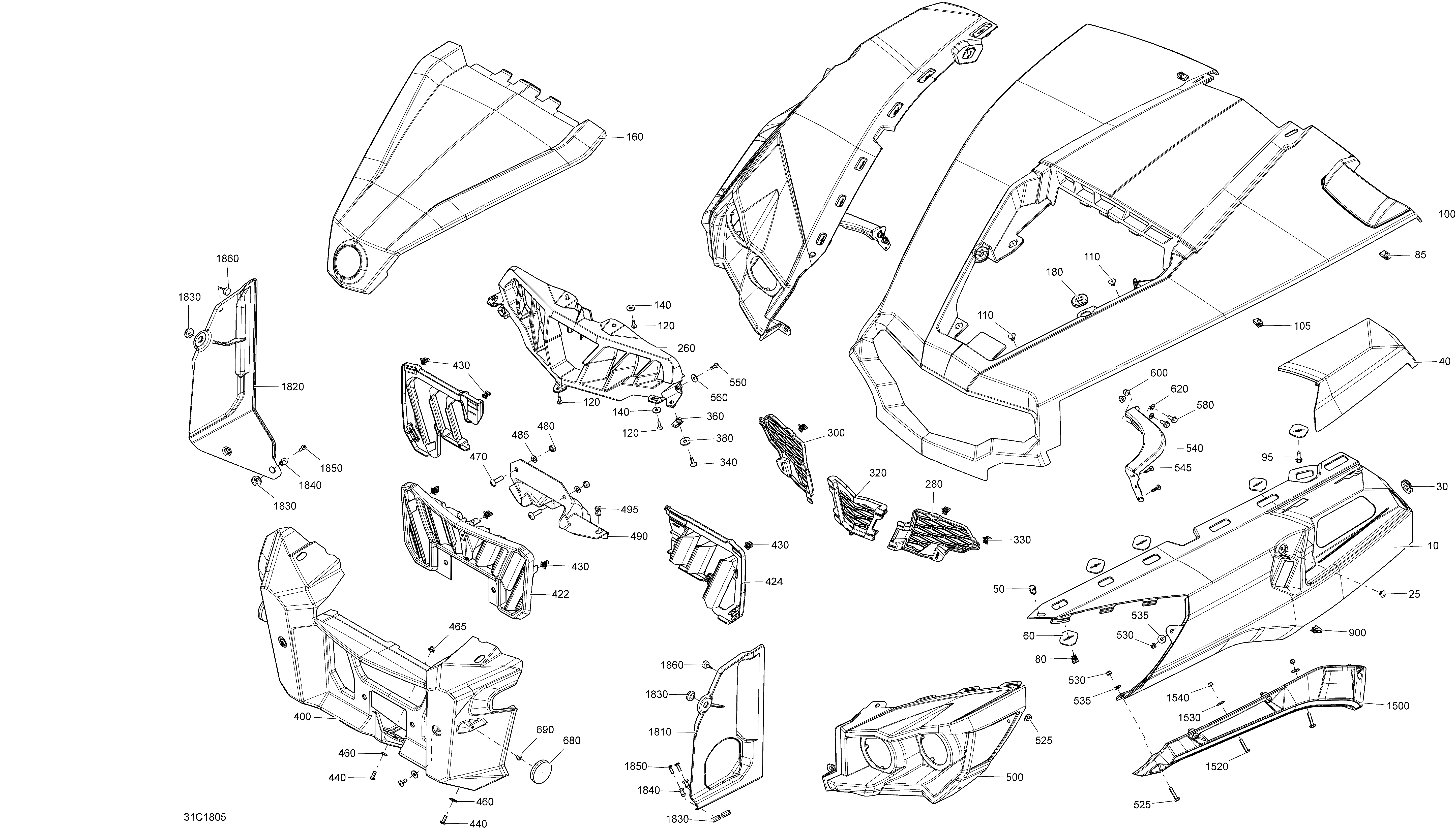

09- Body Front Part Commander MAX - Break Up Country Camo Models для BRP 4- Commander MAX 1000R EFI - 2018
-
№АртикулНазвание
-
10705008340 Brush Aluminum LH Front Fender. Brushed Aluminium ModelsBrush Aluminum LH Front Fender. Brushed Aluminium Models
-
10705009576 Camo LH Front Fender. Break Up Country Camo ModelsCamo LH Front Fender. Break Up Country Camo Models
-
10705009576 Camo LH Front Fender. Break Up Country Camo ModelsCamo LH Front Fender. Break Up Country Camo Models
-
20705009577 Camo RH Front Fender. Break Up Country Camo ModelsCamo RH Front Fender. Break Up Country Camo Models
-
20705009577 Camo RH Front Fender. Break Up Country Camo ModelsCamo RH Front Fender. Break Up Country Camo Models
-
20705008342 Brush Aluminum RH Front Fender. Brushed Aluminium ModelsBrush Aluminum RH Front Fender. Brushed Aluminium Models
-
25293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
25293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
25293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
30517303756 GrommetGrommet
-
30517303756 GrommetGrommet
-
30517303756 GrommetGrommet
-
40705008344 Brush Aluminum CVT Inlet Cover. Brushed Aluminium ModelsBrush Aluminum CVT Inlet Cover. Brushed Aluminium Models
-
40705009582 Camo CVT Inlet Cover. Break Up Country Camo ModelsCamo CVT Inlet Cover. Break Up Country Camo Models
-
40705009582 Camo CVT Inlet Cover. Break Up Country Camo ModelsCamo CVT Inlet Cover. Break Up Country Camo Models
-
50293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
50293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
50293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
60705003841 Support PlateSupport Plate
-
60705003841 Support PlateSupport Plate
-
60705003841 Support PlateSupport Plate
-
80517302785 ClipClip
-
80517302785 ClipClip
-
80517302785 ClipClip
-
85250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
85250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
85250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
95207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
95207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
95207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
100705009585 Camo Fixed Hood. Break Up Country Camo ModelsCamo Fixed Hood. Break Up Country Camo Models
-
100705009585 Camo Fixed Hood. Break Up Country Camo ModelsCamo Fixed Hood. Break Up Country Camo Models
-
100705008346 Brush Aluminum Fixed Hood. Brushed Aluminium ModelsBrush Aluminum Fixed Hood. Brushed Aluminium Models
-
105250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
105250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
105250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
110293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
110293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
110293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
120250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
120250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
120250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
140234062670 Flat Washer, StainlessFlat Washer, Stainless
-
140234062670 Flat Washer, StainlessFlat Washer, Stainless
-
140234062670 Flat Washer, StainlessFlat Washer, Stainless
-
160705009588 Camo Removable Hood. Break Up Country Camo ModelsCamo Removable Hood. Break Up Country Camo Models
-
160705009588 Camo Removable Hood. Break Up Country Camo ModelsCamo Removable Hood. Break Up Country Camo Models
-
160705012019 Painted Hood Black Darth Vader. Brushed Aluminium ModelsPainted Hood Black Darth Vader. Brushed Aluminium Models
-
180705005156 Oval WasherOval Washer
-
180705005156 Oval WasherOval Washer
-
180705005156 Oval WasherOval Washer
-
260705003629 Upper Facia, BlackUpper Facia, Black
-
260705003629 Upper Facia, BlackUpper Facia, Black
-
260705003629 Upper Facia, BlackUpper Facia, Black
-
280705004350 LH Upper Facia ProtectorLH Upper Facia Protector
-
280705004350 LH Upper Facia ProtectorLH Upper Facia Protector
-
280705004350 LH Upper Facia ProtectorLH Upper Facia Protector
-
300705004351 RH Upper Facia ProtectorRH Upper Facia Protector
-
300705004351 RH Upper Facia ProtectorRH Upper Facia Protector
-
300705004351 RH Upper Facia ProtectorRH Upper Facia Protector
-
320705004336 Center Upper Facia ProtectorCenter Upper Facia Protector
-
320705004336 Center Upper Facia ProtectorCenter Upper Facia Protector
-
320705004336 Center Upper Facia ProtectorCenter Upper Facia Protector
-
330517302785 ClipClip
-
330517302785 ClipClip
-
330517302785 ClipClip
-
340250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
340250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
340250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
360250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
360250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
360250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
380234082410 Flat Washer 8 mmFlat Washer 8 mm
-
380234082410 Flat Washer 8 mmFlat Washer 8 mm
-
380234082410 Flat Washer 8 mmFlat Washer 8 mm
-
400705008689 Black Front Facia. Package XTBlack Front Facia. Package XT
-
400705008689 Black Front Facia. Package XTBlack Front Facia. Package XT
-
400705008689 Black Front Facia. Package XTBlack Front Facia. Package XT
-
400705008689 Black Front FaciaBlack Front Facia
-
400705008689 Black Front FaciaBlack Front Facia
-
400705008689 Black Front FaciaBlack Front Facia
-
400705008689 Black Front Facia. Package LTDBlack Front Facia. Package LTD
-
400705008689 Black Front Facia. Package LTDBlack Front Facia. Package LTD
-
400705008689 Black Front Facia. Package LTDBlack Front Facia. Package LTD
-
422705004755 Lower Front Facia ProtectorLower Front Facia Protector
-
422705004755 Lower Front Facia ProtectorLower Front Facia Protector
-
422705004755 Lower Front Facia ProtectorLower Front Facia Protector
-
424705004819 LH Lower Rear Facia ProtectorLH Lower Rear Facia Protector
-
424705004819 LH Lower Rear Facia ProtectorLH Lower Rear Facia Protector
-
424705004819 LH Lower Rear Facia ProtectorLH Lower Rear Facia Protector
-
426705004820 RH Lower Rear Facia ProtectorRH Lower Rear Facia Protector
-
426705004820 RH Lower Rear Facia ProtectorRH Lower Rear Facia Protector
-
426705004820 RH Lower Rear Facia ProtectorRH Lower Rear Facia Protector
-
430517302785 ClipClip
-
430517302785 ClipClip
-
430517302785 ClipClip
-
440250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
440250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
440250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
460234062670 Flat Washer, StainlessFlat Washer, Stainless
-
460234062670 Flat Washer, StainlessFlat Washer, Stainless
-
460234062670 Flat Washer, StainlessFlat Washer, Stainless
-
465293450274 InsertInsert
-
465293450274 InsertInsert
-
465293450274 InsertInsert
-
470250000745 Torx Truss M/S M8 X30Torx Truss M/S M8 X30
-
470250000745 Torx Truss M/S M8 X30Torx Truss M/S M8 X30
-
470250000745 Torx Truss M/S M8 X30Torx Truss M/S M8 X30
-
480232081414 Hex. Nut M8Hex. Nut M8
-
480232081414 Hex. Nut M8Hex. Nut M8
-
480232081414 Hex. Nut M8Hex. Nut M8
-
485234081410 Flat Washer 8 mmFlat Washer 8 mm
-
485234081410 Flat Washer 8 mmFlat Washer 8 mm
-
485234081410 Flat Washer 8 mmFlat Washer 8 mm
-
490705003399 Bottom DeflectorBottom Deflector
-
490705003399 Bottom DeflectorBottom Deflector
-
490705003399 Bottom DeflectorBottom Deflector
-
495293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
495293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
495293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
500705002885 LH Front FaciaLH Front Facia
-
500705002885 LH Front FaciaLH Front Facia
-
500705002885 LH Front FaciaLH Front Facia
-
520705002886 RH Front FaciaRH Front Facia
-
520705002886 RH Front FaciaRH Front Facia
-
520705002886 RH Front FaciaRH Front Facia
-
525250000842 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
525250000842 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
525250000842 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
530232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
530232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
530232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
535234062670 Flat Washer, StainlessFlat Washer, Stainless
-
535234062670 Flat Washer, StainlessFlat Washer, Stainless
-
535234062670 Flat Washer, StainlessFlat Washer, Stainless
-
540705002891 Facia Front SupportFacia Front Support
-
540705002891 Facia Front SupportFacia Front Support
-
540705002891 Facia Front SupportFacia Front Support
-
545250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
545250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
545250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
550250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
550250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
550250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
560234062670 Flat Washer, StainlessFlat Washer, Stainless
-
560234062670 Flat Washer, StainlessFlat Washer, Stainless
-
560234062670 Flat Washer, StainlessFlat Washer, Stainless
-
580207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
580207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
580207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
600233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
600233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
600233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
620234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
620234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
620234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
680705011222 Amber ReflectorAmber Reflector
-
680705011222 Amber ReflectorAmber Reflector
-
680705011222 Amber ReflectorAmber Reflector
-
900250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
900250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
900250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
1500705008666 LH Black Upper Front Mudguard. Package XT, LTDLH Black Upper Front Mudguard. Package XT, LTD
-
1500705008666 LH Black Upper Front Mudguard. Package XT, LTDLH Black Upper Front Mudguard. Package XT, LTD
-
1500705008666 LH Black Upper Front Mudguard. Package XT, LTDLH Black Upper Front Mudguard. Package XT, LTD
-
1510705008667 RH Black Upper Front Mudguard. Package XT, LTDRH Black Upper Front Mudguard. Package XT, LTD
-
1510705008667 RH Black Upper Front Mudguard. Package XT, LTDRH Black Upper Front Mudguard. Package XT, LTD
-
1510705008667 RH Black Upper Front Mudguard. Package XT, LTDRH Black Upper Front Mudguard. Package XT, LTD
-
1520250000842 Torx Screw M6 X 30 Stainless. Package XT, LTDTorx Screw M6 X 30 Stainless. Package XT, LTD
-
1520250000842 Torx Screw M6 X 30 Stainless. Package XT, LTDTorx Screw M6 X 30 Stainless. Package XT, LTD
-
1520250000842 Torx Screw M6 X 30 Stainless. Package XT, LTDTorx Screw M6 X 30 Stainless. Package XT, LTD
-
1530234062670 Flat Washer, Stainless. Package XT, LTDFlat Washer, Stainless. Package XT, LTD
-
1530234062670 Flat Washer, Stainless. Package XT, LTDFlat Washer, Stainless. Package XT, LTD
-
1530234062670 Flat Washer, Stainless. Package XT, LTDFlat Washer, Stainless. Package XT, LTD
-
1540232561434 Elastic Stop Nut M6. Package XT, LTDElastic Stop Nut M6. Package XT, LTD
-
1540232561434 Elastic Stop Nut M6. Package XT, LTDElastic Stop Nut M6. Package XT, LTD
-
1540232561434 Elastic Stop Nut M6. Package XT, LTDElastic Stop Nut M6. Package XT, LTD
-
1810705002895 LH DeflectorLH Deflector
-
1810705002895 LH DeflectorLH Deflector
-
1810705002895 LH DeflectorLH Deflector
-
1810705005113 LH Deflector. Package XT, LTDLH Deflector. Package XT, LTD
-
1810705005113 LH Deflector. Package XT, LTDLH Deflector. Package XT, LTD
-
1810705005113 LH Deflector. Package XT, LTDLH Deflector. Package XT, LTD
-
1820705002894 RH DeflectorRH Deflector
-
1820705002894 RH DeflectorRH Deflector
-
1820705002894 RH DeflectorRH Deflector
-
1830293720053 GrommetGrommet
-
1830293720053 GrommetGrommet
-
1830293720053 GrommetGrommet
-
1840517303439 KnobKnob
-
1840517303439 KnobKnob
-
1840517303439 KnobKnob
-
1850250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
1850250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
1850250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
1860708000759 Rubber StopperRubber Stopper
-
1860708000759 Rubber StopperRubber Stopper
-
1860708000759 Rubber StopperRubber Stopper
Все узлы модели:
- 00- Model Numbers
- 01- Cooling Commander - Max
- 01- Crankcase - 1000R
- 01- Crankshaft, Piston and Cylinder - 1000R
- 01- Cylinder Head, Front - 1000R
- 01- Cylinder Head, Rear - 1000R
- 01- Engine Commander MAX - 1000 EFI
- 01- Engine Cooling - 1000R
- 01- Engine Lubrication - 1000R
- 01- Exhaust Commander
- 01- Gear Box And Components 420686562
- 02- Air Intake Commander
- 02- Air Intake Manifold and Throttle Body - 1000R
- 02- Fuel - Commander And Maverick
- 03- Magneto and Electric Starter - 1000R
- 05- Gear Box 1 - 420686562
- 05- Gear Box 2 - 420686562
- 05- Transmission - 1000R
- 06- Brakes Commander
- 07- Front Drive - Commander
- 07- Front Suspension Commander
- 07- Shocks Commander - Package DPS
- 07- Shocks Commander - Package LTD
- 07- Shocks Commander - Package XT
- 07- Steering Commander - All Models Except Package STD
- 07- Wheels And Tires Commander - Package DPS
- 07- Wheels And Tires Commander - Package LTD
- 07- Wheels And Tires Commander - Package XT
- 08- Drive Shaft - 1000R
- 08- Rear Drive Commander
- 08- Rear Suspension Commander
- 09- Body Accessories - Commander MAX - Package LTD
- 09- Body And Accessories Commander MAX - Central Brushed Aluminium
- 09- Body And Accessories Commander MAX - Central Midnight Blue Models
- 09- Body And Accessories Commander MAX - Central Squadron Grean Models
- 09- Body And Accessories Commander MAX - Front Brushed Aluminium Models
- 09- Body And Accessories Commander MAX - Front Midnight Blue Models
- 09- Body And Accessories Commander MAX - Front Squadron Green Models
- • 09- Body Front Part Commander MAX - Break Up Country Camo Models
- 09- Cab Interior Commander MAX
- 09- Decals Commander MAX 1000R - Package DPS
- 09- Decals Commander MAX 1000R - Package LTD
- 09- Decals Commander MAX 1000R - Package XT
- 09- Frame Commander MAX
- 09- Mirrors And Tools Commander
- 09- Rear Cargo Box Commander
- 09- Seat Commander MAX
- 10- Electrical Harness Commander 1000R
- 10- Electrical System Commander - All Models Except LTD
- 10- Electrical System Commander - Package LTD
- 10- Engine Harness and Electronic Module - Commander MAX 1000R
- 10- Main Harness - 710005662 - Commander MAX
