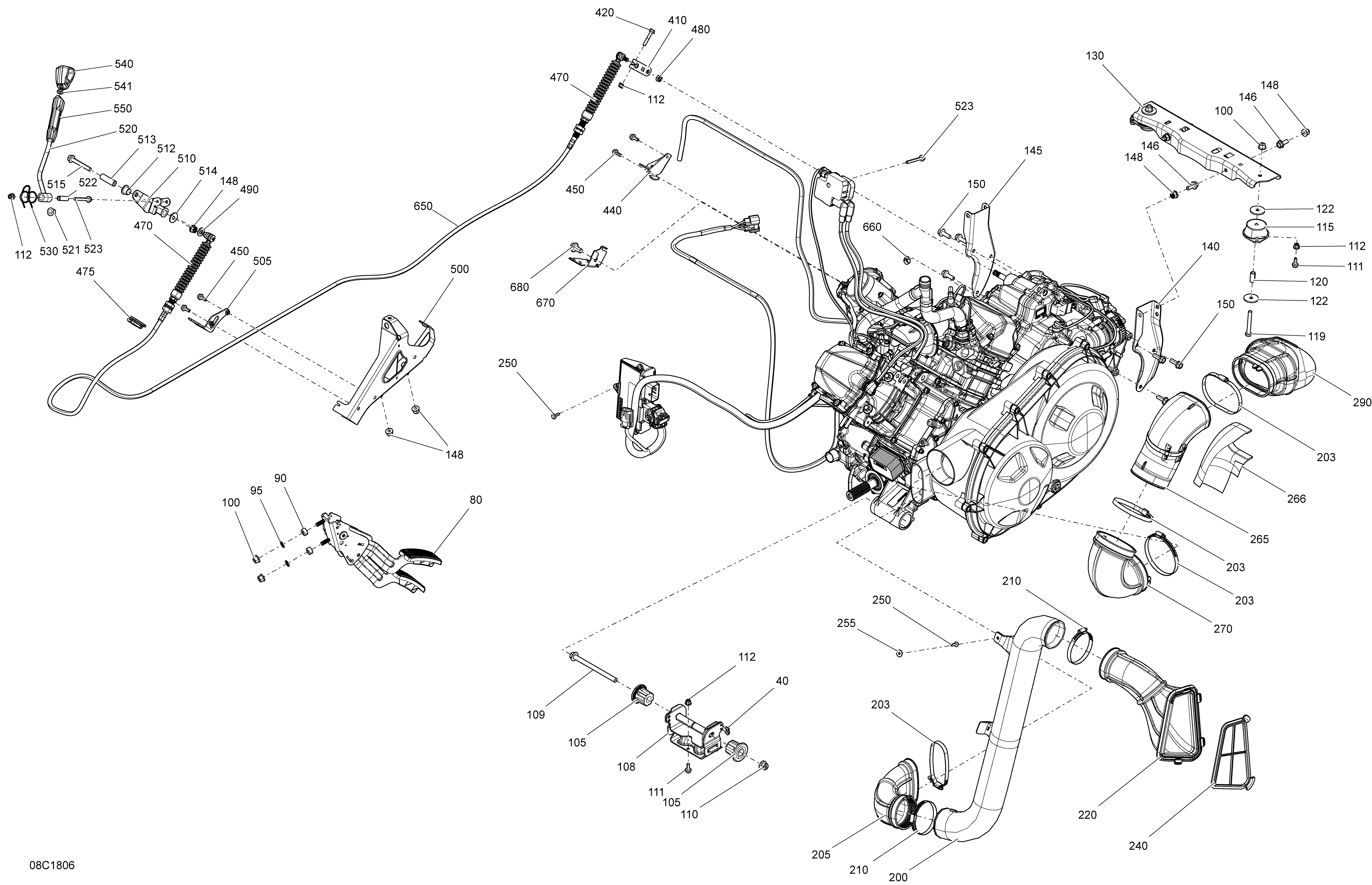

01- Engine Defender Non MAX HD8, HD10 для BRP 2- Defender HD8 - 2018
-
№АртикулНазвание
-
12293650214 Norma Spring Clamp. Not ShownNorma Spring Clamp. Not Shown
-
40390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
80707001599 Accelerator PedalAccelerator Pedal
-
90707000848 BushingBushing
-
95250100031 Push NutPush Nut
-
100233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
105707001169 DamperDamper
-
108707001902 Rubber MountRubber Mount
-
109230603546 Hex. Flanged Screw M10 X 135Hex. Flanged Screw M10 X 135
-
110233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
111207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
112233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
115707001867 Rubber MountRubber Mount
-
116207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
117233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
119207186044 Hex. screw M8 x 60Hex. screw M8 x 60
-
120707001908 BushingBushing
-
122250200158 Flat Washer M8Flat Washer M8
-
125233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
130707002208 Bracket-LinkBracket-Link
-
140707001610 LH Rear Engine SupportLH Rear Engine Support
-
145707001611 RH Rear Engine SupportRH Rear Engine Support
-
146207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
148233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
150207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
200706600234 DuctDuct
-
203514052983 Norma Gear ClampNorma Gear Clamp
-
205706600249 Flexible AdapterFlexible Adapter
-
210293650091 Norma ClampNorma Clamp
-
220706600084 Flexible AdaptorFlexible Adaptor
-
240706600156 CVT FilterCVT Filter
-
250250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
255250200025 Washer M5Washer M5
-
265706600065 Outlet Front DuctOutlet Front Duct
-
266706600133 Heat ShieldHeat Shield
-
270706600108 Flexible AdaptorFlexible Adaptor
-
290706600125 Air DeflectorAir Deflector
-
410707000911 LeverLever
-
420207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
430233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
440707001614 Cable SupportCable Support
-
450207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
470707001468 Shifting CableShifting Cable
-
475293720109 GrommetGrommet
-
480232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
490234001410 Flat Washer 10 mmFlat Washer 10 mm
-
500707002003 Shifter BraketShifter Braket
-
501250200158 Flat Washer M8Flat Washer M8
-
502233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
503234082410 Flat Washer 8 mm. Not ShownFlat Washer 8 mm. Not Shown
-
505707002038 Cable SupportCable Support
-
506207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
510707002005 Lower Shifter ArmLower Shifter Arm
-
512293900001 Venturi BushingVenturi Bushing
-
513707001863 Internal BushingInternal Bushing
-
514234082410 Flat Washer 8 mmFlat Washer 8 mm
-
515207686044 Hex. Flanged Screw M8 x 60Hex. Flanged Screw M8 x 60
-
516233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
520707002230 Welded ArmWelded Arm
-
521707000869 Flanged BushingFlanged Bushing
-
522707001376 BushingBushing
-
523207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
524233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
530707000750 Lever Arm SpringLever Arm Spring
-
540707000965 Lever ButtonLever Button
-
541232180491 Hex. Jam Nut M8Hex. Jam Nut M8
-
550707001899 Shifting Arm CoverShifting Arm Cover
-
650415079800 Hose 1/4''Hose 1/4''
-
660293650042 Oetiker ClampOetiker Clamp
-
670710004561 Cable SupportCable Support
-
680207502044 Flanged Hex Screw M10 X 20Flanged Hex Screw M10 X 20
-
1410243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
1420207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
