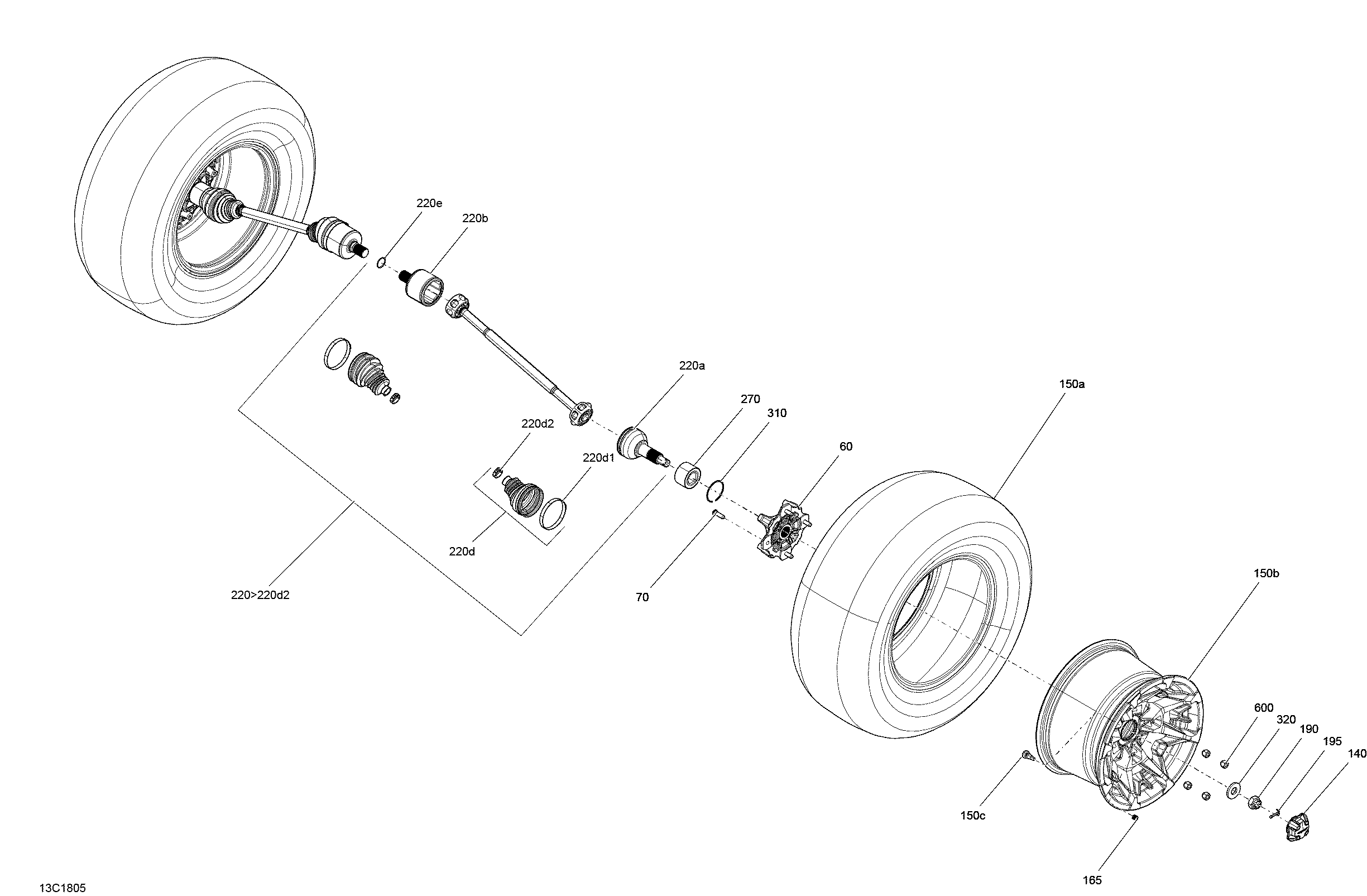

08- Rear Drive Defender HD8, HD10 для BRP 2- Defender HD8 - 2018
-
№АртикулНазвание
-
60705502338 Wheel HubWheel Hub
-
70250300055 Wheel Stud M10 X 1.25Wheel Stud M10 X 1.25
-
126710003168 Christmas Tree Tie-Rap 200 mm. Not ShownChristmas Tree Tie-Rap 200 mm. Not Shown
-
127414115200 Tie-Rap 180 mm. Not ShownTie-Rap 180 mm. Not Shown
-
140705401541 Wheel CapWheel Cap
-
165293000110 Valve CapValve Cap
-
170250100184 Black Wheel Nut M10 X 1.25. Package CABBlack Wheel Nut M10 X 1.25. Package CAB
-
170250100184 Black Wheel Nut M10 X 1.25. Package HunterBlack Wheel Nut M10 X 1.25. Package Hunter
-
190250100193 Castle Nut M20Castle Nut M20
-
195250400084 Cotter PinCotter Pin
-
220705502451 CV Joint. Package XT. Includes 220 to 220d2CV Joint. Package XT. Includes 220 to 220d2
-
220705502451 CV Joint. Package STD. Includes 220 to 220d2CV Joint. Package STD. Includes 220 to 220d2
-
220705502451 CV Joint. Package Hunter. Includes 220 to 220d2CV Joint. Package Hunter. Includes 220 to 220d2
-
220705502451 CV Joint. Engine HD8 Package DPS. Includes 220 to 220d2CV Joint. Engine HD8 Package DPS. Includes 220 to 220d2
-
220705502451 CV Joint. Engine HD8 Package BASE. Includes 220 to 220d2CV Joint. Engine HD8 Package BASE. Includes 220 to 220d2
-
220705502451 CV Joint. Engine HD10 Package DPS. Includes 220 to 220d2CV Joint. Engine HD10 Package DPS. Includes 220 to 220d2
-
220705502451 CV Joint. Engine HD10 Package BASE. Includes 220 to 220d2CV Joint. Engine HD10 Package BASE. Includes 220 to 220d2
-
220705502642 Half Shaft. Package CAB. Includes 220 to 220d2Half Shaft. Package CAB. Includes 220 to 220d2
-
220a715900429 CV JointCV Joint
-
220b715900444 Plunging JointPlunging Joint
-
220c705501781 CirclipCirclip
-
220d705501864 Boot KitBoot Kit
-
220d1715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
220d2715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
220e715900579 O-RingO-Ring
-
270293350118 Cone BearingCone Bearing
-
310293370019 CirclipCirclip
-
320250200170 Conical Spring Washer M20Conical Spring Washer M20
-
600250100042 Steel Wheel NutSteel Wheel Nut
-
600250100184 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
600250100185 Chrome Wheel Nut M10 X 1.25Chrome Wheel Nut M10 X 1.25
