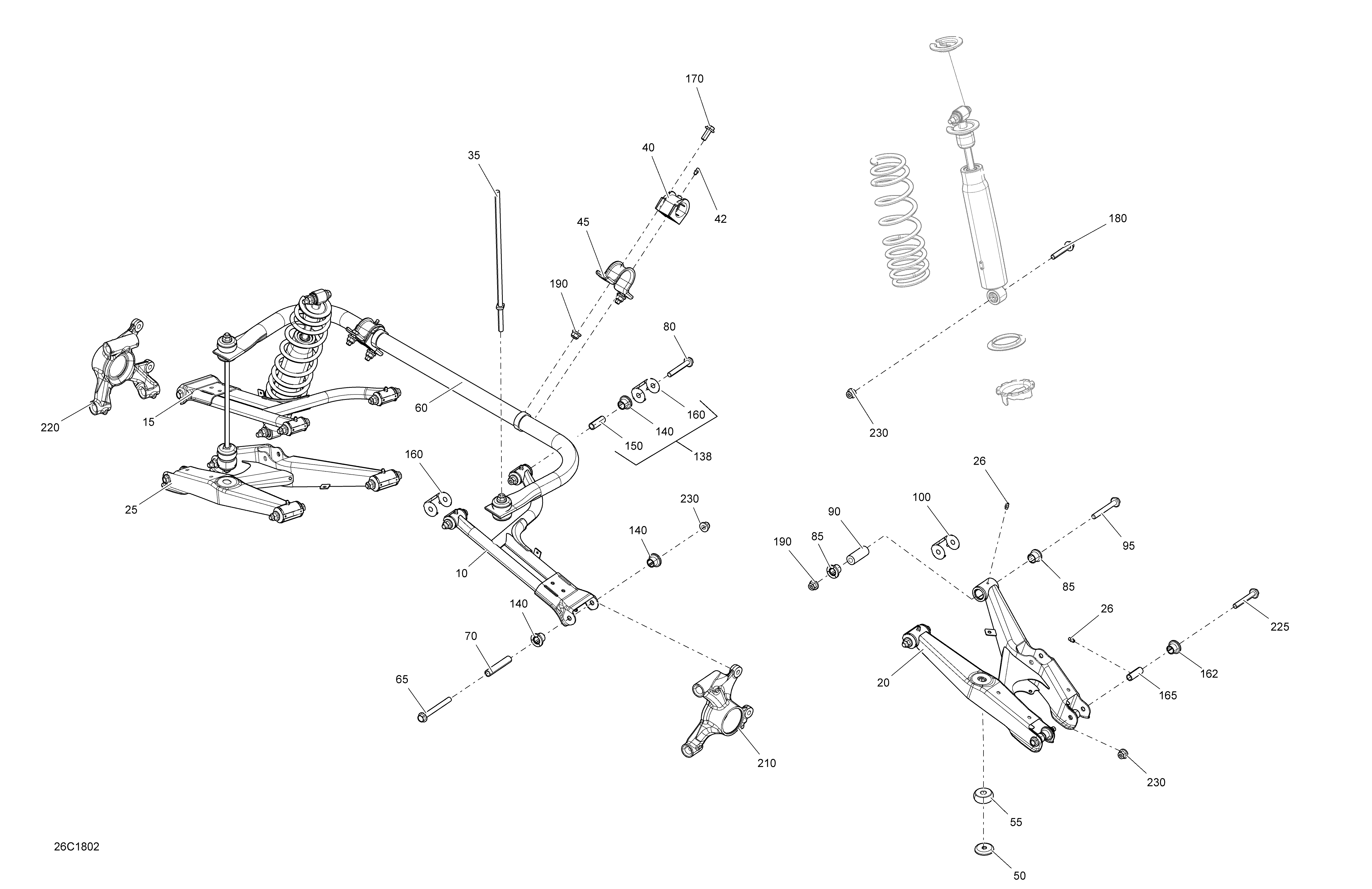

08- Rear Suspension - XTP Package для BRP 4- Defender HD10 - XTP - 2018
-
№АртикулНазвание
-
10706002874 LH Rear Upper Suspension ArmLH Rear Upper Suspension Arm
-
15706002875 RH Rear Upper Suspension ArmRH Rear Upper Suspension Arm
-
20706003074 LH Rear Lower Suspension ArmLH Rear Lower Suspension Arm
-
25706003075 RH Rear Lower Suspension ArmRH Rear Lower Suspension Arm
-
26408200700 Grease FittingGrease Fitting
-
35706001898 Torsion Bar LinkTorsion Bar Link
-
40706001896 CushionCushion
-
42408200700 Grease FittingGrease Fitting
-
45706002592 ClampClamp
-
50706002027 Linkage CupLinkage Cup
-
55706002028 Linkage BushingLinkage Bushing
-
60706002076 Sway Bar Ass'ySway Bar Ass'y
-
65230600046 Screw-Hex.Flange DIN.6921Screw-Hex.Flange DIN.6921
-
70706202197 Upper BushingUpper Bushing
-
80207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
85706201659 CushionCushion
-
90706201590 SleeveSleeve
-
95207608046 Hex Flanged Screw M10 X 80Hex Flanged Screw M10 X 80
-
100706201660 Wear PlateWear Plate
-
138703500875 Bushing Kit. Includes 140, 150 and 160Bushing Kit. Includes 140, 150 and 160
-
162706202088 CushionCushion
-
165706202133 Inner BushingInner Bushing
-
170207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
180207606046 Hex. Flanged Screw M10 X 60Hex. Flanged Screw M10 X 60
-
190233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
210706002809 Rear Left Machined KnuckleRear Left Machined Knuckle
-
220706002811 Rear Right Machined KnuckleRear Right Machined Knuckle
-
225207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
230233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
