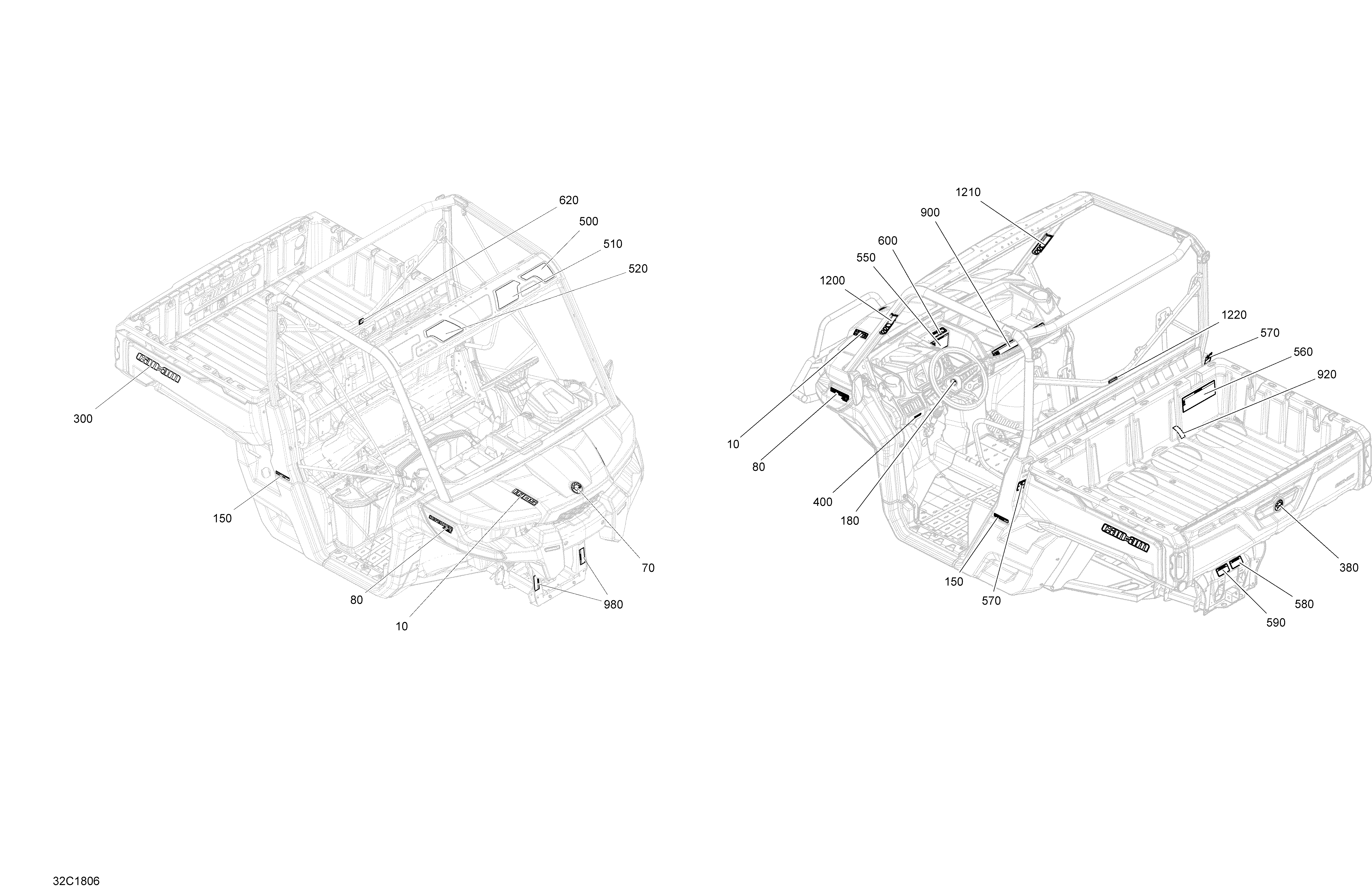

09- Decals Defender Non MAX HD10 Package XTP для BRP 4- Defender HD10 - XTP - 2018
-
№АртикулНазвание
-
10704906516 Hood Decal HD10Hood Decal HD10
-
70516006888 BRP Logo, 68 mmBRP Logo, 68 mm
-
80704906530 Lateral Decal Defender XTPLateral Decal Defender XTP
-
110704906535 Decal Left CoverDecal Left Cover
-
115704906536 Decal Hood RightDecal Hood Right
-
150704905524 Decal, Rotax PowerDecal, Rotax Power
-
180704904274 CAN-AM LogoCAN-AM Logo
-
300704906531 CAN-AM DecalCAN-AM Decal
-
380516006888 BRP Logo, 68 mmBRP Logo, 68 mm
-
390516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
400704905637 Decal DPSDecal DPS
-
500704905476 Warning Label Operator's GuideWarning Label Operator's Guide
-
510704905506 Warning Label Operator's GuideWarning Label Operator's Guide
-
520704905487 Warning Label PassengerWarning Label Passenger
-
550704905913 Warning Label DashWarning Label Dash
-
560704906947 Warning Label Cargo LoadWarning Label Cargo Load
-
570704905488 Warning Label InjuryWarning Label Injury
-
580704905479 Warning Label TowingWarning Label Towing
-
590704905481 Warning Label TrailerWarning Label Trailer
-
620704906029 Label SymbolLabel Symbol
-
900704905492 Inter. Multilanguage Label. Except North AmericaInter. Multilanguage Label. Except North America
-
920707800373 Decal, Air Filter MaintenanceDecal, Air Filter Maintenance
-
980704905495 Warning Label Ground And DPSWarning Label Ground And DPS
-
1200704906768 Warning Label Roll OverWarning Label Roll Over
-
1210704906769 Warning Label Roll OverWarning Label Roll Over
-
1220704905500 Warning Label CageWarning Label Cage
