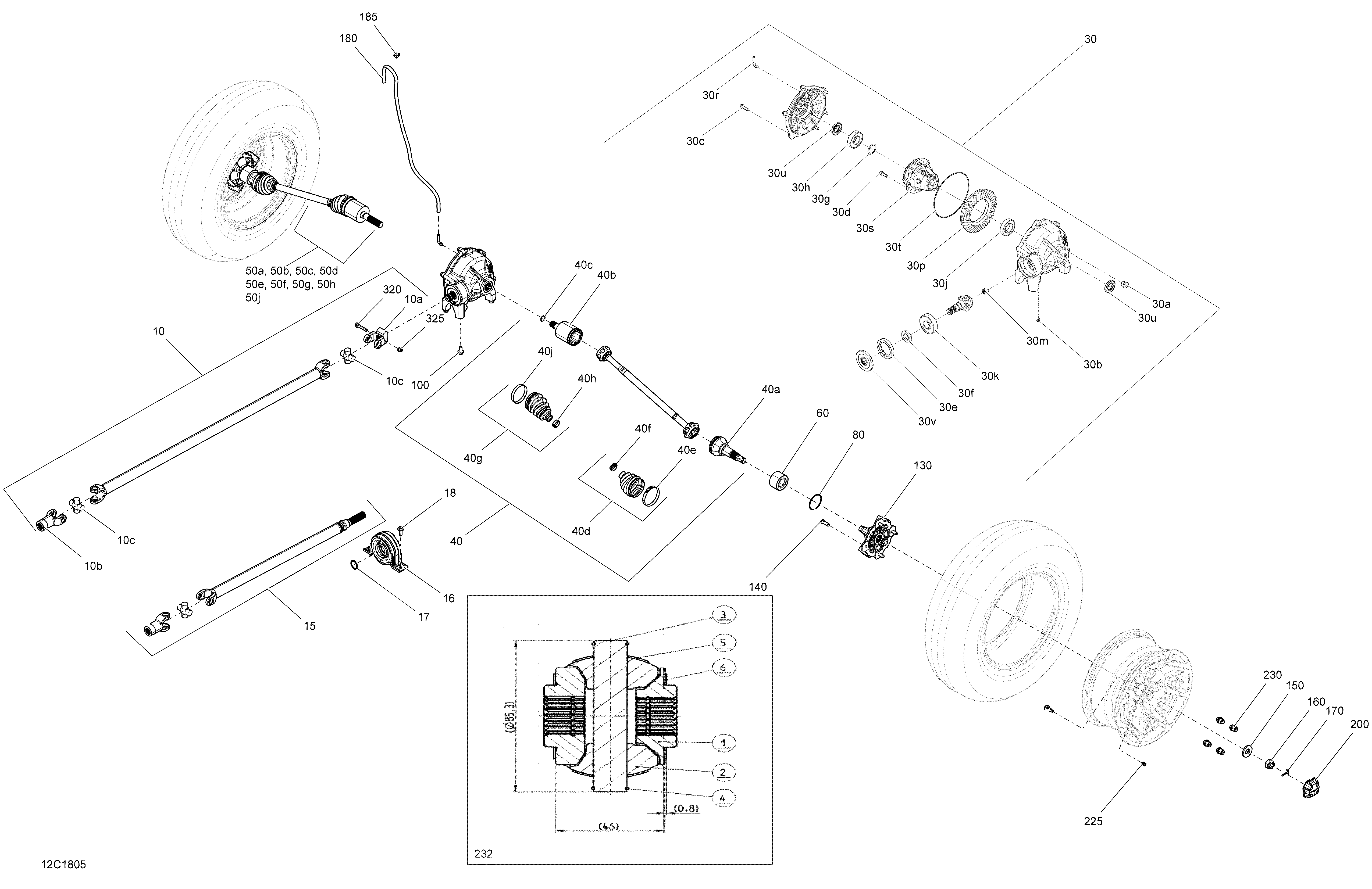

07- Front Drive - Lone Star Edition для BRP 8- Defender MAX - Lone Star Edition - 2018
-
№АртикулНазвание
-
10705402125 Axle Ass'y. Includes 10 to 10cAxle Ass'y. Includes 10 to 10c
-
10a715900402 J-Joint Cross KitJ-Joint Cross Kit
-
10a715900402 J-Joint Cross KitJ-Joint Cross Kit
-
10a715900402 J-Joint Cross KitJ-Joint Cross Kit
-
10b715900400 Fixed YokeFixed Yoke
-
10b715900400 Fixed YokeFixed Yoke
-
10b715900400 Fixed YokeFixed Yoke
-
10c715900401 YokeYoke
-
10c715900401 YokeYoke
-
10c715900401 YokeYoke
-
15705402045 Axle Ass'yAxle Ass'y
-
16705401938 BearingBearing
-
17293370098 Snap RingSnap Ring
-
18207502546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
30705402028 Differential. Includes 30 to 30vDifferential. Includes 30 to 30v
-
30a705501889 Fill Level PlugFill Level Plug
-
30b705501885 Drain PlugDrain Plug
-
30c705501886 ScrewScrew
-
30d705401818 ScrewScrew
-
30e705401819 NutNut
-
30f705401820 NutNut
-
30g705401604 ShimShim
-
30h705401606 Ball BearingBall Bearing
-
30j705401934 Ball BearingBall Bearing
-
30k705401821 Ball BearingBall Bearing
-
30m705401607 Needle BearingNeedle Bearing
-
30n705401667 Front CoverFront Cover
-
30p705401822 36Th Gear36Th Gear
-
30q705401933 Pinion 10 th.Pinion 10 th.
-
30r705401935 Vent ValveVent Valve
-
30s705401886 DifferentialDifferential
-
30s705401887 DifferentialDifferential
-
30t705501881 Oil SealOil Seal
-
30u705401836 Oil SealOil Seal
-
30v705401827 Oil SealOil Seal
-
40705402170 Half Shaft RH. Includes 40 to 40jHalf Shaft RH. Includes 40 to 40j
-
40a715900440 CV JointCV Joint
-
40b715900441 Plunging Joint RHPlunging Joint RH
-
40c705401349 Circlip JointCirclip Joint
-
40d705401345 Boot Kit, Wheel SideBoot Kit, Wheel Side
-
40e715900282 Oetiker Clamp, LargeOetiker Clamp, Large
-
40f715900283 Oetiker Clamp, SmallOetiker Clamp, Small
-
40g705401355 Boot Kit, Differential SideBoot Kit, Differential Side
-
40h715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
40j715900262 Oetiker Clamp, LargeOetiker Clamp, Large
-
50705402171 Half Shaft LH. Includes 50 to 50jHalf Shaft LH. Includes 50 to 50j
-
50a715900440 CV JointCV Joint
-
50b715900442 Plunging Joint LHPlunging Joint LH
-
50c705401349 Circlip JointCirclip Joint
-
50d705401345 Boot Kit, Wheel SideBoot Kit, Wheel Side
-
50e715900282 Oetiker Clamp, LargeOetiker Clamp, Large
-
50f715900283 Oetiker Clamp, SmallOetiker Clamp, Small
-
50g705401355 Boot Kit, Differential SideBoot Kit, Differential Side
-
50h715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
50j715900262 Oetiker Clamp, LargeOetiker Clamp, Large
-
60293350118 Cone BearingCone Bearing
-
80293370019 CirclipCirclip
-
100207502046 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
-
130705502338 Wheel HubWheel Hub
-
140250300055 Wheel Stud M10 X 1.25Wheel Stud M10 X 1.25
-
150250200170 Conical Spring Washer M20Conical Spring Washer M20
-
160250100193 Castle Nut M20Castle Nut M20
-
170250400084 Cotter PinCotter Pin
-
180415080200 Hose, PolyurethaneHose, Polyurethane
-
185414227300 ClipClip
-
225293000110 Valve CapValve Cap
-
230250100184 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
232703501007 Differential Repair KitDifferential Repair Kit
-
320250000952 Hex. Flanged Screw M8 X 42Hex. Flanged Screw M8 X 42
-
325233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
