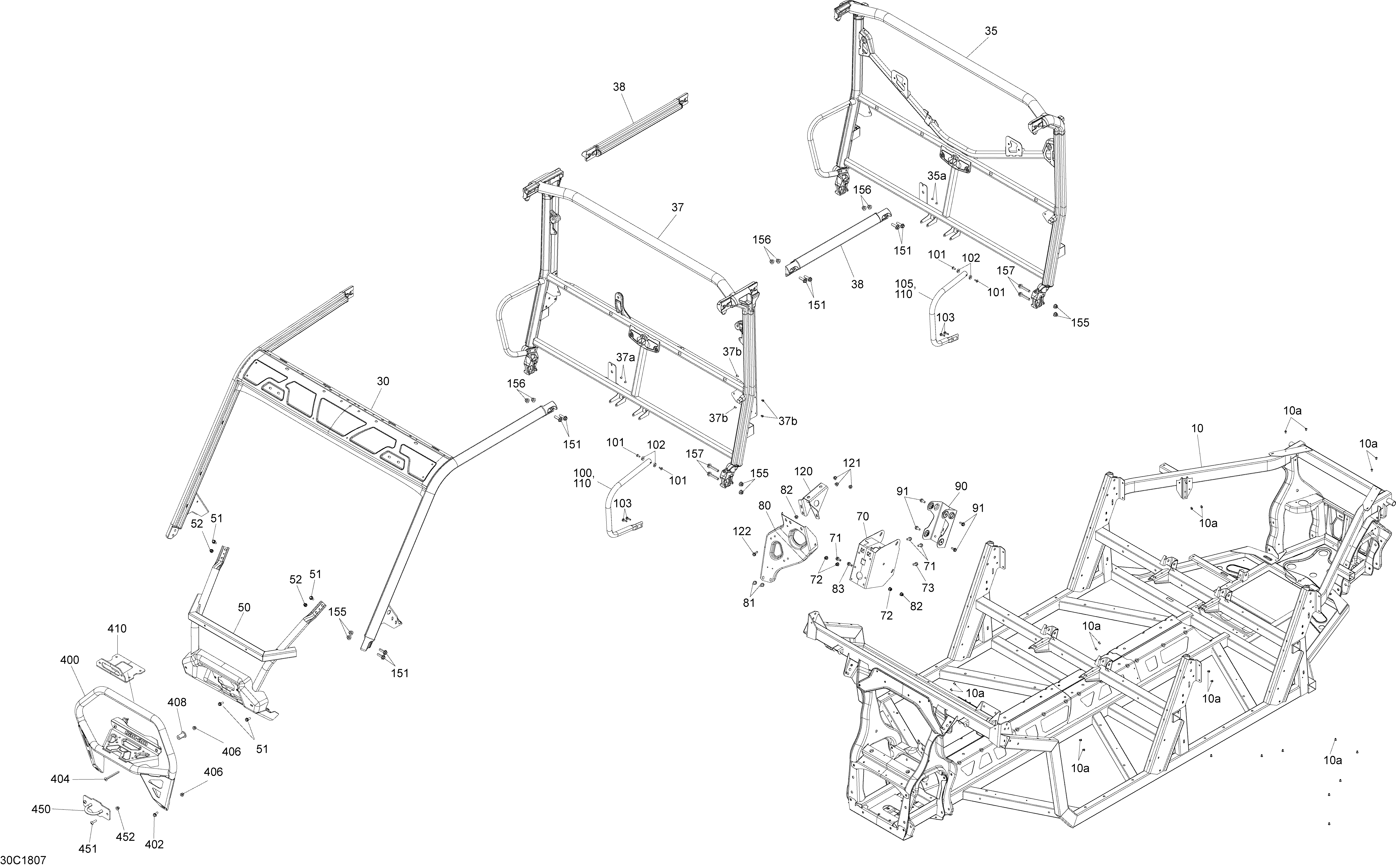

09- Frame Lone Star Edition для BRP 8- Defender MAX - Lone Star Edition - 2018
-
№АртикулНазвание
-
10715003764 Frame Kit Black. Includes 10 to 10aFrame Kit Black. Includes 10 to 10a
-
10a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
30715004028 Front Cage Profile KitFront Cage Profile Kit
-
30715004231 Front Cage Profile KitFront Cage Profile Kit
-
35715003569 Rear Cage Profile Kit. Includes 35 to 35aRear Cage Profile Kit. Includes 35 to 35a
-
35a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
35715003569 Rear Cage Profile KitRear Cage Profile Kit
-
37715003770 Mid Cage Kit MAX. Includes 37 to 37aMid Cage Kit MAX. Includes 37 to 37a
-
37a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
37b390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
38705205401 Cage Extension MAXCage Extension MAX
-
50705203999 Front BumperFront Bumper
-
51207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
52233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
70705206316 PlatePlate
-
71207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
72233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
73207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
81207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
82233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
83207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
90705204429 Steering SupportSteering Support
-
91207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
100705204594 LH Protector TubeLH Protector Tube
-
101250000789 Torx Truss M6X14Torx Truss M6X14
-
102705202223 Offset WasherOffset Washer
-
103207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
105705204590 Side Protect LHSide Protect LH
-
110705204592 RH Protector TubeRH Protector Tube
-
120705205171 Shifting Module SupportShifting Module Support
-
121233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
122207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
400715004405 XMR Front BumperXMR Front Bumper
-
402207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
404250000806 Torx Truss M8 X 90Torx Truss M8 X 90
-
406233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
408705206398 Bumper SpacerBumper Spacer
-
410705206371 Winch SupportWinch Support
-
450705206590 Painted Front AttachmentPainted Front Attachment
-
451250000886 Torx Screw M8 X 30Torx Screw M8 X 30
-
452233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
