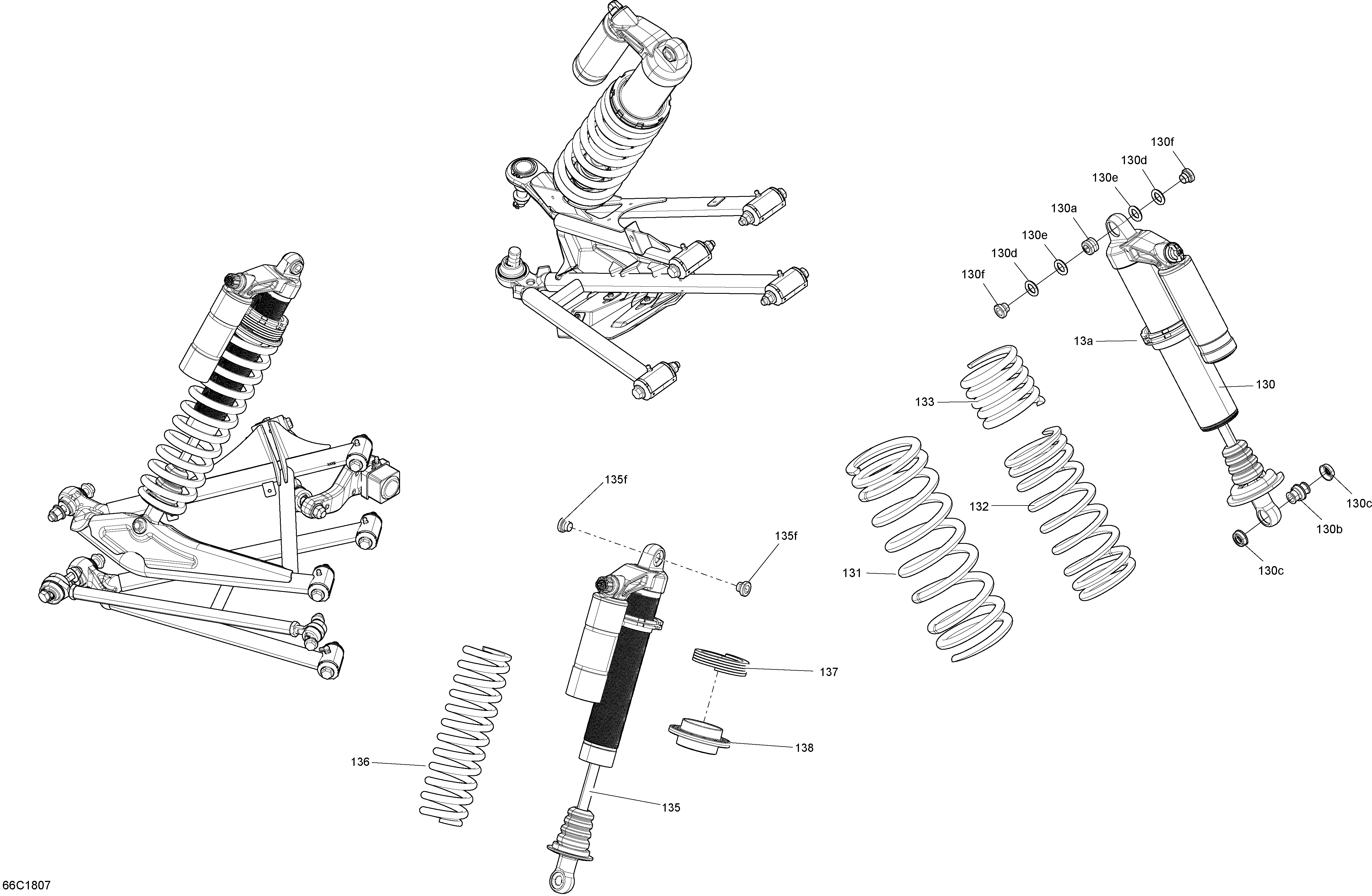

07- Shocks Maverick MAX - Package XMR для BRP 2- Maverick MAX - 2018
-
№АртикулНазвание
-
130706202692 Front Shock. Includes 130 to 130fFront Shock. Includes 130 to 130f
-
130a715900329 Spherical BearingSpherical Bearing
-
130b715900330 Spherical BearingSpherical Bearing
-
130c715900331 ProtectorProtector
-
130d715900268 O-Ring BushingO-Ring Bushing
-
130e715900252 Retaining RingRetaining Ring
-
130f715900267 Internal BushingInternal Bushing
-
132706202975 Yellow Sun Front SpringYellow Sun Front Spring
-
133706002772 SpringSpring
-
134706001710 Spring SpacerSpring Spacer
-
135706002558 Rear Shock. Includes 135 to 135fRear Shock. Includes 135 to 135f
-
135a715900329 Spherical Bearing. Not shownSpherical Bearing. Not shown
-
135b715900330 Spherical Bearing. Not shownSpherical Bearing. Not shown
-
135c715900331 Protector. Not shownProtector. Not shown
-
135d715900268 O-Ring Bushing. Not shownO-Ring Bushing. Not shown
-
135e715900252 Retaining Ring. Not shownRetaining Ring. Not shown
-
135f715900267 Internal BushingInternal Bushing
-
136706002771 Yellow Sun. SpringYellow Sun. Spring
-
137706002772 SpringSpring
-
138706001710 Spring SpacerSpring Spacer
