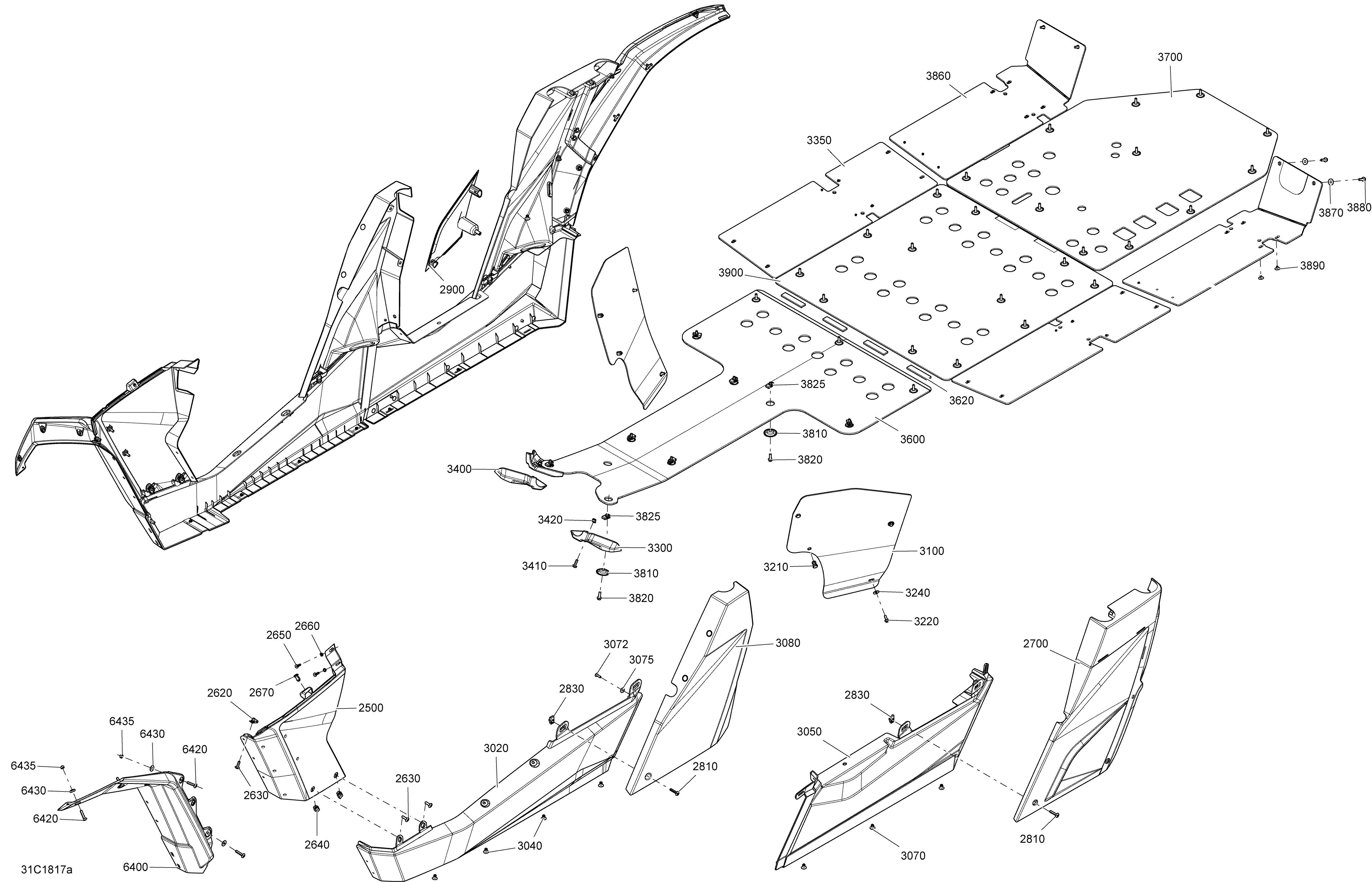

09- Body Central Part Maverick MAX - Package DPS для BRP 2- Maverick MAX - 2018
-
№АртикулНазвание
-
2500705007358 White LH Front Lateral PannelWhite LH Front Lateral Pannel
-
2500705007359 White RH Front Lateral PannelWhite RH Front Lateral Pannel
-
2620250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
2630250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2640250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
2650250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
2660234051410 Flat Washer M5Flat Washer M5
-
2670293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
2700705007362 White LH Rear Lateral PanelWhite LH Rear Lateral Panel
-
2700705008458 White RH Rear Lateral PanelWhite RH Rear Lateral Panel
-
2810250000843 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
2820250000748 Torx Screw M6 X 45Torx Screw M6 X 45
-
2830250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
2900705007419 White RH Panel CoverWhite RH Panel Cover
-
3020705005423 Black LH Lower PanelBlack LH Lower Panel
-
3020705005424 Black RH Lower PanelBlack RH Lower Panel
-
3040293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3050705005425 Black LH Rear Lower PanelBlack LH Rear Lower Panel
-
3050705005426 Black RH Rear Lower PanelBlack RH Rear Lower Panel
-
3070293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3072250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
3075250200025 Washer M5Washer M5
-
3080705007421 White LH Center Cage PanelWhite LH Center Cage Panel
-
3080705007422 White RH Center Cage PanelWhite RH Center Cage Panel
-
3100705007827 Inner FenderInner Fender
-
3210293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
3220210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
3240234062670 Flat Washer, StainlessFlat Washer, Stainless
-
3300705006038 LH Bumper Skid CapLH Bumper Skid Cap
-
3350705008421 Side Protector PlateSide Protector Plate
-
3400705006039 RH Bumper Skid CapRH Bumper Skid Cap
-
3410250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
3420233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
3600705005798 Front Skid PlateFront Skid Plate
-
3620291001932 PadPad
-
3700705005480 Rear Skid PlateRear Skid Plate
-
3810705007171 CupCup
-
3820210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
3825250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
3860705007038 RH Lateral Skid PlateRH Lateral Skid Plate
-
3870250200097 Flat WasherFlat Washer
-
3880210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
3890293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3900705009447 Skid PlateSkid Plate
