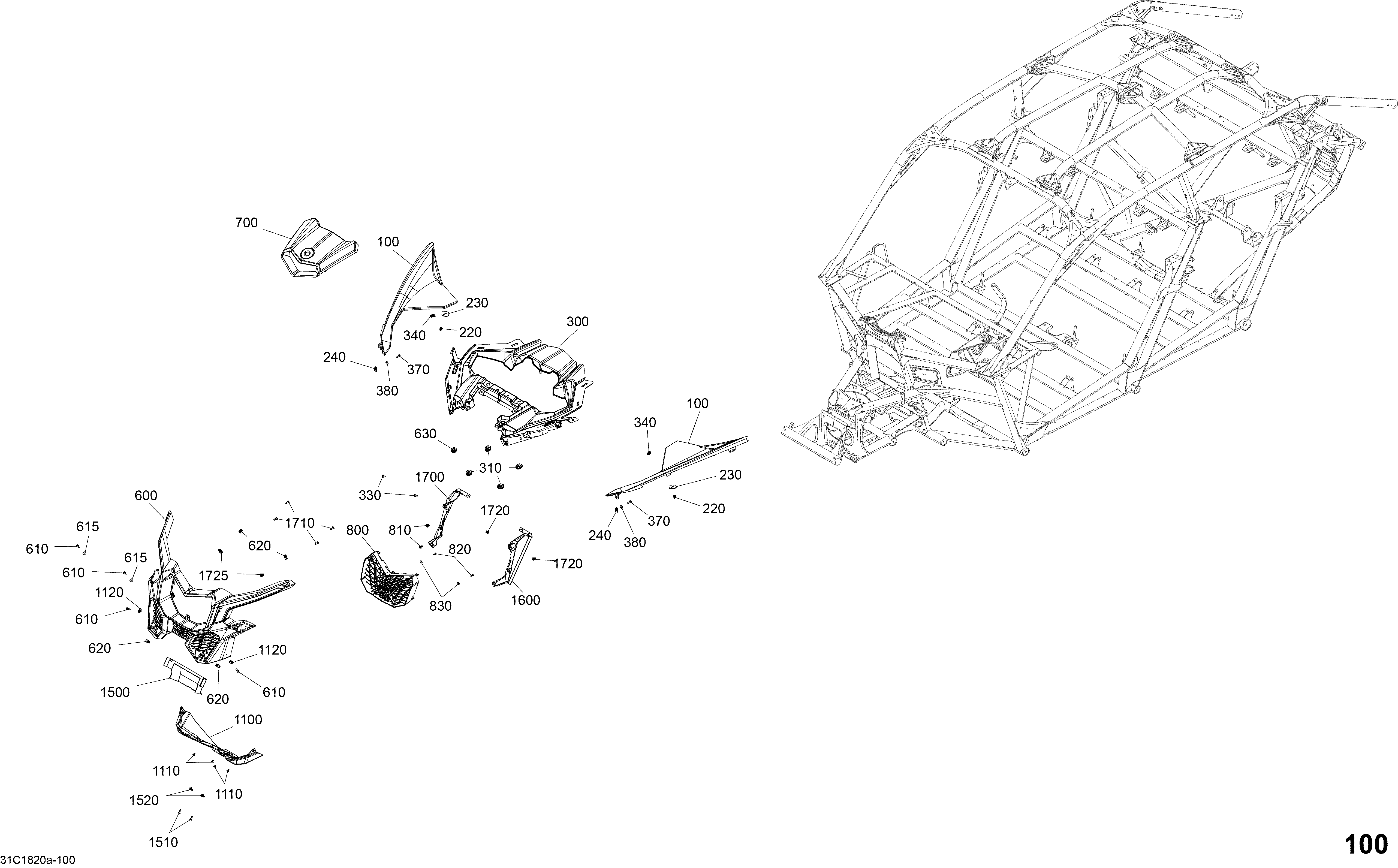

09- Body Parts - Hyper Silver - Package STD - Front Section для BRP 9- Maverick X3 MAX Turbo - STD - 2018
-
№АртикулНазвание
-
100705012463 Silver LH Front FenderSilver LH Front Fender
-
100705012464 Silver RH Front FenderSilver RH Front Fender
-
220517302785 ClipClip
-
230705003841 Support PlateSupport Plate
-
240250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
300705010671 Central HoodCentral Hood
-
310705010718 GrommetGrommet
-
330250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
340250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
370250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
380234062670 Flat Washer, StainlessFlat Washer, Stainless
-
600705009508 Front FaciaFront Facia
-
610250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
615234062670 Flat Washer, StainlessFlat Washer, Stainless
-
620250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
630517303756 GrommetGrommet
-
700705012465 Sunburst Yellow Facia CoverSunburst Yellow Facia Cover
-
800705012694 Front Radiator GrillFront Radiator Grill
-
810517302785 ClipClip
-
820250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
830250200025 Washer M5Washer M5
-
1100705009978 Front DeflectorFront Deflector
-
1110293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
1500705010742 Lower Radiator deflectorLower Radiator deflector
-
1510250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1520250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
1600705010626 LH Radiator deflectorLH Radiator deflector
-
1700705010627 RH Radiator deflectorRH Radiator deflector
-
1710250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1720517302785 ClipClip
-
1725250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
