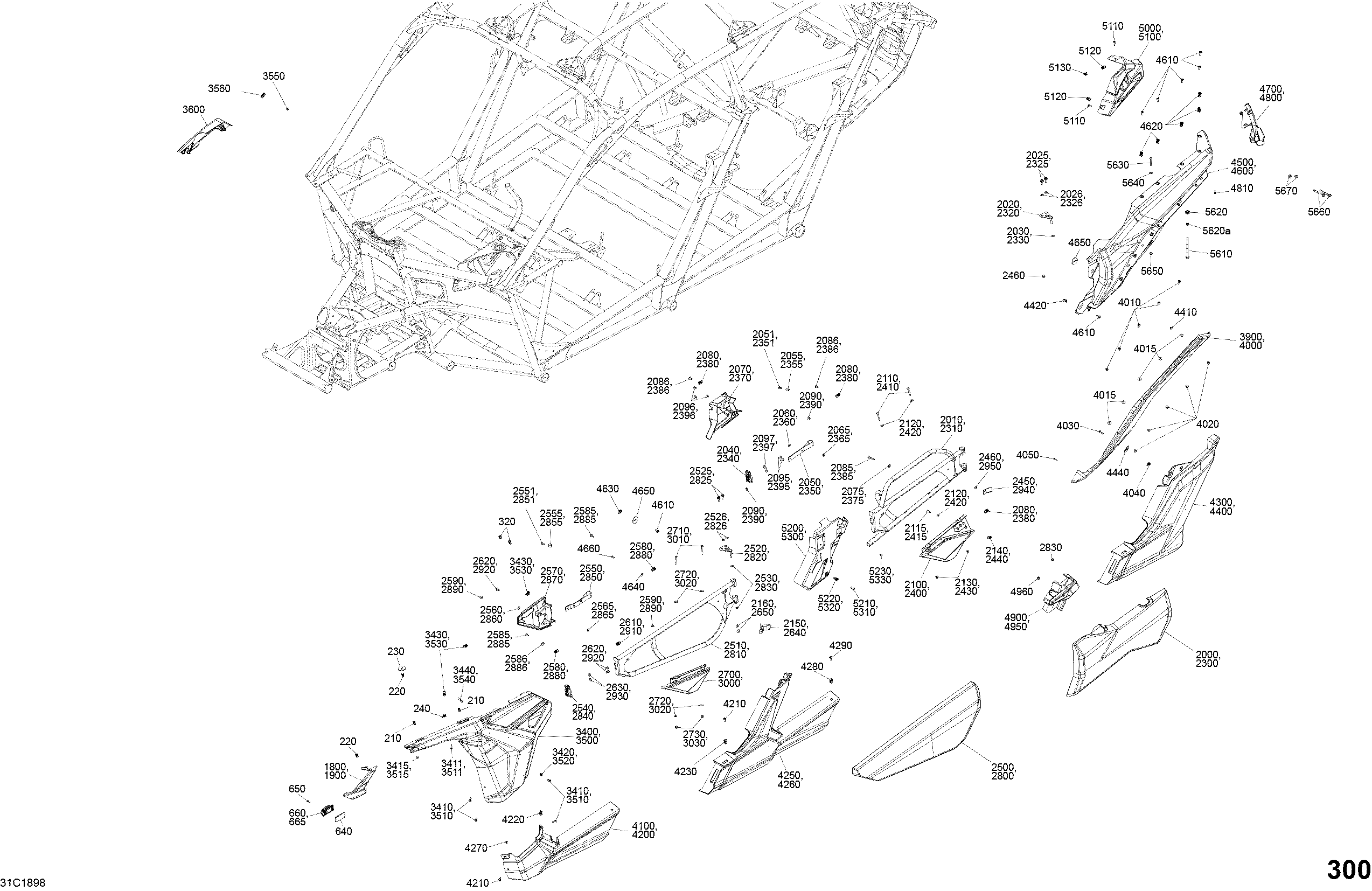

09- Body Parts - Hyper Silver - Package STD - Side Section для BRP 9- Maverick X3 MAX Turbo - STD - 2018
-
№АртикулНазвание
-
210705010721 ClipClip
-
220517302785 ClipClip
-
230705003841 Support PlateSupport Plate
-
240250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
320293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
640520000271 Amber ReflectorAmber Reflector
-
650250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
660705011806 LH Reflector SupportLH Reflector Support
-
665705011814 RH Reflector SupportRH Reflector Support
-
1800705010628 LH Light CoverLH Light Cover
-
1900705010629 RH Light CoverRH Light Cover
-
2000705012543 Silver LH Door PanelSilver LH Door Panel
-
2010705012246 Black LH Door FrameBlack LH Door Frame
-
2020705011187 Door SupportDoor Support
-
2025207582054 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
2026234081430 Flat Washer M8Flat Washer M8
-
2030234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
2040705012183 LH LatchLH Latch
-
2050293850126 BeltBelt
-
2051293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
2055293900112 BushingBushing
-
2060293730070 Belt StopperBelt Stopper
-
2065293730072 Belt StopperBelt Stopper
-
2070705011356 LH Latch CoverLH Latch Cover
-
2075234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2080250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2085250000748 Torx Screw M6 X 45Torx Screw M6 X 45
-
2086250000721 Torx ScrewTorx Screw
-
2090293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
2095250000721 Torx ScrewTorx Screw
-
2096293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
2097234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2100705011358 Left Lower Door CoverLeft Lower Door Cover
-
2110250000868 Torx Truss M6 X 50Torx Truss M6 X 50
-
2115250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2120234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2130233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
2140250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2150293850129 Door BeltDoor Belt
-
2160293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
2300705012544 Silver RH Door PanelSilver RH Door Panel
-
2310705012247 Black RH Door FrameBlack RH Door Frame
-
2310705012249 Red RH Door FrameRed RH Door Frame
-
2320705011187 Door SupportDoor Support
-
2325207582054 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
2326234081430 Flat Washer M8Flat Washer M8
-
2330234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
2340705012184 RH LatchRH Latch
-
2350293850126 BeltBelt
-
2351293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
2355293900112 BushingBushing
-
2360293730070 Belt StopperBelt Stopper
-
2365293730072 Belt StopperBelt Stopper
-
2370705011357 RH Latch CoverRH Latch Cover
-
2375234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2380250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2385250000748 Torx Screw M6 X 45Torx Screw M6 X 45
-
2386250000721 Torx ScrewTorx Screw
-
2390293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
2395250000721 Torx ScrewTorx Screw
-
2396293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
2397234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2400705011359 Right Lower Door CoverRight Lower Door Cover
-
2410250000868 Torx Truss M6 X 50Torx Truss M6 X 50
-
2415250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2420234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2430233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
2440250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2450293850129 Door BeltDoor Belt
-
2460293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
2500705012466 Silver LH Door PanelSilver LH Door Panel
-
2510705012562 Red LH Door FrameRed LH Door Frame
-
2510705012564 Black LH Door FrameBlack LH Door Frame
-
2520705011187 Door SupportDoor Support
-
2525207582054 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
2526234081430 Flat Washer M8Flat Washer M8
-
2530234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
2540705012183 LH LatchLH Latch
-
2550293850126 BeltBelt
-
2551293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
2555293900112 BushingBushing
-
2560293730070 Belt StopperBelt Stopper
-
2565293730072 Belt StopperBelt Stopper
-
2570705010734 LH Latch CoverLH Latch Cover
-
2580250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2585250000721 Torx ScrewTorx Screw
-
2586234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2590293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
2610250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2620250000721 Torx ScrewTorx Screw
-
2630234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2640293850129 Door BeltDoor Belt
-
2650293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
2700705010732 LH Lower Door PanelLH Lower Door Panel
-
2710250000749 Torx Truss Screw M6 X 50Torx Truss Screw M6 X 50
-
2720234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2730233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
2800705012467 Silver RH Door PanelSilver RH Door Panel
-
2810705012563 Red Door FrameRed Door Frame
-
2810705012565 Black RH Door FrameBlack RH Door Frame
-
2820705011187 Door SupportDoor Support
-
2825207582054 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
2826234081430 Flat Washer M8Flat Washer M8
-
2830234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
2840705012184 RH LatchRH Latch
-
2850293850126 BeltBelt
-
2851293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
2855293900112 BushingBushing
-
2860293730070 Belt StopperBelt Stopper
-
2865293730072 Belt StopperBelt Stopper
-
2870705010735 RH Latch CoverRH Latch Cover
-
2880250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2885250000721 Torx ScrewTorx Screw
-
2886234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2890293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
2910250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2920250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2930234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2940293850129 Door BeltDoor Belt
-
2950293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
3000705010733 RH Lower Door PanelRH Lower Door Panel
-
3010250000868 Torx Truss M6 X 50Torx Truss M6 X 50
-
3020234062670 Flat Washer, StainlessFlat Washer, Stainless
-
3030233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
3400715004064 LH Front Lateral Panel KitLH Front Lateral Panel Kit
-
3410250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
3411250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
3415233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
3420293450274 InsertInsert
-
3430250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
3440250000868 Torx Truss M6 X 50Torx Truss M6 X 50
-
3500715004074 RH Front Lateral PanelRH Front Lateral Panel
-
3510250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
3511250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
3515233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
3520293450274 InsertInsert
-
3530250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
3540250000868 Torx Truss M6 X 50Torx Truss M6 X 50
-
3550233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
3560517303756 GrommetGrommet
-
3600705010334 RH Side Panel CoverRH Side Panel Cover
-
3900705009511 LH Rear Fender DeflectorLH Rear Fender Deflector
-
4000705009512 RH Rear Fender DeflectorRH Rear Fender Deflector
-
4010250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4015234062670 Flat Washer, StainlessFlat Washer, Stainless
-
4020233161464 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
4030250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
4040250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
4050250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
4100705009513 LH Central Lateral PanelLH Central Lateral Panel
-
4200705009514 RH Central Lateral PanelRH Central Lateral Panel
-
4210250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4220250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
4230705010872 InsertInsert
-
4250705011368 LH Rear Central Lateral PanelLH Rear Central Lateral Panel
-
4260705011369 RH Rear Central Lateral PanelRH Rear Central Lateral Panel
-
4270293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
4280705010872 InsertInsert
-
4290250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4300705010676 LH Rear Lateral PanelLH Rear Lateral Panel
-
4400705010677 RH Rear Lateral PanelRH Rear Lateral Panel
-
4410293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
4420250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
4440705003841 Support PlateSupport Plate
-
4500705012468 Silver LH Rear FenderSilver LH Rear Fender
-
4600705012469 Silver RH Rear FenderSilver RH Rear Fender
-
4610250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4620705010872 InsertInsert
-
4630250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
4640234062670 Flat Washer, StainlessFlat Washer, Stainless
-
4650705003841 Support PlateSupport Plate
-
4660250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
4700705010686 LH Rear Lateral CoverLH Rear Lateral Cover
-
4800705010687 RH Rear Lateral CoverRH Rear Lateral Cover
-
4810250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
4900705011579 LH Central Cage TrimLH Central Cage Trim
-
4950705011580 RH Central Cage TrimRH Central Cage Trim
-
4960250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
5000705010335 LH Rear Cage TrimLH Rear Cage Trim
-
5100705010336 RH Rear Cage TrimRH Rear Cage Trim
-
5110250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
5120250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
5130517302785 ClipClip
-
5200705012601 Silver LH Central Door TrimSilver LH Central Door Trim
-
5210250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
5220705010872 InsertInsert
-
5230293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
5300705012602 Silver RH Central Door TrimSilver RH Central Door Trim
-
5310250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
5320705010872 InsertInsert
-
5330293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
5610230683034 Hex. Flanged Screw M8 X 130Hex. Flanged Screw M8 X 130
-
5630250000868 Torx Truss M6 X 50Torx Truss M6 X 50
-
5640234062670 Flat Washer, StainlessFlat Washer, Stainless
-
5650233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
5660207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
5670233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
5620>5620a269501943 Elastic Nut Housing M8. Includes 5620 to 5620aElastic Nut Housing M8. Includes 5620 to 5620a
-
5620a232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
Все узлы модели:
- 00- Model Numbers
- 01- Cooling Maverick X3
- 01- Crankcase
- 01- Crankshaft And Pistons
- 01- Cylinder Head
- 01- Engine - All Package
- 01- Engine Cooling
- 01- Engine Lubrication
- 01- Exhaust System - All Package
- 01- Turbocharger
- 01- Valve Cover
- 01- Valve Train
- 02- Air Intake
- 02- Air Intake Manifold And Throttle Body
- 02- Fuel EVAP Model
- 02- Fuel No EVAP Model
- 02- Oil Pump
- 03- Magneto And Electric Starter
- 05- Gear Box - 1
- 05- Gear Box - 2
- 05- Gear Box And Components X3
- 05- Transmission
- 06- Brakes - All Package
- 07- Front Drive - Differential Parts
- 07- Front Drive - Main Parts
- 07- Front Suspension Maverick X3
- 07- Shocks Maverick X3 MAX - Turbo - STD
- 07- Steering - All Package
- 07- Wheels and Tires - Front and Rear - Package STD
- 08- Drive, Rear Package STD & XDS DPS
- 08- Rear Drive - All Models
- 08- Rear Suspension Maverick X3
- 09- Body Parts - Bright White - Package STD - Central Section
- 09- Body Parts - Bright White - Package STD - Floor Section
- 09- Body Parts - Bright White - Package STD - Front Section
- 09- Body Parts - Bright White - Package STD - Rear Section
- 09- Body Parts - Hyper Silver - Package STD - Floor Section
- 09- Body Parts - Hyper Silver - Package STD - Front Section
- 09- Body Parts - Hyper Silver - Package STD - Rear Section
- • 09- Body Parts - Hyper Silver - Package STD - Side Section
- 09- Cab Interior - All Package
- 09- Decals - Package STD
- 09- Frame Maverick X3 MAX
- 09- Mirrors And Tools Maverick X3
- 09- Seat - All Package
- 10- Electrical - Engine Harness And Electronic Module
- 10- Electrical - System
- 10- Main Harness - 710005789
- >> Frequently Used Parts
