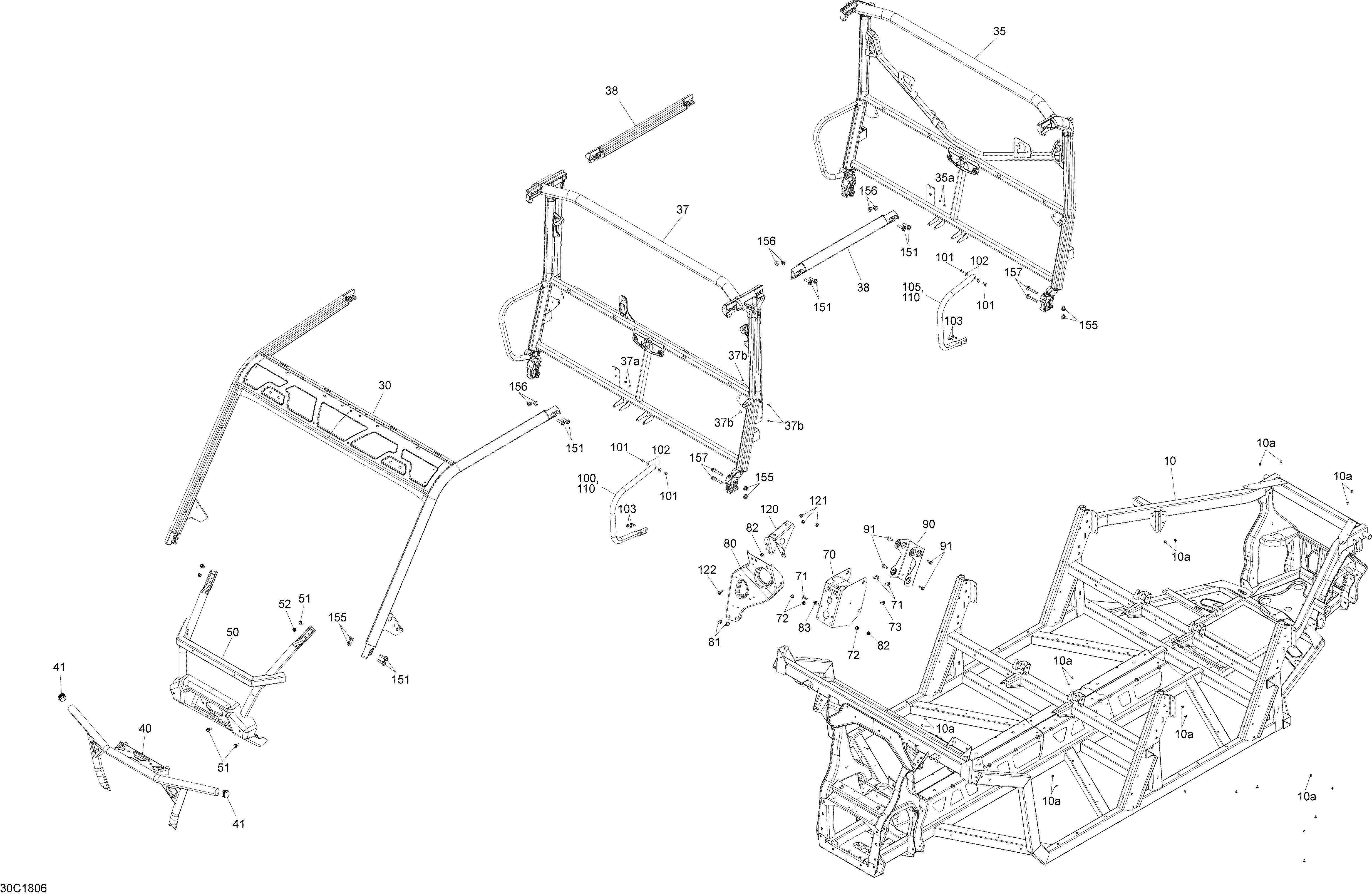

09- Frame Traxter MAX для BRP 5- Traxter MAX HD10 - 2018
-
№АртикулНазвание
-
10>10a715005223 Frame Kit Black. Includes 10 to 10aFrame Kit Black. Includes 10 to 10a
-
10a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
30715004028 Front Cage Profile KitFront Cage Profile Kit
-
35>35a715003569 Black, Rear Cage Kit. Includes 35 to 35aBlack, Rear Cage Kit. Includes 35 to 35a
-
35a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
35715003569 Black, Rear Cage KitBlack, Rear Cage Kit
-
37>37b715003770 Black, Central Cage Kit. Includes 37 to 37aBlack, Central Cage Kit. Includes 37 to 37a
-
37a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
37b390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
38705205401 Black, Cage ExtensionBlack, Cage Extension
-
40715004407 XT Front BumperXT Front Bumper
-
41705202455 CapCap
-
50705203999 Front BumperFront Bumper
-
51207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
52233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
70705206316 PlatePlate
-
71207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
72233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
73207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
80705206185 DPS SupportDPS Support
-
81207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
82233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
83207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
90705204429 Steering SupportSteering Support
-
91207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
100705204594 LH Protector TubeLH Protector Tube
-
101250000789 Torx Truss M6X14Torx Truss M6X14
-
102705202223 Offset WasherOffset Washer
-
103207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
105705204590 LH Side ProtectLH Side Protect
-
110705204592 RH Protector TubeRH Protector Tube
-
120705205171 Shifting Module SupportShifting Module Support
-
121233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
122207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
