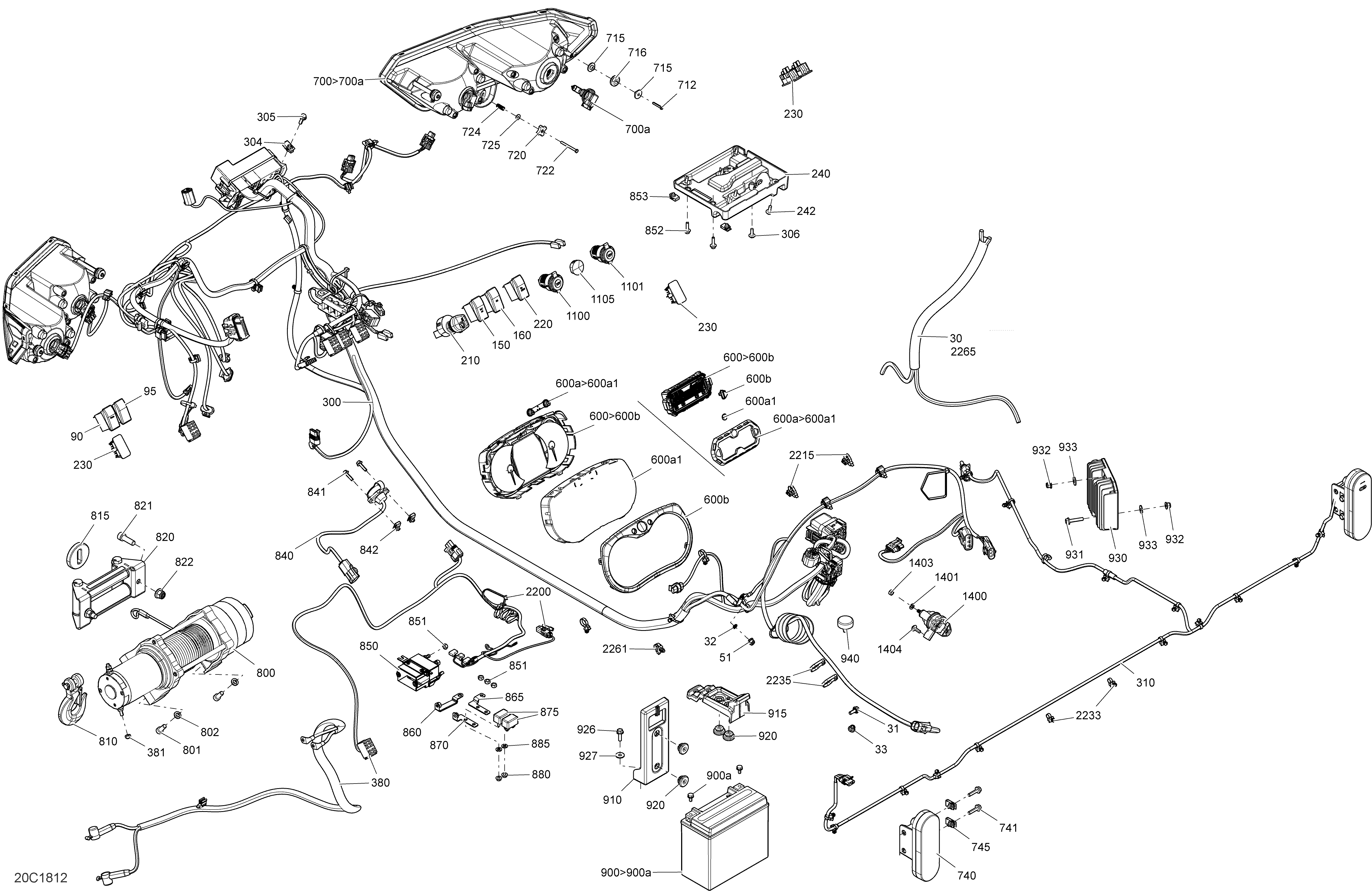

10- Electrical Traxter Max - HD10 для BRP 5- Traxter MAX HD10 - 2018
-
№АртикулНазвание
-
30710005512 Negative CableNegative Cable
-
31207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
32234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
33232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
51232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
90710004492 Light SwitchLight Switch
-
95710002052 SwitchSwitch
-
150710004814 2 X 4 Switch2 X 4 Switch
-
160710005470 Differential Lock SwitchDifferential Lock Switch
-
210710004198 Ignition Switch With KeysIgnition Switch With Keys
-
215710005739 Key Switch ProtectorKey Switch Protector
-
230710001999 Plug CarlingPlug Carling
-
240710004741 Housing SupportHousing Support
-
242250000959 Screw PT Type K-50 X 16Screw PT Type K-50 X 16
-
300710005723 Harness-Ass'yHarness-Ass'y
-
304250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
305207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
306243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
308710005022 Seat Bell Harness. Not ShownSeat Bell Harness. Not Shown
-
310710004458 Rear HarnessRear Harness
-
320a710005774 Housing CapHousing Cap
-
320b710005775 Housing CapHousing Cap
-
325a710005713 Switch's ConnectorSwitch's Connector
-
380710004465 Winch HarnessWinch Harness
-
600710005719 Speedometer. Includes 600 to 600bSpeedometer. Includes 600 to 600b
-
600a415129349 LensLens
-
600b415129355 Speedometer ButtonSpeedometer Button
-
700710005729 LH Beam Ass'y. Includes 700 to 700aLH Beam Ass'y. Includes 700 to 700a
-
700710005730 RH Beam Ass'y. Includes 700 to 700aRH Beam Ass'y. Includes 700 to 700a
-
700a219800149 Halogen Bulb H8 12V 35WHalogen Bulb H8 12V 35W
-
712241152540 Hex. Flanged Screw K50 X 25Hex. Flanged Screw K50 X 25
-
715710004749 Shoulder BushingShoulder Bushing
-
716293720053 GrommetGrommet
-
720572106600 HandleHandle
-
722250000718 Hex. Screw K40 X 45Hex. Screw K40 X 45
-
724517168600 SpringSpring
-
725234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
740710004257 Tail LightTail Light
-
741207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
745250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
800710005731 WinchWinch
-
801205083044 Socket Head Screw M8 X 30Socket Head Screw M8 X 30
-
802234181401 Lock Washer 8 mmLock Washer 8 mm
-
810715003523 Hook and Strap kitHook and Strap kit
-
815710005142 Winch Cable StopperWinch Cable Stopper
-
820710004822 Winch Cable GuideWinch Cable Guide
-
821205003044 Socket Screw M10 x 30Socket Screw M10 x 30
-
822233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
840710004823 Winch Remote ConnectorWinch Remote Connector
-
841207552044 Hex. Flanged Screw M5 X 20, Scotch GripHex. Flanged Screw M5 X 20, Scotch Grip
-
842250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
850703500947 SolenoidSolenoid
-
851232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
852207552044 Hex. Flanged Screw M5 X 20, Scotch GripHex. Flanged Screw M5 X 20, Scotch Grip
-
853250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
860710004772 Power BarPower Bar
-
865710004872 Power BarPower Bar
-
870710004873 Power BarPower Bar
-
875703500948 Breaker 50 AmpBreaker 50 Amp
-
880250100071 Hex. Flanged Nut M5Hex. Flanged Nut M5
-
885234161601 Lock Washer Helical M6Lock Washer Helical M6
-
900515176151 Battery. Includes 900 to 900aBattery. Includes 900 to 900a
-
900a515176081 Battery Bolt KitBattery Bolt Kit
-
910710004788 Fixation PlateFixation Plate
-
915710004789 Fixation PlateFixation Plate
-
920705003666 Rubber GrommetRubber Grommet
-
926207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
927234062410 Flat Washer 6 mmFlat Washer 6 mm
-
930710005568 Voltage RegulatorVoltage Regulator
-
931207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
932233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
933234062410 Flat Washer 6 mmFlat Washer 6 mm
-
940708001827 Rubber StopperRubber Stopper
-
1100710001248 Outlet DCOutlet DC
-
1400278003012 Starter RelayStarter Relay
-
1401234161601 Lock Washer Helical M6Lock Washer Helical M6
-
1403232061600 Hex. Nut M6Hex. Nut M6
-
1404243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
2200414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
2215293750058 Locking Tie RapLocking Tie Rap
-
2216293750058 Locking Tie RapLocking Tie Rap
-
2245207581646 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
2260710003168 Christmas Tree Tie-Rap 200 mmChristmas Tree Tie-Rap 200 mm
-
2261710005237 Christmas Tree Tie-RapChristmas Tree Tie-Rap
-
2265415080000 Tubing 16 mmTubing 16 mm
-
2443293750008 Tie-Rap 350 mmTie-Rap 350 mm
