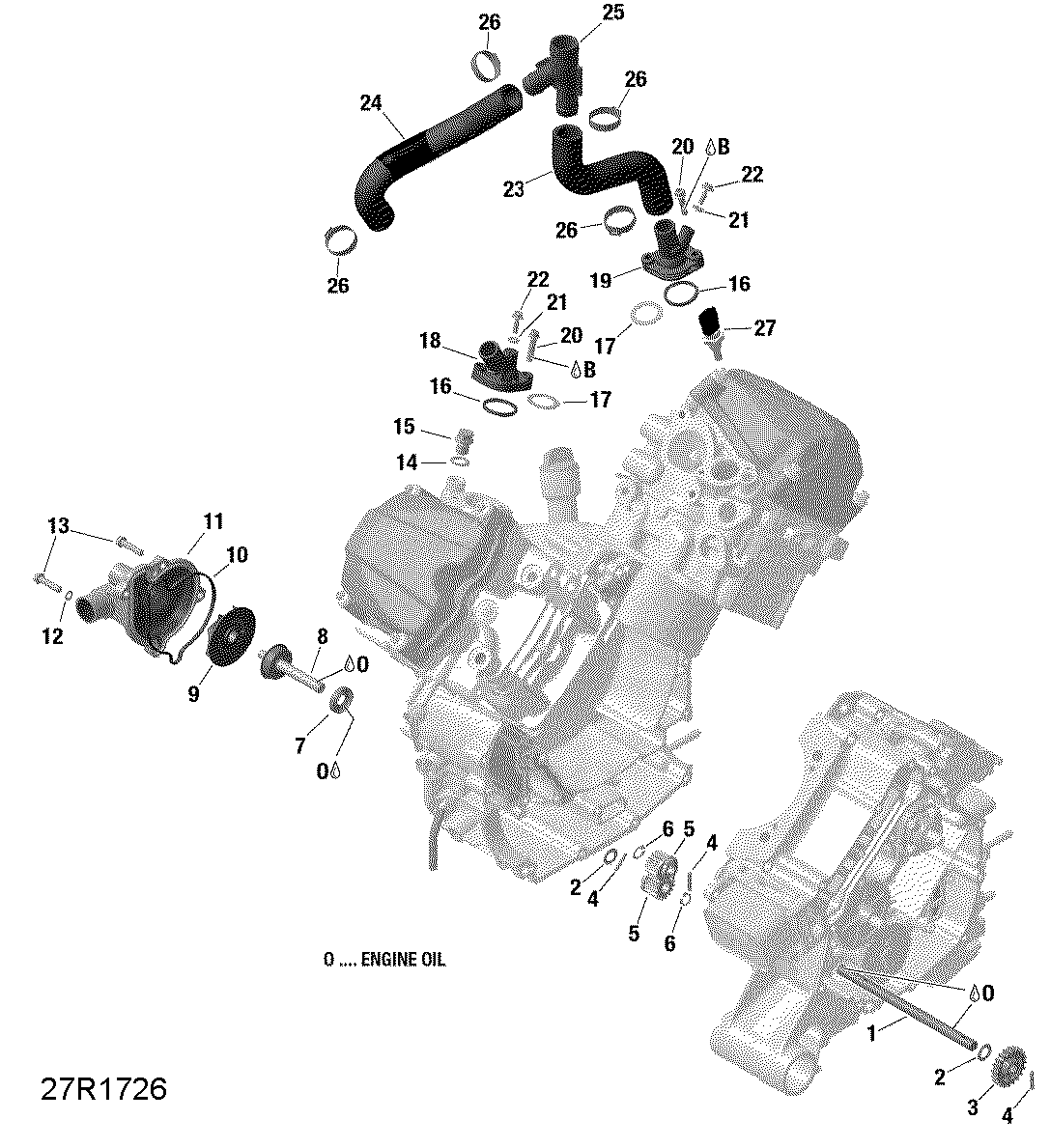

01- Engine Cooling - HD8 для BRP 6- Traxter T HD8 - 2018
-
№АртикулНазвание
-
1420620500 Intermediate ShaftIntermediate Shaft
-
2420827590 Thrust WasherThrust Washer
-
3420434330 Water Pump GearWater Pump Gear
-
4420232420 Needle PinNeedle Pin
-
5420234627 Pump Gear, 15 TeethPump Gear, 15 Teeth
-
6504152282 CirclipCirclip
-
7420650310 Oil Seal. Included in Gasket SetOil Seal. Included in Gasket Set
-
8>8a420620175 Water Pump Shaft Ass'yWater Pump Shaft Ass'y
-
8a420650370 Rotary SealRotary Seal
-
9420222505 Water ImpellerWater Impeller
-
10420222785 Water Pump HousingWater Pump Housing
-
11420651190 Gasket. Included in Gasket SetGasket. Included in Gasket Set
-
12420230415 Seal Washer. Included in Gasket SetSeal Washer. Included in Gasket Set
-
13420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
14420250640 Copper Washer. Included in Gasket SetCopper Washer. Included in Gasket Set
-
15420841921 Plug Screw M12 X 1.5Plug Screw M12 X 1.5
-
16>17420927837 Spacer Ass'ySpacer Ass'y
-
17420650300 Thermostat Gasket. Included in Gasket SetThermostat Gasket. Included in Gasket Set
-
18420222691 Thermostat CoverThermostat Cover
-
19420222693 Thermostat CoverThermostat Cover
-
20420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
21420650255 Gasket Ring. Included in Gasket SetGasket Ring. Included in Gasket Set
-
22420441621 Screw M5 X 16Screw M5 X 16
-
23420822694 Rear Head HoseRear Head Hose
-
24420822699 Front Head HoseFront Head Hose
-
25709200414 Y-FittingY-Fitting
-
26420251578 ClampClamp
-
27278002895 Temperature SensorTemperature Sensor
