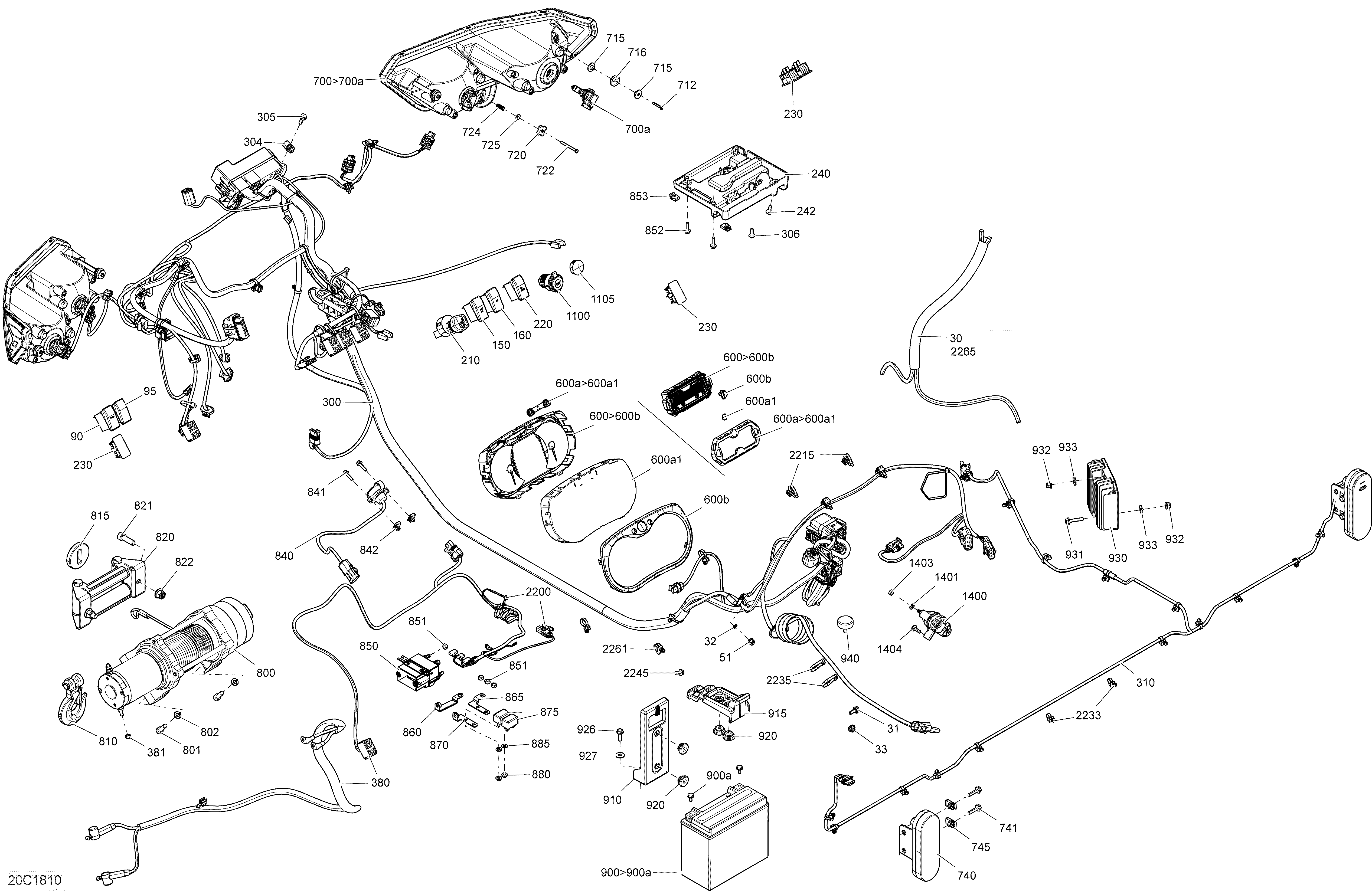

10- Electrical System Traxter T - STD для BRP 6- Traxter T HD8 - 2018
-
№АртикулНазвание
-
30710005512 Negative CableNegative Cable
-
31207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
32234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
33232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
51232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
90710004492 Light SwitchLight Switch
-
95710002052 Switch. Except BASE PackageSwitch. Except BASE Package
-
150710004814 2 X 4 Switch2 X 4 Switch
-
160710005470 Differential Lock Switch. Except BASE PackageDifferential Lock Switch. Except BASE Package
-
210710004198 Ignition Switch With KeysIgnition Switch With Keys
-
215710005739 Key Switch ProtectorKey Switch Protector
-
220710004532 Driving Mode Switch. Package PRO and XTDriving Mode Switch. Package PRO and XT
-
230710001999 Plug CarlingPlug Carling
-
240710004741 Housing SupportHousing Support
-
242250000959 Screw PT Type K-50 X 16Screw PT Type K-50 X 16
-
300710005722 Harness-Ass'yHarness-Ass'y
-
301710005760 DPS Connector Cap. Package BASE and STDDPS Connector Cap. Package BASE and STD
-
304250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
305207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
306243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
310710004458 Rear HarnessRear Harness
-
320a710005774 Housing CapHousing Cap
-
320b710005775 Housing CapHousing Cap
-
325a710005713 Switch's ConnectorSwitch's Connector
-
380710004465 Winch Harness. Package PRO and XTWinch Harness. Package PRO and XT
-
381232561434 Elastic Stop Nut M6. Package PRO and XTElastic Stop Nut M6. Package PRO and XT
-
600>600b710005553 Speedometer. Package DPS, BASE and STD. Includes 600 to 600bSpeedometer. Package DPS, BASE and STD. Includes 600 to 600b
-
600a710001183 Trim Ring Ass'y. Package DPS, BASE and STDTrim Ring Ass'y. Package DPS, BASE and STD
-
600a1704904615 BRP Logo, 13 mm. Package DPS, BASE and STDBRP Logo, 13 mm. Package DPS, BASE and STD
-
600b715900265 Button. Package DPS, BASE and STDButton. Package DPS, BASE and STD
-
600>600b710005719 Speedometer. Package PRO and XT. Includes 600 to 600bSpeedometer. Package PRO and XT. Includes 600 to 600b
-
600a415129349 Lens. Package PRO and XTLens. Package PRO and XT
-
600b415129355 Speedometer Button. Package PRO and XTSpeedometer Button. Package PRO and XT
-
700>700a710005729 LH Beam Ass'y. Includes 700 to 700aLH Beam Ass'y. Includes 700 to 700a
-
700>700a710005730 RH Beam Ass'y. Includes 710 to 710aRH Beam Ass'y. Includes 710 to 710a
-
710a219800149 Halogen Bulb H8 12V 35WHalogen Bulb H8 12V 35W
-
712241152540 Hex. Flanged Screw K50 X 25Hex. Flanged Screw K50 X 25
-
715710004749 Shoulder BushingShoulder Bushing
-
716293720053 GrommetGrommet
-
720572106600 HandleHandle
-
722250000718 Hex. Screw K40 X 45Hex. Screw K40 X 45
-
724>724a517168600 Spring. Includes 724 to 724aSpring. Includes 724 to 724a
-
725234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
740710004257 Tail Light. Package PRO and XTTail Light. Package PRO and XT
-
740710004497 Tail Light. Package DPS, BASE and STDTail Light. Package DPS, BASE and STD
-
741207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
745250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
800710005731 Winch. Package PRO and XTWinch. Package PRO and XT
-
801205083044 Socket Head Screw M8 X 30. Package PRO and XTSocket Head Screw M8 X 30. Package PRO and XT
-
802234181401 Lock Washer 8 mm. Package PRO and XTLock Washer 8 mm. Package PRO and XT
-
810715003523 Hook and Strap kit. Package PRO and XTHook and Strap kit. Package PRO and XT
-
815710005142 Winch Cable Stopper. Package PRO and XTWinch Cable Stopper. Package PRO and XT
-
820710004822 Winch Cable Guide. Package PRO and XTWinch Cable Guide. Package PRO and XT
-
821205003044 Socket Screw M10 x 30. Package PRO and XTSocket Screw M10 x 30. Package PRO and XT
-
822233201414 Hex. Flanged Elastic Nut M10. Package PRO and XTHex. Flanged Elastic Nut M10. Package PRO and XT
-
840710004823 Winch Remote Connector. Package PRO and XTWinch Remote Connector. Package PRO and XT
-
841207552044 Hex. Flanged Screw M5 X 20, Scotch Grip. Package PRO and XTHex. Flanged Screw M5 X 20, Scotch Grip. Package PRO and XT
-
842250000958 Panel Nut M5 X 0.8. Package PRO and XTPanel Nut M5 X 0.8. Package PRO and XT
-
850703500947 Solenoid. Package PRO and XTSolenoid. Package PRO and XT
-
851232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
852207552044 Hex. Flanged Screw M5 X 20, Scotch Grip. Package PRO and XTHex. Flanged Screw M5 X 20, Scotch Grip. Package PRO and XT
-
853250000958 Panel Nut M5 X 0.8. Package PRO and XTPanel Nut M5 X 0.8. Package PRO and XT
-
860710004772 Power Bar. Package PRO and XTPower Bar. Package PRO and XT
-
865710004872 Power Bar. Package PRO and XTPower Bar. Package PRO and XT
-
870710004873 Power Bar. Package PRO and XTPower Bar. Package PRO and XT
-
875703500948 Breaker 50 Amp. Package PRO and XTBreaker 50 Amp. Package PRO and XT
-
880250100071 Hex. Flanged Nut M5. Package PRO and XTHex. Flanged Nut M5. Package PRO and XT
-
885234161601 Lock Washer Helical M6. Package PRO and XTLock Washer Helical M6. Package PRO and XT
-
900>900a410301203 Battery Ass'y, 18 Amperes. Package DPS, BASE and STD. Includes 900 to 900aBattery Ass'y, 18 Amperes. Package DPS, BASE and STD. Includes 900 to 900a
-
900a250000282 Battery Bolt Kit. Package DPS, BASE and STDBattery Bolt Kit. Package DPS, BASE and STD
-
900>900a515176151 Battery. Package PRO and XT. Includes 900 to 900aBattery. Package PRO and XT. Includes 900 to 900a
-
900a515176081 Battery Bolt Kit. Package PRO and XTBattery Bolt Kit. Package PRO and XT
-
910710004788 Fixation PlateFixation Plate
-
915710004789 Fixation PlateFixation Plate
-
920705003666 Rubber GrommetRubber Grommet
-
926207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
927234062410 Flat Washer 6 mmFlat Washer 6 mm
-
930515177325 Voltage Regulator. Engine HD5Voltage Regulator. Engine HD5
-
930710005568 Voltage Regulator. Engine HD8 & HD10Voltage Regulator. Engine HD8 & HD10
-
931207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
932233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
933234062410 Flat Washer 6 mmFlat Washer 6 mm
-
940708001827 Rubber StopperRubber Stopper
-
1100710001248 Outlet DCOutlet DC
-
1101710005374 12V Power Outlet. Package Hunter12V Power Outlet. Package Hunter
-
1105710004993 Cap. Package DPS, BASE and STDCap. Package DPS, BASE and STD
-
1400278003012 Starter RelayStarter Relay
-
1401234161601 Lock Washer Helical M6Lock Washer Helical M6
-
1403232061600 Hex. Nut M6Hex. Nut M6
-
1404243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
2200414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
2215293750058 Locking Tie RapLocking Tie Rap
-
2233710003168 Christmas Tree Tie-Rap 200 mmChristmas Tree Tie-Rap 200 mm
-
2235293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
2245207581646 Hex. Flanged Screw M8 X 16, Scotch Grip. Engine HD10Hex. Flanged Screw M8 X 16, Scotch Grip. Engine HD10
-
2245210261650 Hex. Flanged Screw M6 X 16. Engine HD8Hex. Flanged Screw M6 X 16. Engine HD8
-
2261710005237 Christmas Tree Tie-RapChristmas Tree Tie-Rap
-
2265a415080000 Tubing 16 mmTubing 16 mm
