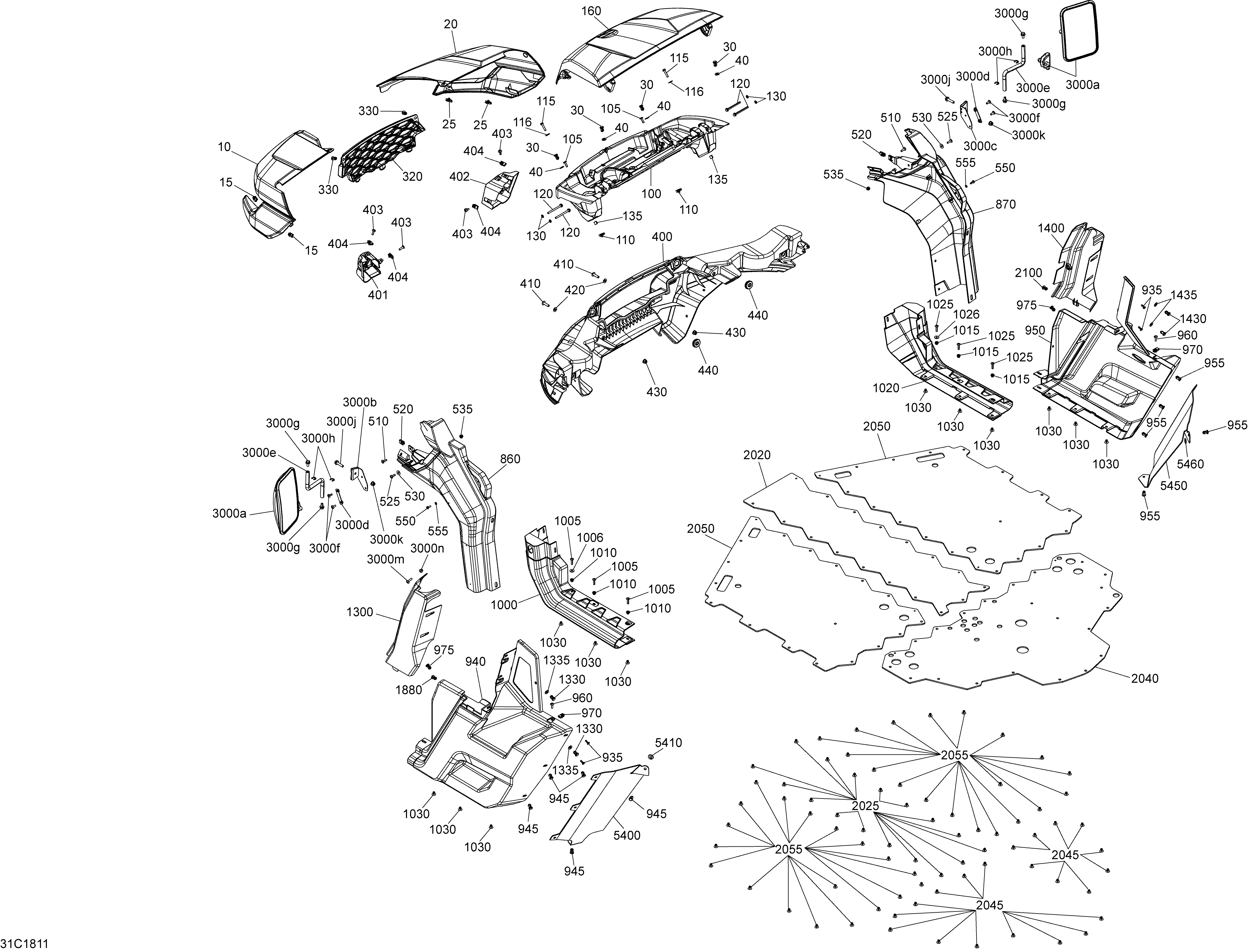

09- Body Defender T1B - Pure Magnesium Models для BRP 7- Traxter T HD10 - 2018
-
№АртикулНазвание
-
10705011409 Magnesium LH Front FenderMagnesium LH Front Fender
-
15250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
20705011410 Magnesium RH Front FenderMagnesium RH Front Fender
-
30293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
40503192494 WasherWasher
-
100705011391 Service CenterService Center
-
105250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
115210263050 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
116234062670 Flat Washer, StainlessFlat Washer, Stainless
-
120207667554 Screw Hex Flange M6 X 75Screw Hex Flange M6 X 75
-
130732610072 Push NutPush Nut
-
135293900125 BushingBushing
-
160705011401 Magnesium Front Service CoverMagnesium Front Service Cover
-
320705009364 Grid Front FasciaGrid Front Fascia
-
400705011576 Front FaciaFront Facia
-
401705012285 LH Flasher CapLH Flasher Cap
-
402705012286 RH Flasher CapRH Flasher Cap
-
403705000722 RH.InsertRH.Insert
-
404250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
410250000886 Torx Screw M8 X 30Torx Screw M8 X 30
-
420503192494 WasherWasher
-
430233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
440705010718 GrommetGrommet
-
510250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
520250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
525250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
530234062670 Flat Washer, StainlessFlat Washer, Stainless
-
535250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
550250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
555234051670 Flat Washer M5Flat Washer M5
-
860705008152 LH Front Lateral PanelLH Front Lateral Panel
-
870705008153 RH Front Lateral PanelRH Front Lateral Panel
-
935250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
940705012704 Rear Left Side PanelRear Left Side Panel
-
941414916600 Nylon Cap. Package STD, PRONylon Cap. Package STD, PRO
-
945293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
950705012705 Rear Right Side PanelRear Right Side Panel
-
955293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
960250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
970250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
975293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
1000705008699 LH Central Lateral PanelLH Central Lateral Panel
-
1005250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
1006234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1010250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
1015250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
1020705008700 RH Central Lateral PanelRH Central Lateral Panel
-
1025250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
1026234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1030293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
1300715003564 Rear Cage Cover Kit LHRear Cage Cover Kit LH
-
1330293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
1335503192494 WasherWasher
-
1400715003565 Rear Cage Cover Kit RHRear Cage Cover Kit RH
-
1430293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
1435503192494 WasherWasher
-
1880293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
2020705009151 Central Skid PlateCentral Skid Plate
-
2025293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
2040705011292 Rear Skid PlateRear Skid Plate
-
2045293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
2050705010422 Lateral Skid Plate. Package PROLateral Skid Plate. Package PRO
-
2055293150104 Pop Rivet 3/16''. Package PROPop Rivet 3/16''. Package PRO
-
2100293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
3000a705011497 MirrorMirror
-
3000b705012151 LH Mirror SupportLH Mirror Support
-
3000c705012152 RH Mirror SupportRH Mirror Support
-
3000d705010469 PlatePlate
-
3000e705012671 Mirror RodMirror Rod
-
3000f250000348 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
3000g207581644 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
3000h293370131 Snap RingSnap Ring
-
3000j207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
3000k233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
3000m250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
3000n233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
3000p250200178 FLat WasherFLat Washer
-
5400705010426 LH Rear DeflectorLH Rear Deflector
-
5410292001663 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
5450705010427 RH Rear DeflectorRH Rear Deflector
-
5460292001663 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
