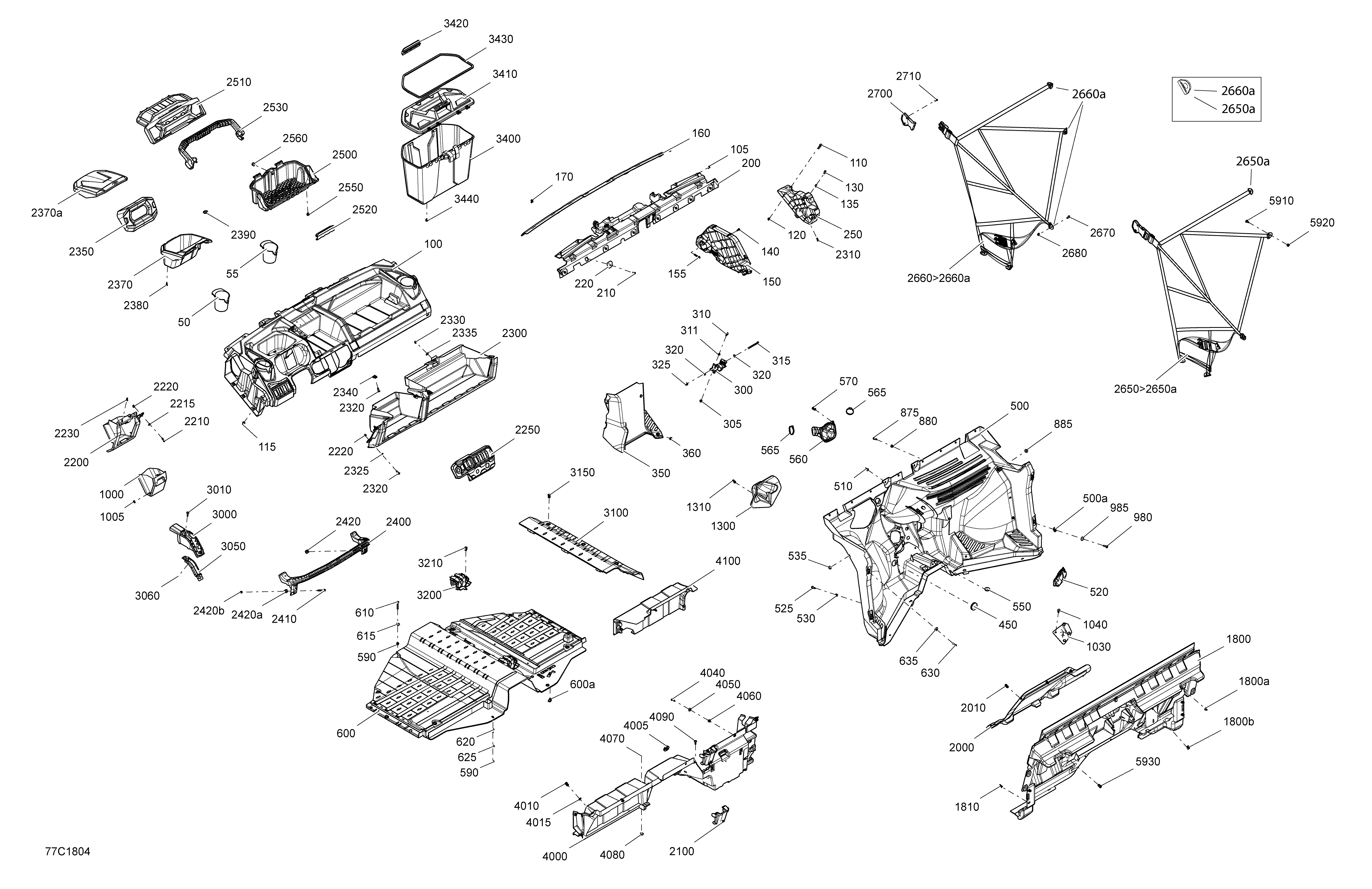

09- Cab Interior Traxter Non MAX - T1B для BRP 7- Traxter T HD10 - 2018
-
№АртикулНазвание
-
50707900288 Cup HolderCup Holder
-
55707900580 Rubber Cap. Not ShownRubber Cap. Not Shown
-
100715003886 Dashboard KitDashboard Kit
-
105250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
110207563544 Screw H Flange S.Grip M6 X 35Screw H Flange S.Grip M6 X 35
-
115250000721 Torx ScrewTorx Screw
-
120250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
130250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
135233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
140250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
150707900249 Dash SupportDash Support
-
155207563544 Screw H Flange S.Grip M6 X 35Screw H Flange S.Grip M6 X 35
-
160707900411 Dash TrimDash Trim
-
170517302785 ClipClip
-
200707900296 Upper Front DeflectorUpper Front Deflector
-
210250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
220705003841 Support PlateSupport Plate
-
250707900367 RH SupportRH Support
-
300707900402 ClampClamp
-
305250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
310207561646 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
311234061410 Flat Washer 6 mmFlat Washer 6 mm
-
315207068044 Screw Hex. M6 X 80Screw Hex. M6 X 80
-
320234062670 Flat Washer, StainlessFlat Washer, Stainless
-
325233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
350707900289 Front Bulkhead CoverFront Bulkhead Cover
-
360293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
450293250242 Rubber CoverRubber Cover
-
500707900430 Front BulkheadFront Bulkhead
-
500a250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
510250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
520707900408 DPS CoverDPS Cover
-
525250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
530233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
535234062670 Flat Washer, StainlessFlat Washer, Stainless
-
550291002744 Bumber CapBumber Cap
-
560707900390 RH Rubber CoverRH Rubber Cover
-
565293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
570293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
590250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
600707900431 Floor. Includes 600 to 600aFloor. Includes 600 to 600a
-
600a250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
610250000868 Torx Truss M6 X 50Torx Truss M6 X 50
-
615250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
620250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
625234062670 Flat Washer, StainlessFlat Washer, Stainless
-
630250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
635250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
875250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
880233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
885234062670 Flat Washer, StainlessFlat Washer, Stainless
-
980250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
985250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
1000707900252 DrawerDrawer
-
1005293300194 O-RingO-Ring
-
1030707900318 Steering Column Deflector. Package STDSteering Column Deflector. Package STD
-
1030707900645 Steering Column Deflector. Except Package STDSteering Column Deflector. Except Package STD
-
1040293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
1300707900389 Exterior CoverExterior Cover
-
1310293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
1800707900635 Rear Upper Deflector Ass'y. Includes 1800 to 1800bRear Upper Deflector Ass'y. Includes 1800 to 1800b
-
1800a293830005 Rubber BumperRubber Bumper
-
1800b250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
1810293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
2000707900326 Engine Service CoverEngine Service Cover
-
2010293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
2100707900419 Support belt coverSupport belt cover
-
2200707900251 LH Lower DashLH Lower Dash
-
2210250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2215234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2220250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
2230250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
2250707900584 Switch SupportSwitch Support
-
2300707900250 RH Lower DashRH Lower Dash
-
2310250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
2320250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2325234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2330250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
2335234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2340250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
2350707900285 Cluster Support. Package STDCluster Support. Package STD
-
2350707900358 Cluster SupportCluster Support
-
2370707900284 Storage Bin. Except Package STDStorage Bin. Except Package STD
-
2370707900607 Storage Bin Ass'y. Includes 2370 to 2370aStorage Bin Ass'y. Includes 2370 to 2370a
-
2370a707900225 Storage Cover. Except Package STDStorage Cover. Except Package STD
-
2370a707900225 Storage CoverStorage Cover
-
2380241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
2390705003264 GrommetGrommet
-
2400707900248 Passenger HandholdPassenger Handhold
-
2410250000648 Torx Screw M6 X 60Torx Screw M6 X 60
-
2420269500725 Nut Housing Ass'y. Includes 2420 to 2420bNut Housing Ass'y. Includes 2420 to 2420b
-
2420a269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
2420b232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
2500707900244 Glove Box Base. Except Base ModelGlove Box Base. Except Base Model
-
2510707900245 Glove Box Cover. Except Base ModelGlove Box Cover. Except Base Model
-
2520269501945 Clip. Except Base ModelClip. Except Base Model
-
2530707900567 Handle. Except Base ModelHandle. Except Base Model
-
2550293830005 Rubber Bumper. Except Base ModelRubber Bumper. Except Base Model
-
2560293000120 Cap. Except Base ModelCap. Except Base Model
-
2650>2650a707900291 LH Front Safety Net. Includes 2650 to 2650aLH Front Safety Net. Includes 2650 to 2650a
-
2650>2650a707900613 LH Front Safety Net. Includes 2650 to 2650aLH Front Safety Net. Includes 2650 to 2650a
-
2650a707900049 Upper LinkUpper Link
-
2660>2660a707900292 RH Front Safety Net. Includes 2660 to 2660aRH Front Safety Net. Includes 2660 to 2660a
-
2660a707900049 Upper LinkUpper Link
-
2670250000721 Torx ScrewTorx Screw
-
2680250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
2700707900592 Safety Net LinkSafety Net Link
-
2710250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
2715707900610 Support. Not ShownSupport. Not Shown
-
2720250000767 Torx Truss Screw M6 X 12. Not ShownTorx Truss Screw M6 X 12. Not Shown
-
2725707900609 Net Anchor. Not ShownNet Anchor. Not Shown
-
2740250000789 Torx Truss M6X14. Not ShownTorx Truss M6X14. Not Shown
-
3000707900608 Shifter GateShifter Gate
-
3000707900608 Shifter GateShifter Gate
-
3010250000728 Torx Screw M6 X 25Torx Screw M6 X 25
-
3050707900506 Shifter Gate DeflectorShifter Gate Deflector
-
3060250100178 Push NutPush Nut
-
3100707900324 Floor CoverFloor Cover
-
3150293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
3200707900325 Hose SupportHose Support
-
3210293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
4000707900228 Rear Lower BulkheadRear Lower Bulkhead
-
4005705005156 Oval WasherOval Washer
-
4010293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
4011293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
4015503192494 WasherWasher
-
4040250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4050234062670 Flat Washer, StainlessFlat Washer, Stainless
-
4060250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
4070250000954 Torx Screw M6 X 70Torx Screw M6 X 70
-
4080250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
4090250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4100707900282 Battery CoverBattery Cover
-
5910250000721 Torx ScrewTorx Screw
-
5920233161464 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
5930293150089 Tuflok Plastic RivetTuflok Plastic Rivet
