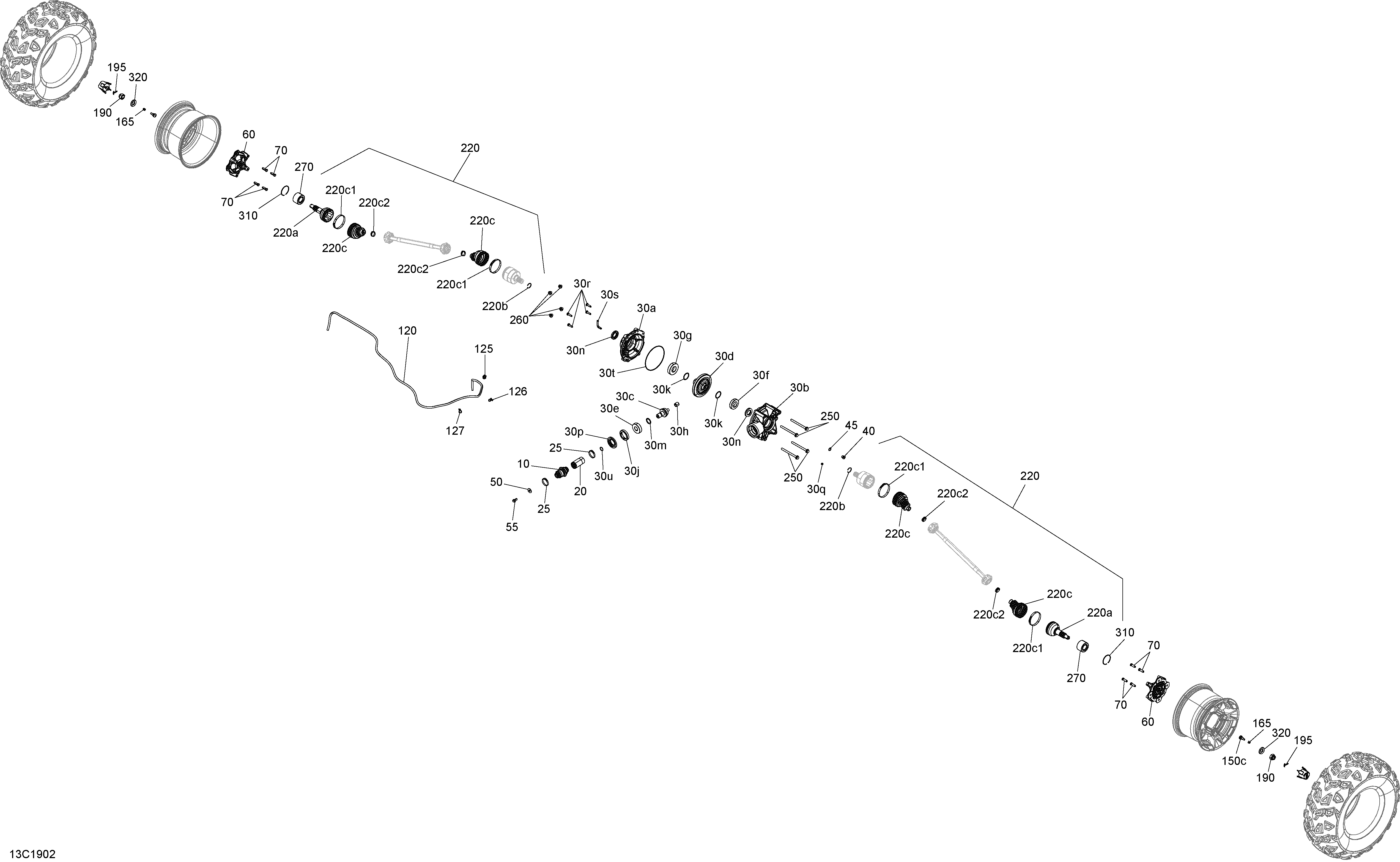

08- Rear Drive - HD5 для BRP 001 - Defender HD5 - North America - 2019
-
№АртикулНазвание
-
10705401950 Drive Axle Ass'yDrive Axle Ass'y
-
20705401969 Coupling-SleeveCoupling-Sleeve
-
25293650138 Oetiker Gear ClampOetiker Gear Clamp
-
30703501019 Final Drive Unit. Includes 30 to 30tFinal Drive Unit. Includes 30 to 30t
-
30c705502053 Pinion 10 TeethPinion 10 Teeth
-
30d705502054 Gear 36 TeethGear 36 Teeth
-
30e705502737 Ball BearingBall Bearing
-
30f705502738 Ball BearingBall Bearing
-
30h705502058 Needle BearingNeedle Bearing
-
30j705502059 NutNut
-
30k705502060 Differential Shim 0.02 mmDifferential Shim 0.02 mm
-
30m705502061 Pinion Gear Shim 1.67 mmPinion Gear Shim 1.67 mm
-
30n705501556 Oil SealOil Seal
-
30p705502062 Oil SealOil Seal
-
30q705501724 Plug DrainPlug Drain
-
30r705502063 ScrewScrew
-
30s705501584 Breather TubeBreather Tube
-
30t705502064 SealSeal
-
30u705502065 O-RingO-Ring
-
30v250000615 Hex Flanged Screwv M10 X 16Hex Flanged Screwv M10 X 16
-
30w250200014 Flat Washer M10Flat Washer M10
-
40705500504 Fill Level PlugFill Level Plug
-
45705500506 Copper WasherCopper Washer
-
50250200014 Flat Washer M10Flat Washer M10
-
55250001046 Hex Flanged Screw M10 X 20 S.GRIPHex Flanged Screw M10 X 20 S.GRIP
-
60705502338 Wheel HubWheel Hub
-
70250300055 Wheel Stud M10 X 1.25Wheel Stud M10 X 1.25
-
120293830193 Polyurethane HosePolyurethane Hose
-
125293750063 Clip Tie-RapClip Tie-Rap
-
126710003168 Christmas Tree Tie-Rap 200 mmChristmas Tree Tie-Rap 200 mm
-
127414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
190250100193 Castle Nut M20Castle Nut M20
-
195250400084 Cotter PinCotter Pin
-
220705502478 LH Half Shaft. Includes 220 to 220dLH Half Shaft. Includes 220 to 220d
-
220705502479 RH Half Shaft. Includes 220 to 220dRH Half Shaft. Includes 220 to 220d
-
220a715900429 CV JointCV Joint
-
220b705501781 CirclipCirclip
-
220c705501864 Boot Kit. Includes 220c to 220c2Boot Kit. Includes 220c to 220c2
-
220c1715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
220c2715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
220d715900485 Plunging JointPlunging Joint
-
250230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
260233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
270293350118 Cone BearingCone Bearing
-
310293370019 CirclipCirclip
-
320250200170 Conical Spring Washer M20Conical Spring Washer M20
