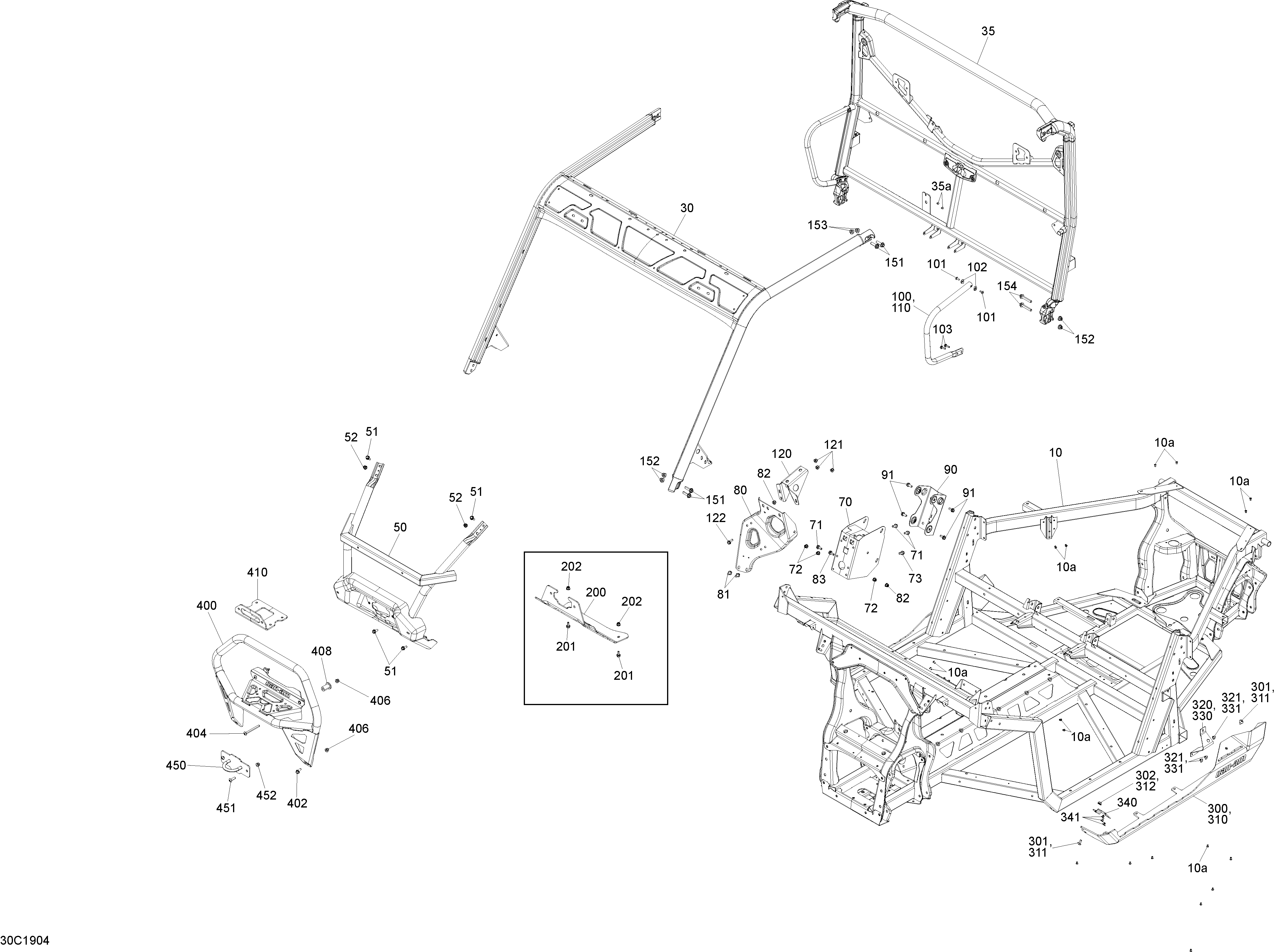

09- Frame - North America для BRP 001 - Defender HD5 - North America - 2019
-
№АртикулНазвание
-
10715005594 Frame KitFrame Kit
-
10a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
30715005554 Front Cage Kit. BlackFront Cage Kit. Black
-
35715003569 Black, Rear Cage Kit. Black. Includes 35 to 35aBlack, Rear Cage Kit. Black. Includes 35 to 35a
-
35a390402200 Pop Rivet 3/16''. BlackPop Rivet 3/16''. Black
-
40705206536 XT Front Bumper. Packages CAB & XTXT Front Bumper. Packages CAB & XT
-
41705202455 Cap. Packages CAB & XTCap. Packages CAB & XT
-
50705203999 Front BumperFront Bumper
-
51207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
52233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
70705206316 PlatePlate
-
71207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
72233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
73207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
80705206185 DPS Support. Package BASEDPS Support. Package BASE
-
81207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
82233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
83207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
90715005429 Support Steering ColumnSupport Steering Column
-
91207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
100705204594 LH Protector Tube. BlackLH Protector Tube. Black
-
100705206478 Sunburst Yellow, LH Side Protector . YellowSunburst Yellow, LH Side Protector . Yellow
-
101250000789 Torx Truss M6X14Torx Truss M6X14
-
102705202223 Offset WasherOffset Washer
-
103207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
110705204592 RH Protector Tube. BlackRH Protector Tube. Black
-
110705206477 Sunburst Yellow, RH Side Protector. YellowSunburst Yellow, RH Side Protector. Yellow
-
120705205171 Shifting Module SupportShifting Module Support
-
121233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
122207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
130250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
135250100199 Insert Half Hex Body M6 x 1.0. Except Packages CAB & BASEInsert Half Hex Body M6 x 1.0. Except Packages CAB & BASE
-
480250000855 Hex. Flanged Screw M10 X 35. Not ShownHex. Flanged Screw M10 X 35. Not Shown
-
490233201436 Flanged Elastic Nut M10. Not ShownFlanged Elastic Nut M10. Not Shown
-
500233201466 Flanged Elastic Nut M10. Not ShownFlanged Elastic Nut M10. Not Shown
-
510207606046 Hex. Flanged Screw M10 X 60. Not ShownHex. Flanged Screw M10 X 60. Not Shown
