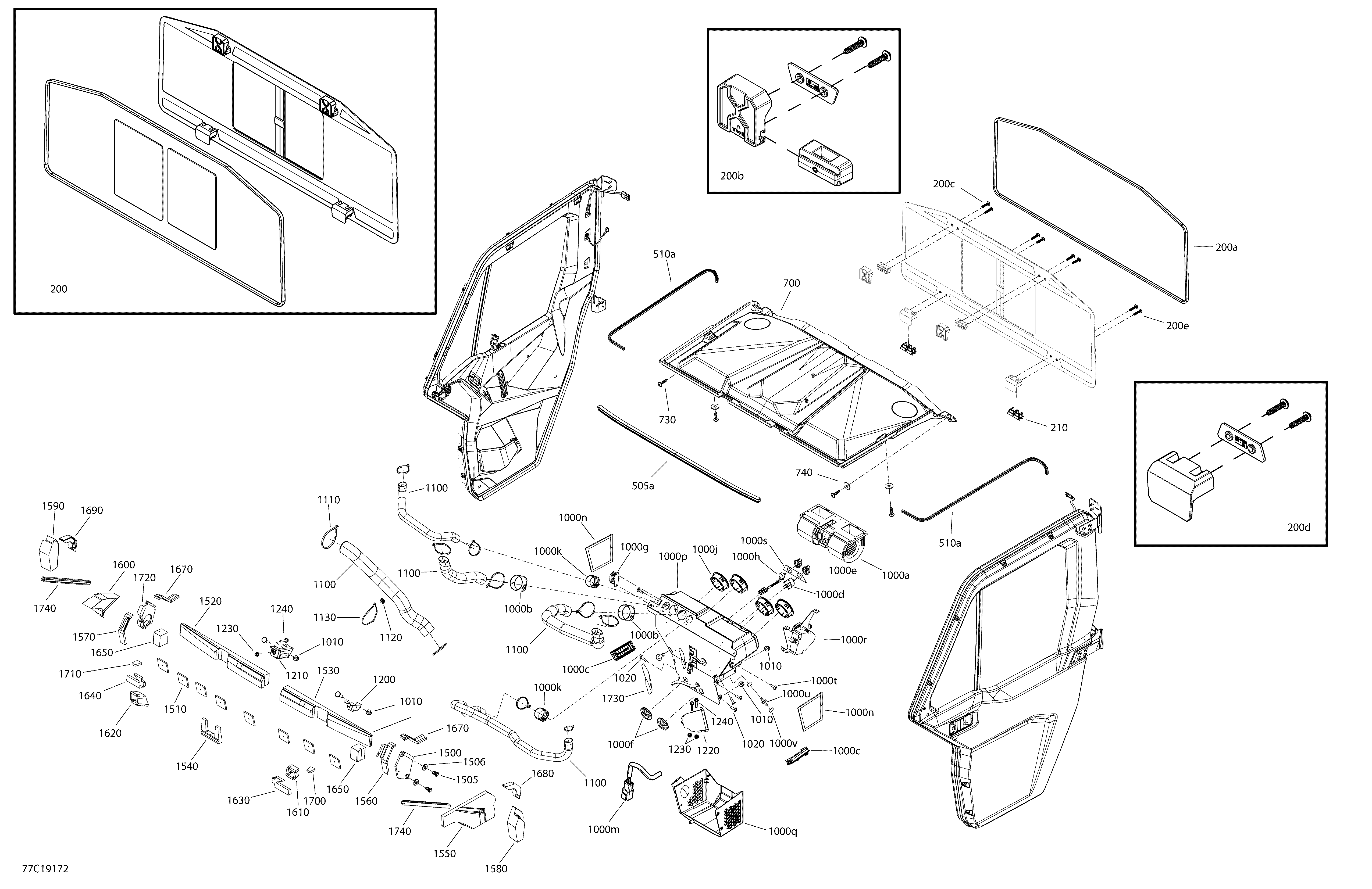

09- Enclosure Cab - XT CAB - North America - Dash & Roof Section для BRP 003 - Defender HD10 - North America - 2019
-
№АртикулНазвание
-
200715002440 Rear Window kit. Includes 200 to 200eRear Window kit. Includes 200 to 200e
-
200a293250393 ExtrusionExtrusion
-
200b705800088 Upper Clamp Ass'y. Includes 200b to 200cUpper Clamp Ass'y. Includes 200b to 200c
-
200c250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
200d705800090 Lower Clamp Ass'y. Includes 200d to 200eLower Clamp Ass'y. Includes 200d to 200e
-
200e250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
210705800317 Stopper RubberStopper Rubber
-
505a293250361 GasketGasket
-
510a293250393 ExtrusionExtrusion
-
700705800253 Roof LinerRoof Liner
-
730250000760 Torx Screw Truss Head K50X20 T20Torx Screw Truss Head K50X20 T20
-
740234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1000a520001536 FanFan
-
1000b520001672 Duct AdaptorDuct Adaptor
-
1000c520001673 Rectangular GridRectangular Grid
-
1000d520001674 Fan SwitchFan Switch
-
1000e520001675 ButtonButton
-
1000f520001676 Grommet 5/8''Grommet 5/8''
-
1000g520001679 Fuse BoxFuse Box
-
1000h520001680 PotentiometerPotentiometer
-
1000j520001681 Round GridRound Grid
-
1000k520001682 Duct AdaptorDuct Adaptor
-
1000m520001683 Wiring HarnessWiring Harness
-
1000n520001537 FilterFilter
-
1000p520001546 ConsoleConsole
-
1000q520001626 Lower CoverLower Cover
-
1000r520001685 Valve Ass'y 5/8''Valve Ass'y 5/8''
-
1000s520001686 HVAC DecalHVAC Decal
-
1000t250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1000u275500398 Check ValveCheck Valve
-
1000v293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
1010233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
1020250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1100520001643 Air Duct KitAir Duct Kit
-
1110293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
1120293750062 Tie Rap ClipTie Rap Clip
-
1130293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
1200520001619 LH SupportLH Support
-
1210520001621 RH SupportRH Support
-
1220520001623 Central SupportCentral Support
-
1230250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
1240207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
1500705800260 Insulating FoamInsulating Foam
-
1505293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1506292001663 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
1510705800261 Insulating FoamInsulating Foam
-
1520705800262 Insulating FoamInsulating Foam
-
1530705800263 Insulating FoamInsulating Foam
-
1540705800264 Insulating FoamInsulating Foam
-
1550705800265 Insulating FoamInsulating Foam
-
1560705800266 LH Insulating FoamLH Insulating Foam
-
1570705800267 RH Insulating FoamRH Insulating Foam
-
1580705800268 Insulating FoamInsulating Foam
-
1590705800269 Insulating FoamInsulating Foam
-
1600705800270 Insulating FoamInsulating Foam
-
1610705800271 LH Insulating FoamLH Insulating Foam
-
1620705800272 RH Insulating FoamRH Insulating Foam
-
1630705800273 Insulating FoamInsulating Foam
-
1640705800274 Insulating FoamInsulating Foam
-
1650705800275 Insulating FoamInsulating Foam
-
1670705800277 Insulating FoamInsulating Foam
-
1680705800278 LH Insulating FoamLH Insulating Foam
-
1690705800279 RH Insulating FoamRH Insulating Foam
-
1700705800280 LH Insulating FoamLH Insulating Foam
-
1710705800281 RH Insulating FoamRH Insulating Foam
-
1720705800282 Insulating FoamInsulating Foam
-
1730704906818 Protector DecalProtector Decal
-
1740293250361 GasketGasket
-
1750232081414 Hex. Nut M8. Not ShownHex. Nut M8. Not Shown
-
1760250000874 Torx Truss M8 X 25. Not ShownTorx Truss M8 X 25. Not Shown
-
1770234082410 Flat Washer 8 mm. Not ShownFlat Washer 8 mm. Not Shown
