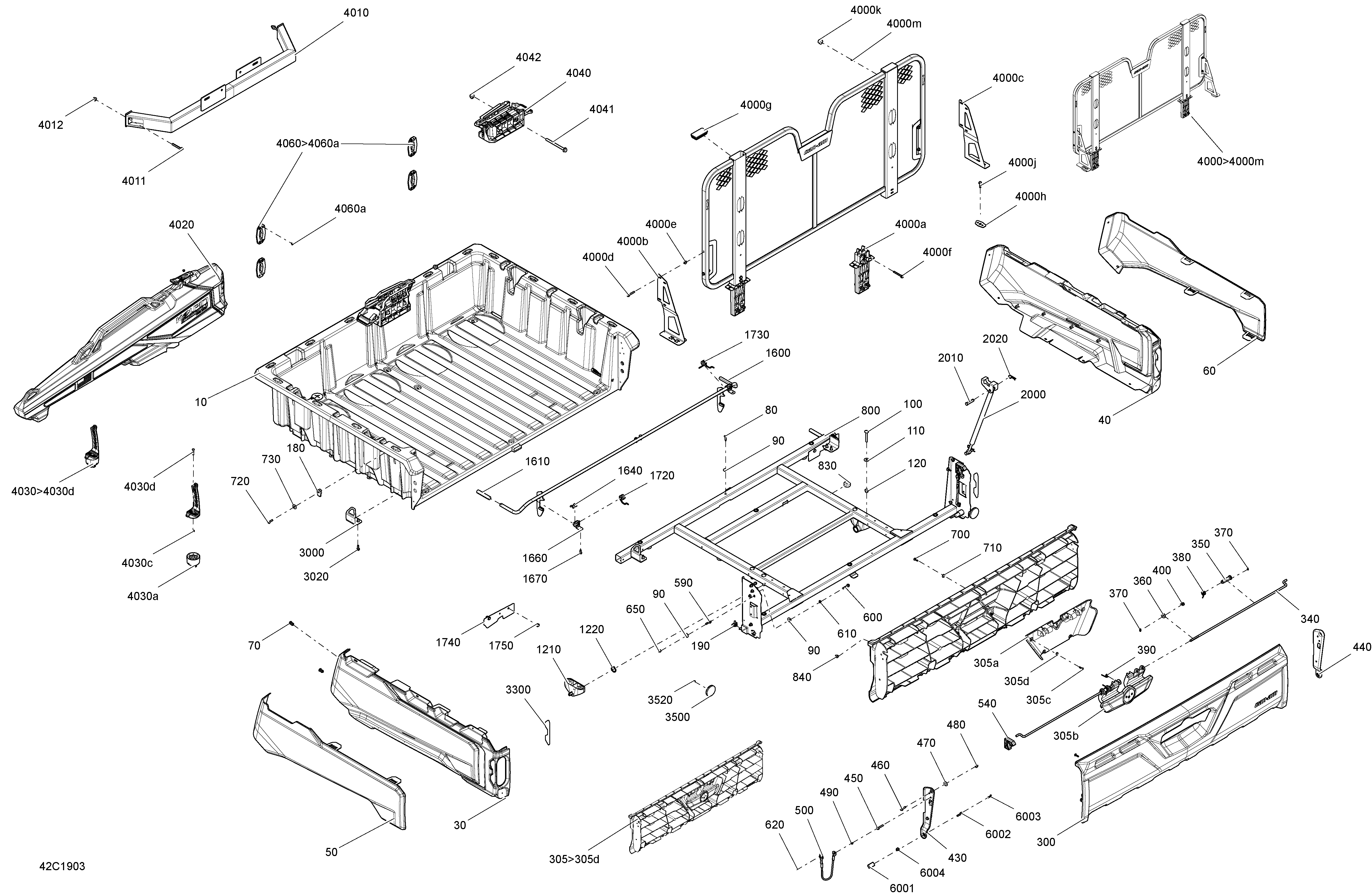

09- Rear Cargo Box - Hunting Edition для BRP 003 - Defender HD10 - North America - 2019
-
№АртикулНазвание
-
30708302578 LH PanelLH Panel
-
40708302579 RH PanelRH Panel
-
50708301929 Camo, LH Fascia Cargo BoxCamo, LH Fascia Cargo Box
-
60708301930 Camo, RH Fascia Cargo BoxCamo, RH Fascia Cargo Box
-
70293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
80250000728 Torx Screw M6 X 25Torx Screw M6 X 25
-
90250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
100207786044 Carriage Bolt M8 X 60Carriage Bolt M8 X 60
-
110234082410 Flat Washer 8 mmFlat Washer 8 mm
-
120233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
180250100177 Panel nut M6Panel nut M6
-
190250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
200708302584 DeflectorDeflector
-
210293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
220517124300 WasherWasher
-
300708301227 Outside TailgateOutside Tailgate
-
305708302914 Panel Cargo Box Ass'y. Includes 305 to 305dPanel Cargo Box Ass'y. Includes 305 to 305d
-
305a708302913 Handle SupportHandle Support
-
305b708302911 HandleHandle
-
305c250000760 Torx Screw Truss Head K50X20 T20Torx Screw Truss Head K50X20 T20
-
305d250200025 Washer M5Washer M5
-
340708301500 Handle RodHandle Rod
-
350708301634 Pivot bushingPivot bushing
-
360708301653 WasherWasher
-
370269800431 HairpinHairpin
-
380705009468 SpringSpring
-
390705009470 SpringSpring
-
400705009471 SpringSpring
-
430708301647 LH Tailgate SupportLH Tailgate Support
-
440708301649 RH Tailgate SupportRH Tailgate Support
-
450207663554 Screw Hex Flange M6 X 35Screw Hex Flange M6 X 35
-
460207662554 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
470250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
480233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
490708300737 BushingBushing
-
500708301491 CableCable
-
540708301501 LockLock
-
590207662554 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
600207663554 Screw Hex Flange M6 X 35Screw Hex Flange M6 X 35
-
610224061121 Flat WasherFlat Washer
-
620708300737 BushingBushing
-
650233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
700250000760 Torx Screw Truss Head K50X20 T20Torx Screw Truss Head K50X20 T20
-
710250200025 Washer M5Washer M5
-
720250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
730250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
800708302740 Cargo Box FrameCargo Box Frame
-
830708001827 Rubber StopperRubber Stopper
-
840293830005 Rubber BumperRubber Bumper
-
1210708301576 Pivot BracketPivot Bracket
-
1220293300131 O-RingO-Ring
-
1600708302296 Latch Ass'yLatch Ass'y
-
1610708300358 Cap Latch LeverCap Latch Lever
-
1640705500033 Half RingHalf Ring
-
1660708301479 Clamp RetainerClamp Retainer
-
1670210261640 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
1720708301983 SpringSpring
-
1730708301984 SpringSpring
-
1740708302267 DeflectorDeflector
-
1750293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
2000708301461 ShockShock
-
2010250400075 Clevis PinClevis Pin
-
2020414575600 Hair PinHair Pin
-
3000708301480 Retaining PlateRetaining Plate
-
3020207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3300704905074 ReflectorReflector
-
3500705011221 Red ReflectorRed Reflector
-
3520232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
4000708302326 Headache Rack Kit. Includes 4000 to 4000mHeadache Rack Kit. Includes 4000 to 4000m
-
4000a715003498 Adjuster FootAdjuster Foot
-
4000b708301759 LH Corner SupportLH Corner Support
-
4000c708301760 RH Corner SupportRH Corner Support
-
4000d229000037 Hexagonal Flanged Screw M6 X 40Hexagonal Flanged Screw M6 X 40
-
4000e233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
4000f229000023 Hexagonal Flanged Screw M6 X 55Hexagonal Flanged Screw M6 X 55
-
4000g705204964 CapCap
-
4000h708301907 PlatePlate
-
4000j250000841 Screw Hex Flange M6 X 25Screw Hex Flange M6 X 25
-
4000k293830179 BumperBumper
-
4000m390401600 Pop Rivet 1/8''Pop Rivet 1/8''
-
4010708302307 Firearm SupportFirearm Support
-
4011207686044 Hex. Flanged Screw M8 x 60Hex. Flanged Screw M8 x 60
-
4012233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
4013250200158 Flat Washer M8Flat Washer M8
-
4020705011442 Firearm Boot CaseFirearm Boot Case
-
4030715003059 Tool Holder Kit. Includes 4030 to 4030cTool Holder Kit. Includes 4030 to 4030c
-
4030a705010209 Tool Holder BaseTool Holder Base
-
4030b232561494 Elastic Stop Nut M6Elastic Stop Nut M6
-
4030c235563054 Torx Screw M6 X 30Torx Screw M6 X 30
-
4040705011441 Firearm MountFirearm Mount
-
4041230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
4042233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
4060715003058 Adaptor Kit. Includes 4060 to 4060aAdaptor Kit. Includes 4060 to 4060a
-
4060a293150102 Rivet 3/16''Rivet 3/16''
-
4070708302424 LH Protector SupportLH Protector Support
-
4080708302425 RH Protector SupportRH Protector Support
-
4090250200158 Flat Washer M8Flat Washer M8
-
4100233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
4110207663554 Screw Hex Flange M6 X 35Screw Hex Flange M6 X 35
