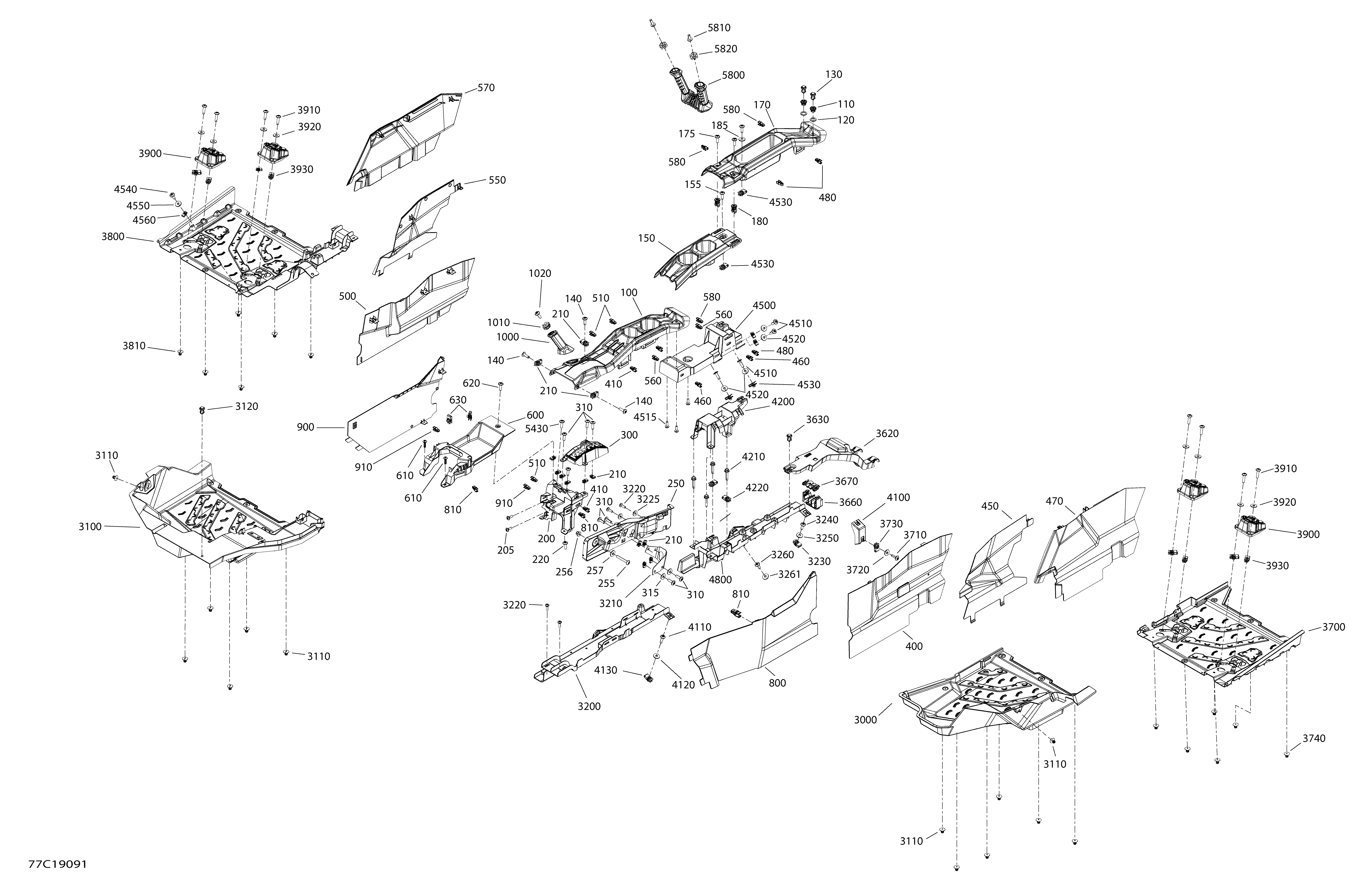

09- Cab Interior Maverick MAX - North America - Lower Section для BRP 006 - Maverick MAX Turbo - North America - 2019
-
№АртикулНазвание
-
100715004068 Front Console KitFront Console Kit
-
110707900133 InsertInsert
-
120503189273 WasherWasher
-
130293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
140250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
150707900492 Middle ConsoleMiddle Console
-
155250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
170707900568 Rear ConsoleRear Console
-
175250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
180705010872 InsertInsert
-
185234062670 Flat Washer, StainlessFlat Washer, Stainless
-
200707900459 Front Central Consol SupportFront Central Consol Support
-
205250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
210250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
220250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
250707900488 Shifter Gate SupportShifter Gate Support
-
255250000748 Torx Screw M6 X 45Torx Screw M6 X 45
-
256233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
257234062670 Flat Washer, StainlessFlat Washer, Stainless
-
300707900644 Lever IndicatorLever Indicator
-
310250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
315234062670 Flat Washer, StainlessFlat Washer, Stainless
-
400707900396 LH Lateral Dash PanelLH Lateral Dash Panel
-
410705010721 ClipClip
-
450707900497 Middle LH Lateral Dash PanelMiddle LH Lateral Dash Panel
-
460705010721 ClipClip
-
470707900571 Rear LH Lateral Dash PanelRear LH Lateral Dash Panel
-
480705010721 ClipClip
-
500707900397 RH Lateral Dash PanelRH Lateral Dash Panel
-
510705010721 ClipClip
-
550707900498 Middle RH Lateral Dash PanelMiddle RH Lateral Dash Panel
-
560705010721 ClipClip
-
570707900572 Rear RH Lateral Dash PanelRear RH Lateral Dash Panel
-
580705010721 ClipClip
-
600707900460 Front Top ConsoleFront Top Console
-
610250000760 Torx Screw Truss Head K50X20 T20Torx Screw Truss Head K50X20 T20
-
620250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
630250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
800707900398 LH Lateral Console PanelLH Lateral Console Panel
-
810705010721 ClipClip
-
900707900399 RH Lateral Console PanelRH Lateral Console Panel
-
910705010721 ClipClip
-
1000707900011 Passenger HandlePassenger Handle
-
1010707900048 Connector TubeConnector Tube
-
1020250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
3000707900339 LH Front FloorLH Front Floor
-
3100707900340 RH Front FloorRH Front Floor
-
3110293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3120293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
3200707900710 Support Hose CentralSupport Hose Central
-
3210707900478 Cable SupportCable Support
-
3220250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
3225250200025 Washer M5Washer M5
-
3230250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
3240250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
3250234062670 Flat Washer, StainlessFlat Washer, Stainless
-
3260250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
3261234062670 Flat Washer, StainlessFlat Washer, Stainless
-
3620707900651 Hose SupportHose Support
-
3630293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
3660707900699 Support Hose RearSupport Hose Rear
-
3670707900729 Support Hose RearSupport Hose Rear
-
3700707900495 Left FloorLeft Floor
-
3710250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
3720234062670 Flat Washer, StainlessFlat Washer, Stainless
-
3730250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
3740293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3800707900496 Rear Right FloorRear Right Floor
-
3810293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3900707900595 Footrest SupportFootrest Support
-
3910250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
3920234062670 Flat Washer, StainlessFlat Washer, Stainless
-
3930250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
4100707900501 Central Consol SupportCentral Consol Support
-
4110250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
4120250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
4130234062670 Flat Washer, StainlessFlat Washer, Stainless
-
4200707900569 Rear Consol SupportRear Consol Support
-
4210207663056 Hex Flanged Screw M6 X 1.0 X 30Hex Flanged Screw M6 X 1.0 X 30
-
4220250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
4500707900573 Consol SupportConsol Support
-
4510250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4515250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
4520234062670 Flat Washer, StainlessFlat Washer, Stainless
-
4530250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
4540250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4550234062670 Flat Washer, StainlessFlat Washer, Stainless
-
4560250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
4800707900711 Support Hose CentralSupport Hose Central
-
5430250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
5800707900575 Passenger HandlePassenger Handle
-
5810250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
5820707900048 Connector TubeConnector Tube
