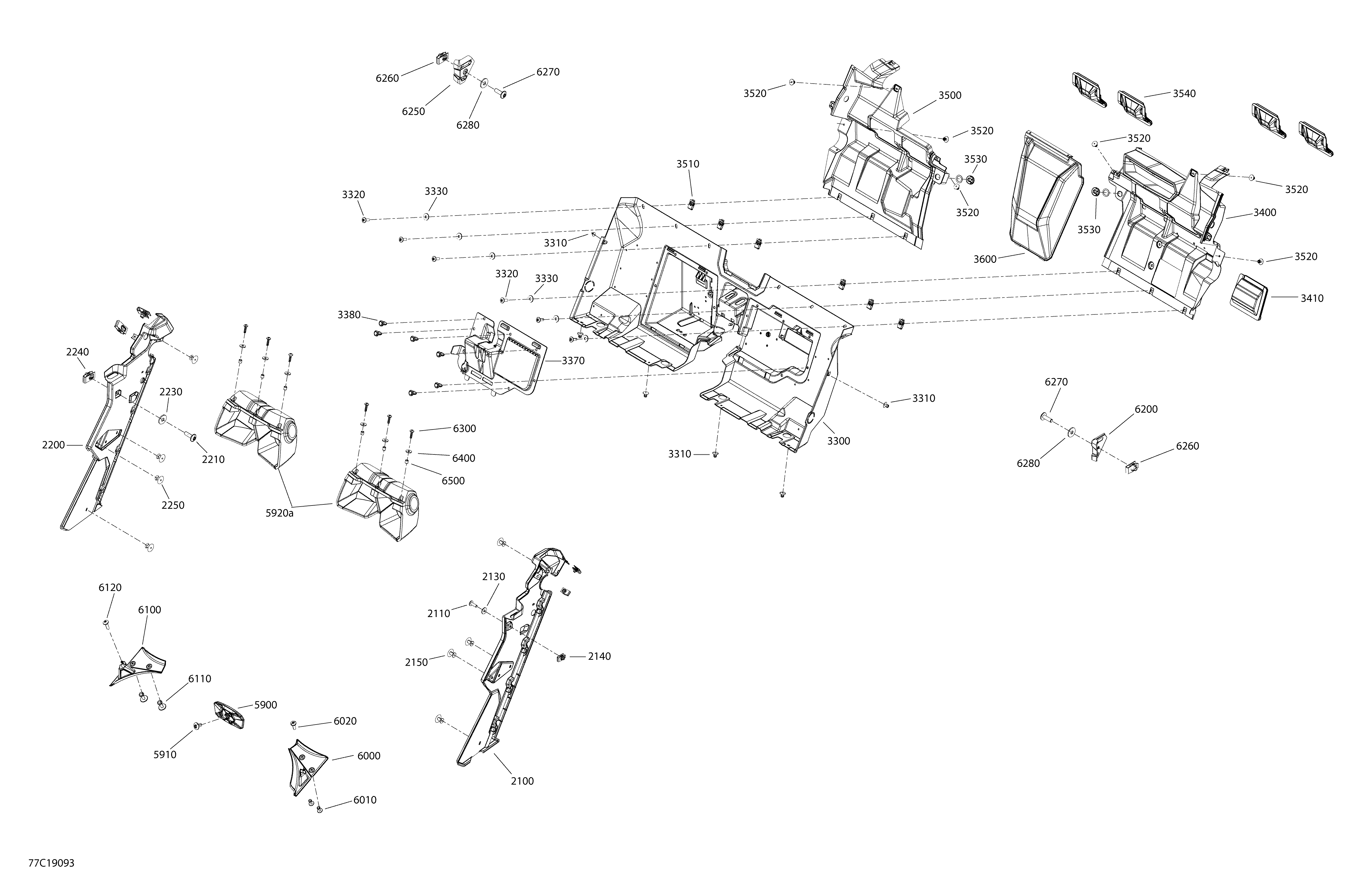

09- Cab Interior Maverick MAX - North America - Rear Upper Section для BRP 006 - Maverick MAX Turbo - North America - 2019
-
№АртикулНазвание
-
2100715005784 LH, Side Panel CoverLH, Side Panel Cover
-
2110250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2130234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2140250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2150293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
2200715005785 RH, Lateral Panel CoverRH, Lateral Panel Cover
-
2210250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2230234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2240250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2250293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
3300707900697 Baffle Lower RBaffle Lower R
-
3310293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3320250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
3330234062670 Flat Washer, StainlessFlat Washer, Stainless
-
3370707900703 Cover Fuse BoxCover Fuse Box
-
3380293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
3400707900632 LH Upper Rear BulkheadLH Upper Rear Bulkhead
-
3410707900652 Bulkhead CoverBulkhead Cover
-
3500707900441 RH Upper Rear BulkheadRH Upper Rear Bulkhead
-
3510250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
3520293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3530705010718 GrommetGrommet
-
3540707900486 Bulkhead CoverBulkhead Cover
-
3600707900442 Central Upper Rear BulkheadCentral Upper Rear Bulkhead
-
5900707900502 Central MirrorCentral Mirror
-
5910250000767 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
5920a707900653 FoamFoam
-
6000707900507 Warning Label PlateWarning Label Plate
-
6010293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
6020250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
6100707900574 Warning Label PlateWarning Label Plate
-
6110293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
6120250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
6200707900615 LH Shoulder PadLH Shoulder Pad
-
6250707900616 RH Shoulder PadRH Shoulder Pad
-
6260250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
6270250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
6280234062670 Flat Washer, StainlessFlat Washer, Stainless
-
6300293900112 Bushing. Not ShownBushing. Not Shown
-
6400250200025 Washer M5. Not ShownWasher M5. Not Shown
-
6500250000760 Torx Screw Truss Head K50X20 T20. Not ShownTorx Screw Truss Head K50X20 T20. Not Shown
