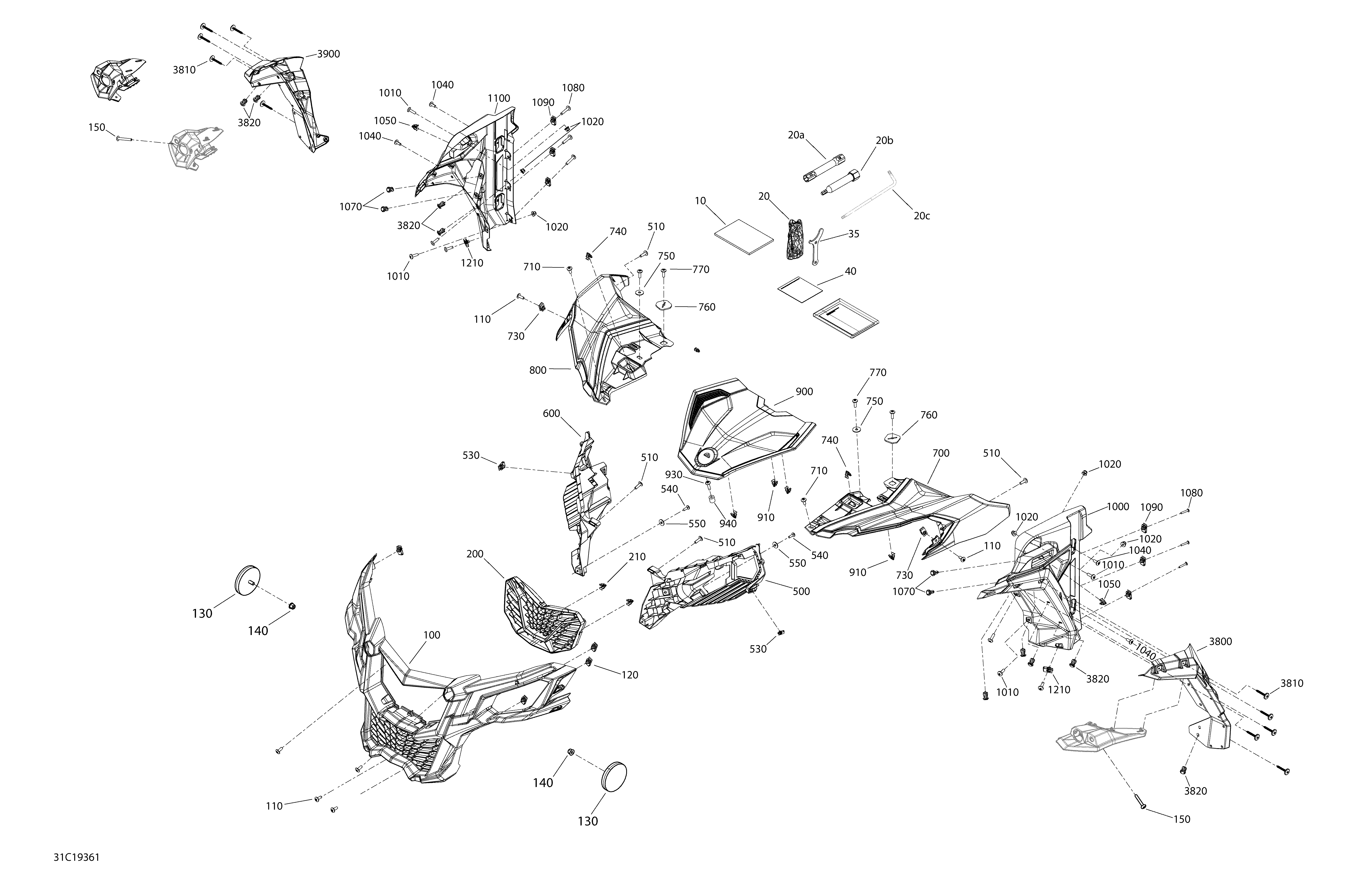

09- Body - 1000R - Front Section для BRP 002 - Maverick Sport 1000R - DPS - North America - 2019
-
№АртикулНазвание
-
10219001967 Operator Guide 2019 EnglishOperator Guide 2019 English
-
20704700169 Tool Kit. Includes 20 to 20cTool Kit. Includes 20 to 20c
-
20a529000085 Socket Wrench 14/16MMSocket Wrench 14/16MM
-
20b529000088 Driven Open ToolDriven Open Tool
-
20c708200340 Torx Key T30Torx Key T30
-
35529000057 Adjustment WrenchAdjustment Wrench
-
40219400038 Waranty FormWaranty Form
-
100705011317 Front FasciaFront Fascia
-
110250000721 Torx ScrewTorx Screw
-
120250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
130705011222 Amber ReflectorAmber Reflector
-
140233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
150250000748 Torx Screw M6 X 45Torx Screw M6 X 45
-
200705011318 Fascia Removable GridFascia Removable Grid
-
210517306478 ClipClip
-
500705011319 LH Headlamp StructureLH Headlamp Structure
-
510250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
530250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
540250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
550234062670 Flat Washer, StainlessFlat Washer, Stainless
-
600705011320 RH Headlamp StructureRH Headlamp Structure
-
700705012411 Red, LH Hood Ass'y. RedRed, LH Hood Ass'y. Red
-
700705012413 Yellow, LH Hood Ass'y. Sunburst YellowYellow, LH Hood Ass'y. Sunburst Yellow
-
710250000721 Torx ScrewTorx Screw
-
730250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
740517306478 ClipClip
-
750250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
760705003841 Support PlateSupport Plate
-
770250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
800705012412 Red, RH Hood Ass'y. RedRed, RH Hood Ass'y. Red
-
800705012414 Yellow, RH Hood Ass'y. Sunburst YellowYellow, RH Hood Ass'y. Sunburst Yellow
-
900705011322 Removable HoodRemovable Hood
-
910517306478 ClipClip
-
930250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
940705502616 BushingBushing
-
1000705011323 LH Front MudguardLH Front Mudguard
-
1010250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
1020233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
1040250000721 Torx ScrewTorx Screw
-
1050517306478 ClipClip
-
1070293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1080250000867 Torx-truss M6 X 35Torx-truss M6 X 35
-
1090250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1100705011324 RH Front MudguardRH Front Mudguard
-
1210250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
3800705011325 LH FRONT 60'' Mud Guard ExtensionLH FRONT 60'' Mud Guard Extension
-
3810250000840 Torx-Screw Truss Head PT.K50 X 40Torx-Screw Truss Head PT.K50 X 40
-
3820293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
3900705011326 RH FRONT 60'' Mudguard ExtensionRH FRONT 60'' Mudguard Extension
