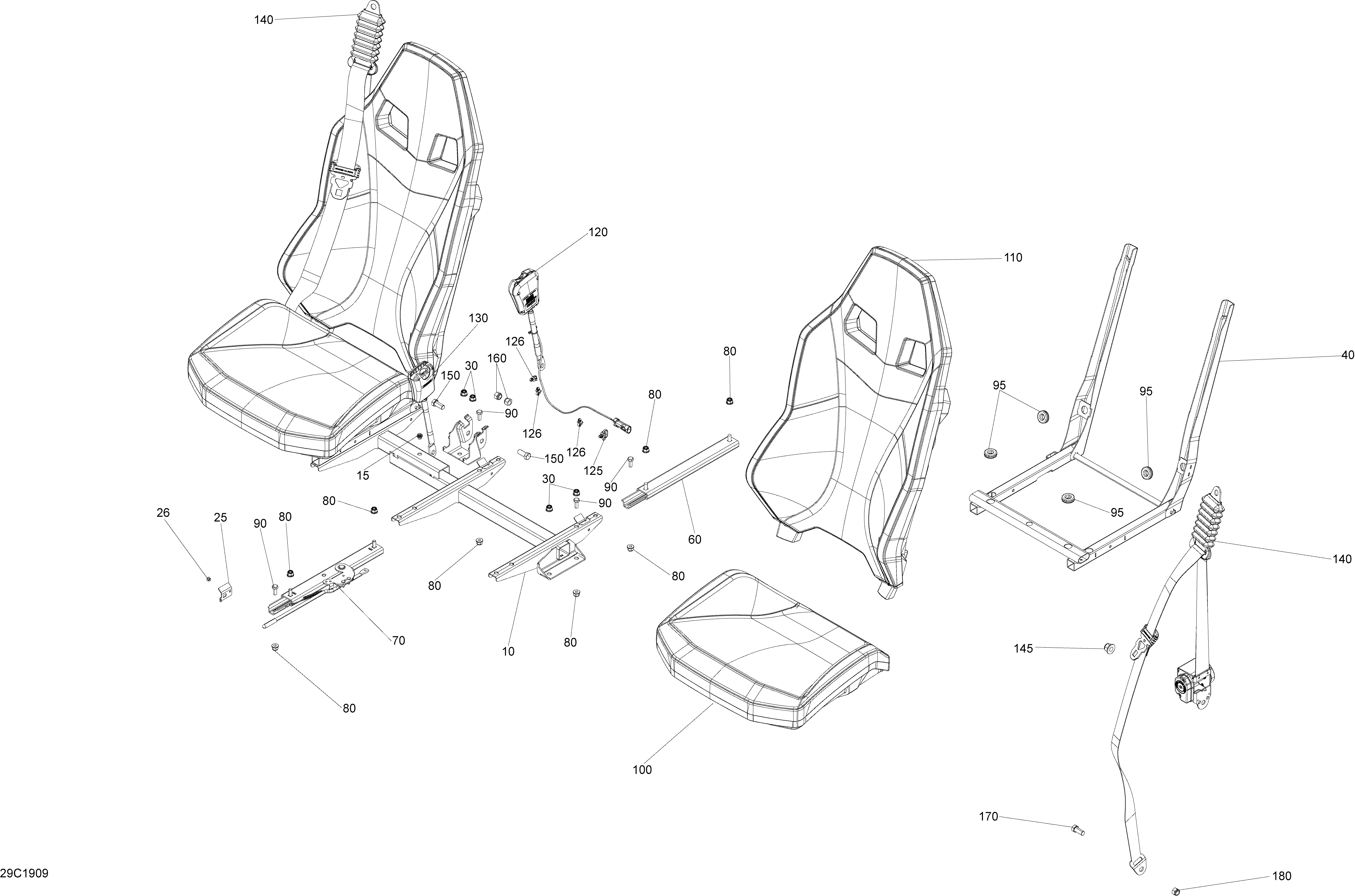

09- Seat для BRP 002 - Maverick Sport 1000R - DPS - North America - 2019
-
№АртикулНазвание
-
10708002421 Seat MemberSeat Member
-
15250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
25708002640 Seat StopperSeat Stopper
-
26390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
30233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
40708002423 Seat FrameSeat Frame
-
60708000848 LH RailLH Rail
-
70708002711 RH RailRH Rail
-
80233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
90207182044 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
95517303756 GrommetGrommet
-
100708002862 Cushion Assembly. Package BaseCushion Assembly. Package Base
-
100708002863 Cushion Assembly. Package DPSCushion Assembly. Package DPS
-
110708002430 Backrest Ass'y. Package BaseBackrest Ass'y. Package Base
-
110708002859 Backrest Ass'y. Package DPSBackrest Ass'y. Package DPS
-
120708002331 Driver BuckleDriver Buckle
-
125710005237 Christmas Tree Tie-RapChristmas Tree Tie-Rap
-
126710003168 Christmas Tree Tie-Rap 200 mmChristmas Tree Tie-Rap 200 mm
-
130708002329 Passenger BucklePassenger Buckle
-
140708002712 Safety BeltSafety Belt
-
145233221416 Elastic Flange Nut M12Elastic Flange Nut M12
-
150250000521 Hex. Cap Screw 7/16'' X 1''Hex. Cap Screw 7/16'' X 1''
-
160250100183 Lock Nut Nylon 7/16Lock Nut Nylon 7/16
-
170250000521 Hex. Cap Screw 7/16'' X 1''Hex. Cap Screw 7/16'' X 1''
-
180250100183 Lock Nut Nylon 7/16Lock Nut Nylon 7/16
-
1000708002443 Safet Belt Screw. Not ShownSafet Belt Screw. Not Shown
-
1010708000891 Position Washer. Not ShownPosition Washer. Not Shown
