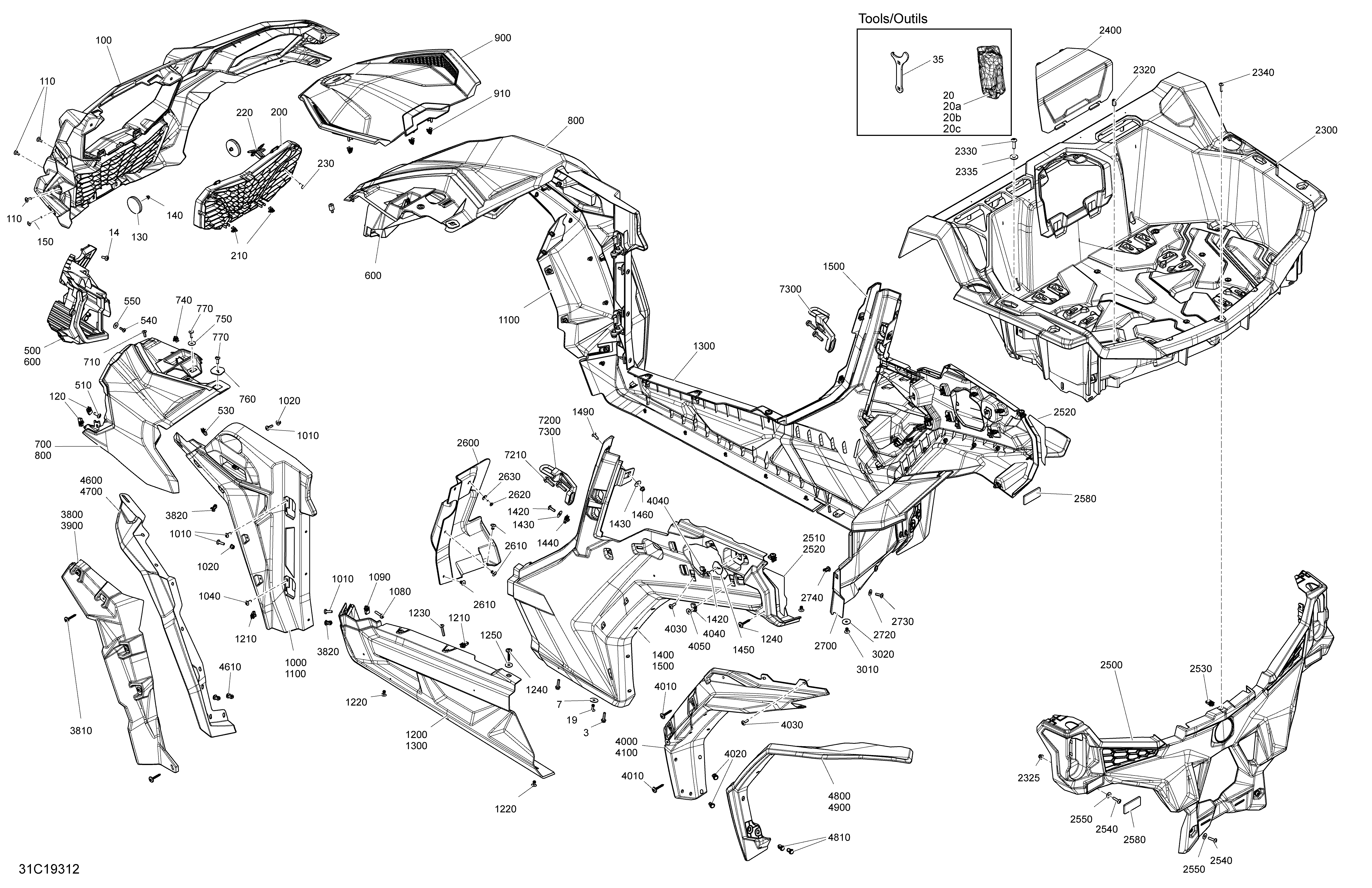

09- Body - Package XMR для BRP 004 - Maverick Sport 1000R - XMR - North America - 2019
-
№АртикулНазвание
-
20704700169 Tool Kit. Includes 20 to 20cTool Kit. Includes 20 to 20c
-
20a529000085 Socket Wrench 14/16MMSocket Wrench 14/16MM
-
20b529000088 Driven Open ToolDriven Open Tool
-
20c708200340 Torx Key T30Torx Key T30
-
35529000057 Adjustment WrenchAdjustment Wrench
-
100705011317 Front FasciaFront Fascia
-
110250000721 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
120250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
130705011222 Amber ReflectorAmber Reflector
-
140233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
150250000748 Torx Screw M6 X 45Torx Screw M6 X 45
-
200705011318 Fascia Removable GridFascia Removable Grid
-
210517306478 ClipClip
-
220705012245 Grill LogoGrill Logo
-
230250000725 Screw M4 X 16Screw M4 X 16
-
500705011319 LH Headlamp StructureLH Headlamp Structure
-
510250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
530250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
540250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
550234062670 Flat Washer, StainlessFlat Washer, Stainless
-
600705011320 RH Headlamp StructureRH Headlamp Structure
-
700705012413 Yellow, LH Hood Ass'yYellow, LH Hood Ass'y
-
710250000721 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
740517306478 ClipClip
-
750250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
760705003841 Support PlateSupport Plate
-
770250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
800705012414 Yellow, RH Hood Ass'yYellow, RH Hood Ass'y
-
900705011322 Removable HoodRemovable Hood
-
910517306478 ClipClip
-
1000705011323 LH Front MudguardLH Front Mudguard
-
1010250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
1020233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
1040250000721 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
1080250000867 Torx-truss Hex. Screw M6X35, Nylon ProtTorx-truss Hex. Screw M6X35, Nylon Prot
-
1090250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1100705011324 RH Front MudguardRH Front Mudguard
-
1200705011331 LH Rocker PanelLH Rocker Panel
-
1210250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1220293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
1230250000867 Torx-truss Hex. Screw M6X35, Nylon ProtTorx-truss Hex. Screw M6X35, Nylon Prot
-
1240250000840 Torx-Screw Truss Head PT.K50 X 40Torx-Screw Truss Head PT.K50 X 40
-
1250250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
1300705011332 RH Rocker PanelRH Rocker Panel
-
1400705011335 LH Rear PannelLH Rear Pannel
-
1420250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1430250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
1440250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1450705003841 Support PlateSupport Plate
-
1460233161464 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
1490250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1500705011336 RH Rear PannelRH Rear Pannel
-
2300705011337 Rear BoxRear Box
-
2320250100207 Hex. Coupling Nut M6Hex. Coupling Nut M6
-
2325233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
2330250000745 Hex Torx Truss M8 X30Hex Torx Truss M8 X30
-
2335234082670 Flat Washer, StainlessFlat Washer, Stainless
-
2340250000807 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
2400715005809 Liquid Acces CoverLiquid Acces Cover
-
2500705011426 Rear FasciaRear Fascia
-
2510704906815 LH Rear ReflectorLH Rear Reflector
-
2520704906816 RH Rear ReflectorRH Rear Reflector
-
2530250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2540250000807 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
2550234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2580520001820 Red ReflectorRed Reflector
-
2600705011512 LH Rear Inner FenderLH Rear Inner Fender
-
2610293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
2620250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
2630250200025 Washer M5Washer M5
-
2700705011513 RH Rear Inner FenderRH Rear Inner Fender
-
2720234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2730250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2740293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
3010293150087 Pop Rivet 3/16”Pop Rivet 3/16”
-
3020224060251 WasherWasher
-
3800705011325 LH FRONT 60'' Mud Guard ExtensionLH FRONT 60'' Mud Guard Extension
-
3810250000840 Torx-Screw Truss Head PT.K50 X 40Torx-Screw Truss Head PT.K50 X 40
-
3820293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
3900705011326 RH FRONT 60'' Mudguard ExtensionRH FRONT 60'' Mudguard Extension
-
4000705012097 LH Rear Mud GuardLH Rear Mud Guard
-
4010250000840 Torx-Screw Truss Head PT.K50 X 40Torx-Screw Truss Head PT.K50 X 40
-
4020293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
4030250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4050234062670 Flat Washer, StainlessFlat Washer, Stainless
-
4100705012098 RH Rear 60'' Mud Guard ExtensionRH Rear 60'' Mud Guard Extension
-
4600705012762 LH Front Fender ExtenderLH Front Fender Extender
-
4610293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
4700705012763 RH Front Fender ExtenderRH Front Fender Extender
-
4800705012764 LH Rear Fender ExtenderLH Rear Fender Extender
-
4810293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
4900705012765 RH Rear Fender ExtenderRH Rear Fender Extender
-
7200705207027 LH Stricker SupportLH Stricker Support
-
7210207583044 Hex. Flanged Screw M8 X 30, Scotch GripHex. Flanged Screw M8 X 30, Scotch Grip
-
7300705207028 RH Stricker SupportRH Stricker Support
