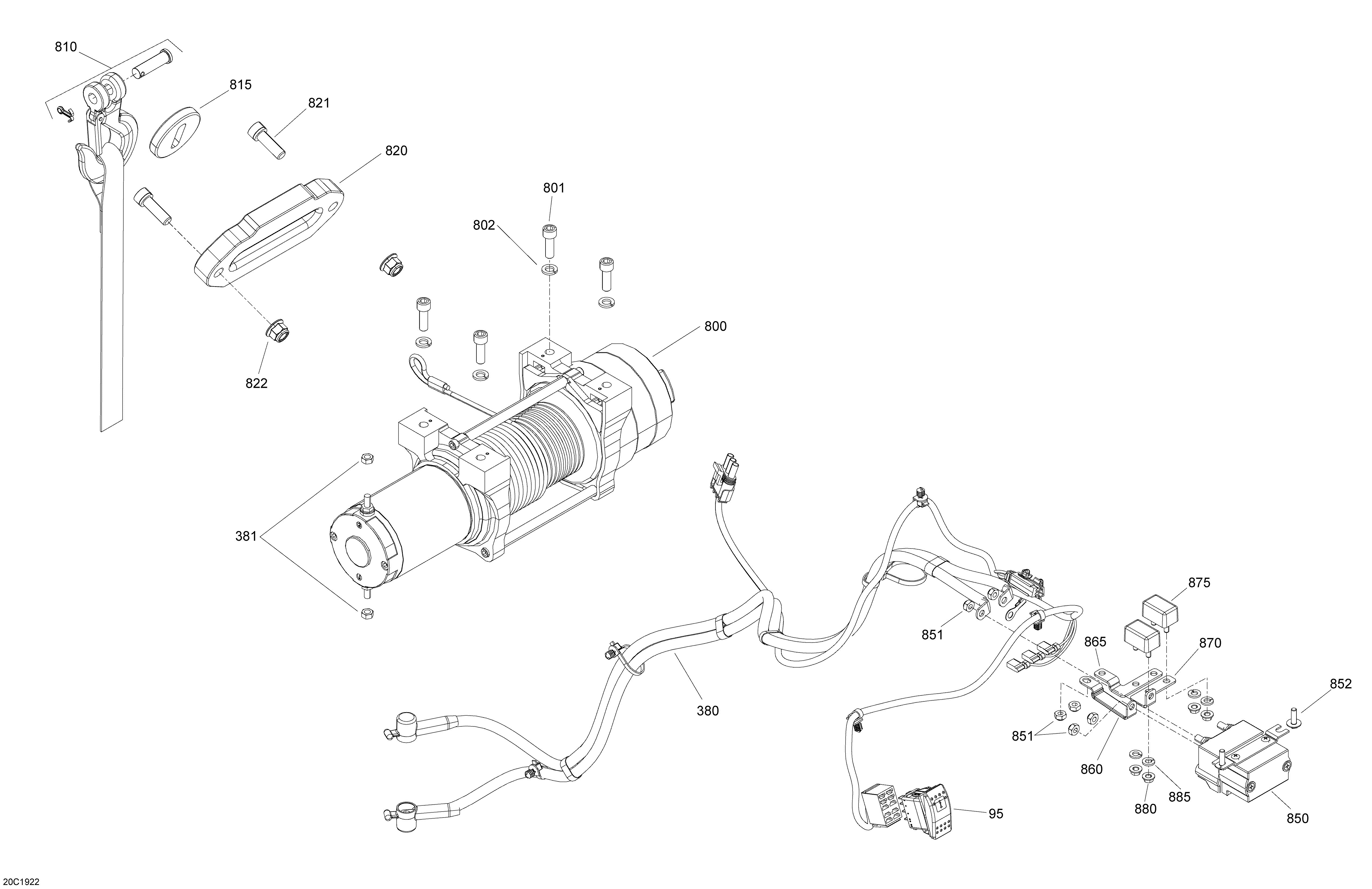

10- Electrical Winch для BRP 004 - Maverick Sport 1000R - XMR - North America - 2019
-
№АртикулНазвание
-
95710002052 SwitchSwitch
-
380710005364 Winch CablesWinch Cables
-
381232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
800710005659 WinchWinch
-
801205082544 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
802234181401 Lock Washer 8 mmLock Washer 8 mm
-
810715003523 Hook and Strap kitHook and Strap kit
-
815710005142 Winch Cable StopperWinch Cable Stopper
-
820715004449 Winch Cable GuideWinch Cable Guide
-
821205003044 Socket Screw M10 x 30Socket Screw M10 x 30
-
822233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
850703500947 SolenoidSolenoid
-
851232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
852250000959 Screw PT Type K-50 X 16Screw PT Type K-50 X 16
-
860710004772 Power BarPower Bar
-
865710004872 Power BarPower Bar
-
870710004873 Power BarPower Bar
-
875703500948 Breaker 50 AmpBreaker 50 Amp
-
880250100071 Hex. Flanged Nut M5Hex. Flanged Nut M5
-
885234161601 Lock Washer Helical M6Lock Washer Helical M6
