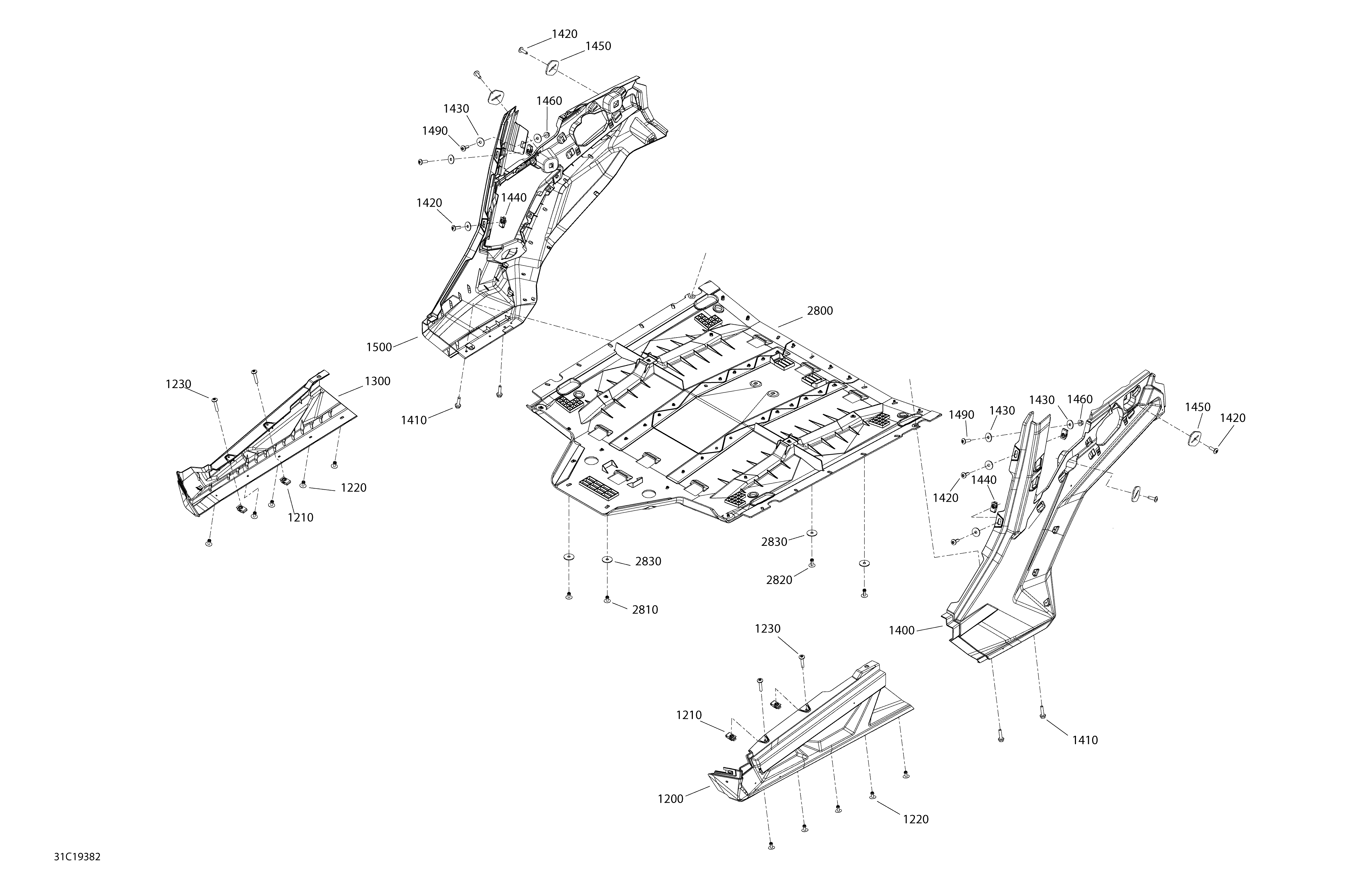

09- Body Maverick Trail - 800 - Middle Section для BRP 001 - Maverick Trail 800 - BASE_DPS - North America - 2019
-
№АртикулНазвание
-
1200705011331 LH Rocker PanelLH Rocker Panel
-
1210250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1220293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
1230250000867 Torx-truss M6 X 35Torx-truss M6 X 35
-
1300705011332 RH Rocker PanelRH Rocker Panel
-
1400705011335 LH Rear PannelLH Rear Pannel
-
1410207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1420250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1430250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
1440250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1450705003841 Support PlateSupport Plate
-
1460233161464 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
1490250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1500705011336 RH Rear PannelRH Rear Pannel
-
2800705011427 Front Skid PlateFront Skid Plate
-
2810293150087 Pop Rivet 3/16”Pop Rivet 3/16”
-
2820293150087 Pop Rivet 3/16”Pop Rivet 3/16”
-
2830224060251 WasherWasher
-
10000250000717 Torx Head Screw M6 X 16. Non ShownTorx Head Screw M6 X 16. Non Shown
