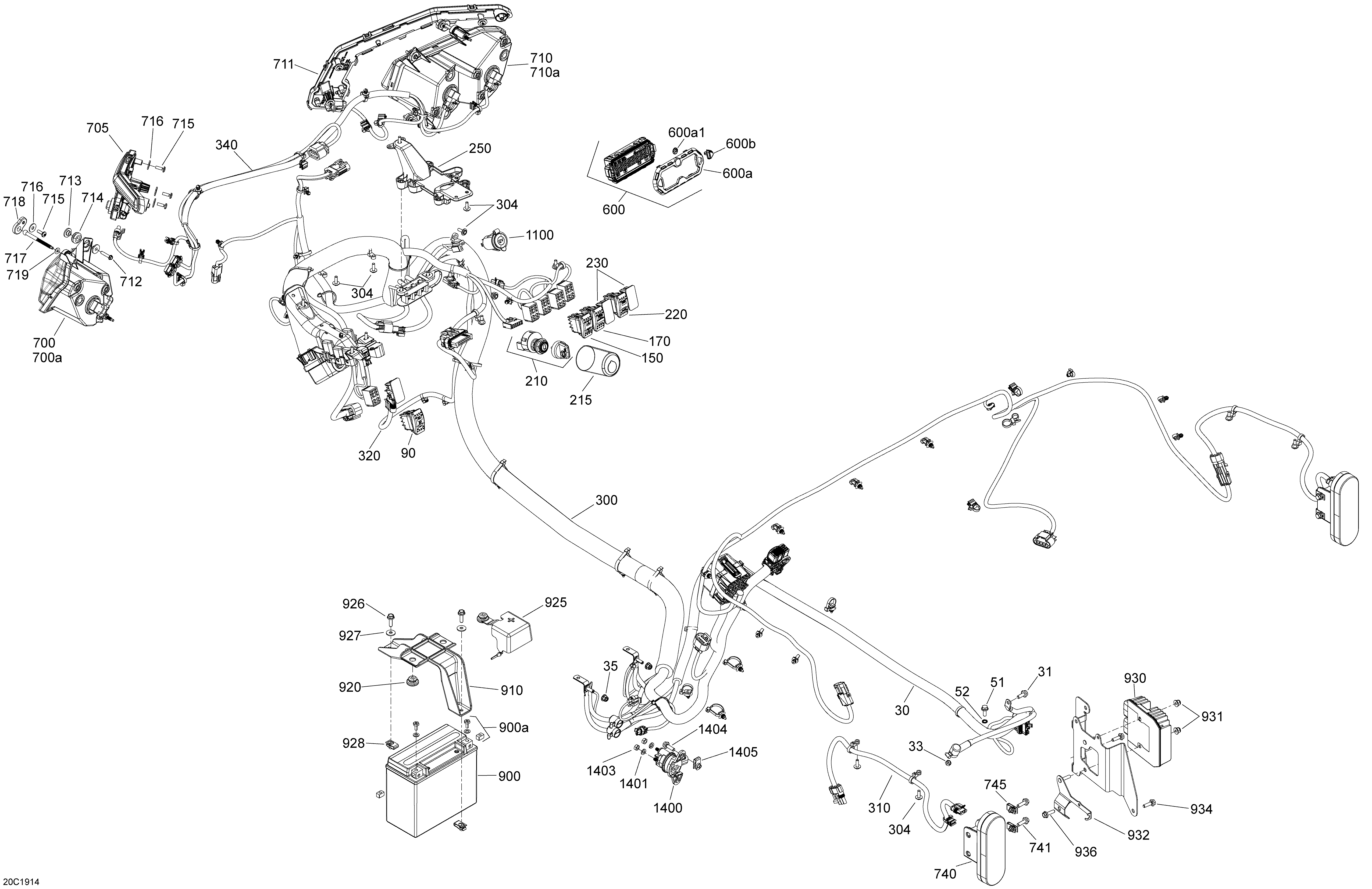

10- Electrical для BRP 001 - Maverick Trail 800 - BASE_DPS - North America - 2019
-
№АртикулНазвание
-
30710006244 Starter Wiring HarnessStarter Wiring Harness
-
31207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
33232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
35233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
51207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
52234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
90710004492 Light SwitchLight Switch
-
150710004814 2 X 4 Switch2 X 4 Switch
-
170710005470 Differential Lock Switch. Package DPSDifferential Lock Switch. Package DPS
-
210710004198 Ignition Switch With KeysIgnition Switch With Keys
-
215710005739 Key Switch ProtectorKey Switch Protector
-
220710005909 Driving Mode Switch. Package DPSDriving Mode Switch. Package DPS
-
230710001999 Plug CarlingPlug Carling
-
250710005672 Housing SupportHousing Support
-
300710006403 Main Wiring HarnessMain Wiring Harness
-
304250000959 Screw PT Type K-50 X 16Screw PT Type K-50 X 16
-
310710005363 Rear HarnessRear Harness
-
320710005929 Trottle Pedal HarnessTrottle Pedal Harness
-
340710006257 Front Wiring HarnessFront Wiring Harness
-
600710005553 Speedometer. Includes 600 to 600cSpeedometer. Includes 600 to 600c
-
600a710001183 Trim Ring Ass'y. Includes 600a to 600a1Trim Ring Ass'y. Includes 600a to 600a1
-
600a1704904615 BRP Logo, 13 mmBRP Logo, 13 mm
-
600b715900265 ButtonButton
-
700710006422 LH Headlamp. Includes 700 to 700aLH Headlamp. Includes 700 to 700a
-
700a715900141 Bulb 12V 55WBulb 12V 55W
-
705705011485 LH Fascia Trim. Package BASELH Fascia Trim. Package BASE
-
705710004994 LH Signature Beam. Package DPSLH Signature Beam. Package DPS
-
710710006423 RH Headlamp. Includes 710 to 710aRH Headlamp. Includes 710 to 710a
-
710a715900141 Bulb 12V 55WBulb 12V 55W
-
711705011486 RH Fascia Trim. Package BASERH Fascia Trim. Package BASE
-
711710004995 RH Signature Beam. Package DPSRH Signature Beam. Package DPS
-
712241152540 Hex. Flanged Screw K50 X 2.24 X 25Hex. Flanged Screw K50 X 2.24 X 25
-
713710004749 Shoulder BushingShoulder Bushing
-
714293720053 GrommetGrommet
-
715250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
716234062670 Flat Washer, StainlessFlat Washer, Stainless
-
717710005837 Ajustment ScrewAjustment Screw
-
718710005097 Adjustment GuideAdjustment Guide
-
719293300192 O-RingO-Ring
-
740710004497 Tail LightTail Light
-
741207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
745250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
900410301203 Battery Ass'y, 18 Amperes. Includes 900 to 900aBattery Ass'y, 18 Amperes. Includes 900 to 900a
-
900a250000282 Battery Bolt KitBattery Bolt Kit
-
910710005673 Fixation PlateFixation Plate
-
920705003666 Rubber GrommetRubber Grommet
-
925710005930 Battery Cable CapBattery Cable Cap
-
926207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
927234062670 Flat Washer, StainlessFlat Washer, Stainless
-
928250100198 Panel Nut , M6 X 1.0Panel Nut , M6 X 1.0
-
930710005842 Voltage RegulatorVoltage Regulator
-
931233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
932710006402 Voltage Regulator AttachVoltage Regulator Attach
-
934710006656 Voltage Regulator SupportVoltage Regulator Support
-
936207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
1100710005374 12V Power Outlet12V Power Outlet
-
1400278003012 Starter RelayStarter Relay
-
1401234161601 Lock Washer Helical M6Lock Washer Helical M6
-
1403232061600 Hex. Nut M6Hex. Nut M6
-
1404207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
1405250100198 Panel Nut , M6 X 1.0Panel Nut , M6 X 1.0
