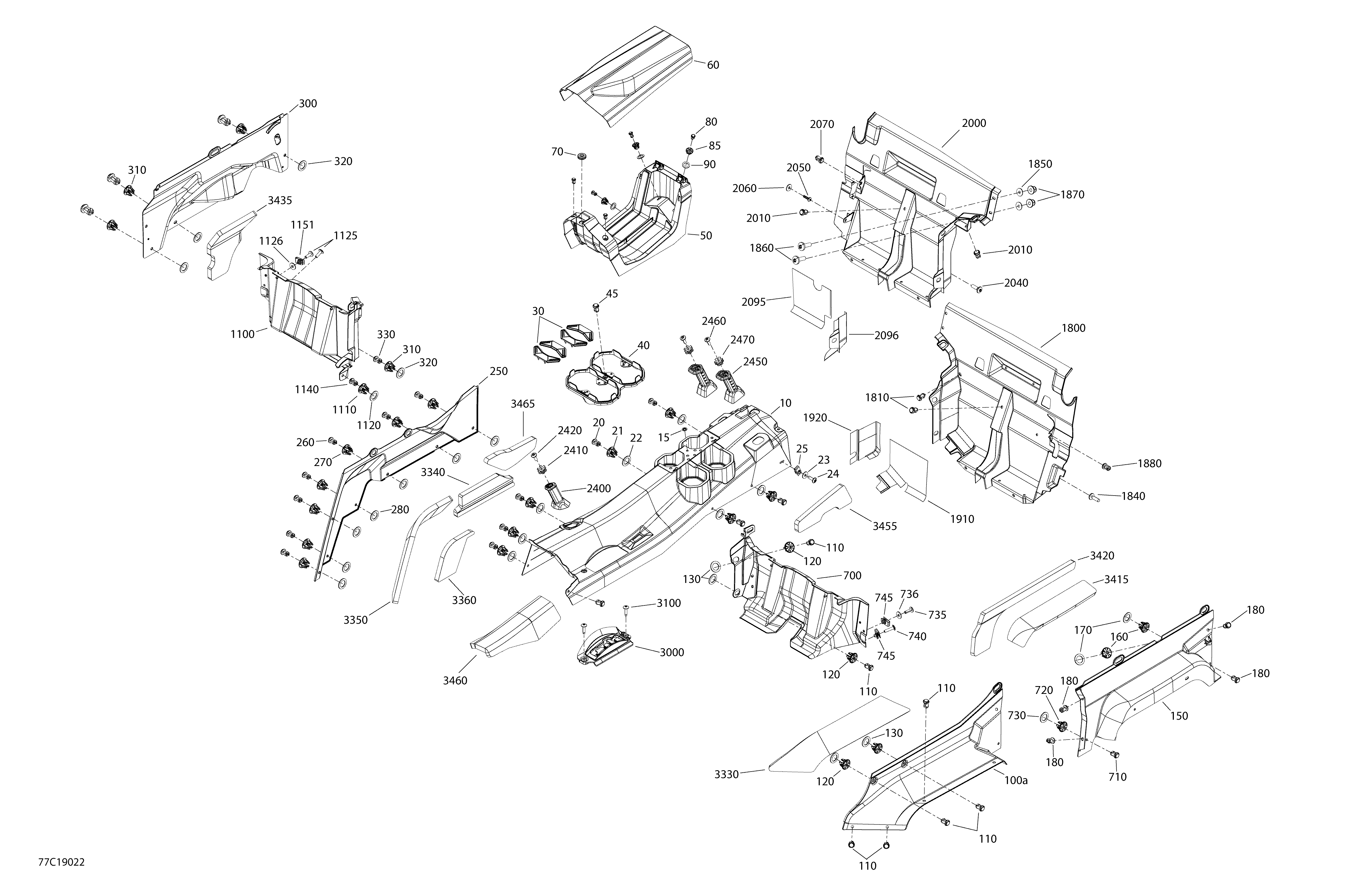

09- Cab Interior Commander MAX - Upper Section для BRP 003 - Commander MAX 1000R EFI - International - 2019
-
№АртикулНазвание
-
10715005503 Front Console Ass'yFront Console Ass'y
-
15732610072 Push NutPush Nut
-
20293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
21707900133 InsertInsert
-
22503189273 WasherWasher
-
23234062670 Flat Washer, StainlessFlat Washer, Stainless
-
24250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
25250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
30707900036 Cup RetainerCup Retainer
-
40707900100 Cup HolderCup Holder
-
45293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
50707900075 Rear Central ConsoleRear Central Console
-
60707900229 Rear Console Cover KitRear Console Cover Kit
-
70517303756 GrommetGrommet
-
80293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
85707900133 InsertInsert
-
90503189273 WasherWasher
-
100a707900001 LH Side ConsoleLH Side Console
-
110293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
120707900133 InsertInsert
-
130503189273 WasherWasher
-
150707900633 Rear Left DashRear Left Dash
-
160707900133 InsertInsert
-
170503189273 WasherWasher
-
180293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
250707900002 RH Side ConsoleRH Side Console
-
260293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
270707900133 InsertInsert
-
280503189273 WasherWasher
-
300707900080 RH Rear Console PanelRH Rear Console Panel
-
310707900133 InsertInsert
-
320503189273 WasherWasher
-
330293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
700707900082 LH Rear Upper Floor CoverLH Rear Upper Floor Cover
-
710293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
720707900133 InsertInsert
-
730503189273 WasherWasher
-
735250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
736234062670 Flat Washer, StainlessFlat Washer, Stainless
-
740250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
745250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1100707900083 Seat CoverSeat Cover
-
1110707900133 InsertInsert
-
1120503189273 WasherWasher
-
1125250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1126234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1140293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1151250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1800707900220 LH Rear DeflectorLH Rear Deflector
-
1810293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1840250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
1850250200040 Flat WasherFlat Washer
-
1860250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
1870233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
1880293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1910707900182 Heat ShieldHeat Shield
-
1920707900183 Heat ShieldHeat Shield
-
2000707900219 RH Rear DeflectorRH Rear Deflector
-
2010293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
2040250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
2050250000760 Torx Screw Truss Head K50X20 T20Torx Screw Truss Head K50X20 T20
-
2060234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2070293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
2095707900167 Heat ShieldHeat Shield
-
2096707900184 Heat ShieldHeat Shield
-
2400707900011 Passenger HandlePassenger Handle
-
2410250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2420707900048 Connector TubeConnector Tube
-
2450707900103 HandleHandle
-
2460250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2470707900048 Connector TubeConnector Tube
-
3000707900088 Shift Lever IndicatorShift Lever Indicator
-
3100250000728 Torx Screw M6 X 25Torx Screw M6 X 25
-
3330707900621 LH Lower Lateral Console FoamLH Lower Lateral Console Foam
-
3340707900622 RH Lateral Console FoamRH Lateral Console Foam
-
3350707900623 RH Lateral Console FoamRH Lateral Console Foam
-
3360707900624 RH Lateral Console FoamRH Lateral Console Foam
-
3415707900625 LH Rear Lateral FoamLH Rear Lateral Foam
-
3420707900626 LH Rear Lateral FoamLH Rear Lateral Foam
-
3435707900627 RH Rear Lateral FoamRH Rear Lateral Foam
-
3455707900628 Front Central FoamFront Central Foam
-
3460707900629 Front Central FoamFront Central Foam
-
3465707900630 Front Central FoamFront Central Foam
-
3600250000742 Torx Screw M5 X 14. Not ShownTorx Screw M5 X 14. Not Shown
-
3610250200040 Flat Washer. Not ShownFlat Washer. Not Shown
-
3615207562054 Flanged Hex. Screw S.GRIP M6 X 20. Not ShownFlanged Hex. Screw S.GRIP M6 X 20. Not Shown
-
3620207682044 Hex. Flanged Screw M8 X 20. Not ShownHex. Flanged Screw M8 X 20. Not Shown
-
3625233281414 Hex. Flanged Elastic Nut M8. Not ShownHex. Flanged Elastic Nut M8. Not Shown
