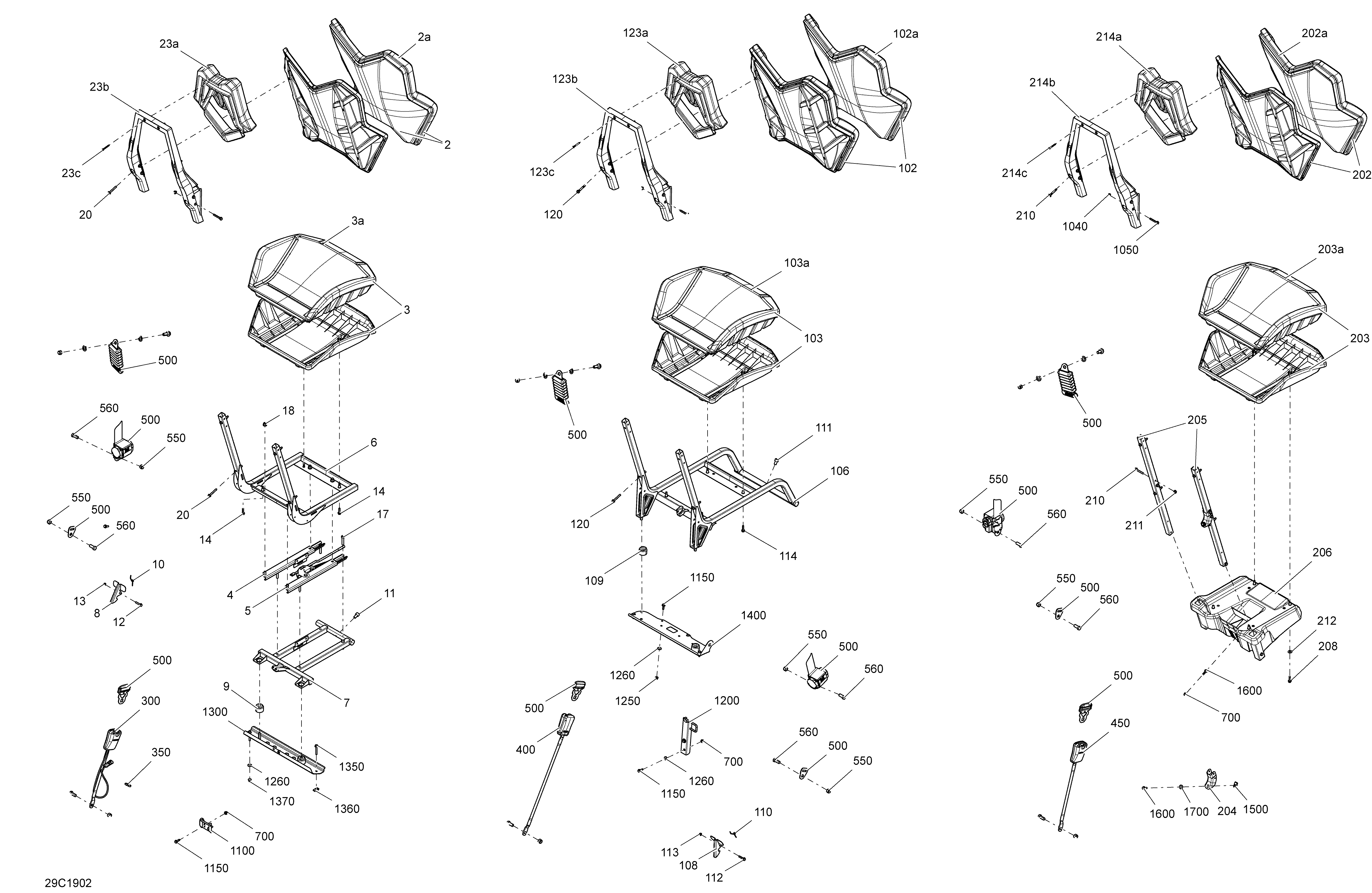

09- Seat для BRP 003 - Commander MAX 1000R EFI - International - 2019
-
№АртикулНазвание
-
2703500945 Backrest Ass'y. Packages DPS & XT. Includes 2 to 2aBackrest Ass'y. Packages DPS & XT. Includes 2 to 2a
-
2708002616 Backrest Ass'y. Package LTD. Includes 2 to 2aBackrest Ass'y. Package LTD. Includes 2 to 2a
-
2a708000675 Backrest Cover. Packages DPS & XTBackrest Cover. Packages DPS & XT
-
2a708002618 Backrest Cover. Package LTDBackrest Cover. Package LTD
-
3703500943 Cushion Ass'y. Packages DPS & XT. Includes 3 to 3aCushion Ass'y. Packages DPS & XT. Includes 3 to 3a
-
3708002617 Cushion Ass'y. Package LTD. Includes 3 to 3aCushion Ass'y. Package LTD. Includes 3 to 3a
-
3a708001103 Seat Cover. Packages DPS & XTSeat Cover. Packages DPS & XT
-
3a708002619 Seat Cover. Package LTDSeat Cover. Package LTD
-
4708000848 LH RailLH Rail
-
5708001739 RH RailRH Rail
-
6708001356 Operator Seat FrameOperator Seat Frame
-
7708001174 Seat MemberSeat Member
-
8708001355 Seat LatchSeat Latch
-
9708001671 Rubber BumperRubber Bumper
-
10708000921 SpringSpring
-
11205501644 Socket Screw M10 X 16Socket Screw M10 X 16
-
12207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
13232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
14207562544 Hex. Flanged Screw M6X1.0X25Hex. Flanged Screw M6X1.0X25
-
17205084044 Socket Head Screw M8 X 1.25 X 40Socket Head Screw M8 X 1.25 X 40
-
18233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
20250000672 Hex. Flange Screw M6Hex. Flange Screw M6
-
23a708001074 Head RestHead Rest
-
23b708001245 Seat SupportSeat Support
-
23C250000897 Hex. Flange Screw K50 X 40Hex. Flange Screw K50 X 40
-
102703500945 Backrest Ass'y. Packages DPS & XT. Includes 102 to 102aBackrest Ass'y. Packages DPS & XT. Includes 102 to 102a
-
102708002616 Backrest Ass'y. Package LTD. Includes 102 to 102aBackrest Ass'y. Package LTD. Includes 102 to 102a
-
102a708000675 Backrest Cover. Packages DPS & XTBackrest Cover. Packages DPS & XT
-
102a708002618 Backrest Cover. Package LTDBackrest Cover. Package LTD
-
103703500943 Cushion Ass'y. Packages DPS & XT. Includes 103 to 103aCushion Ass'y. Packages DPS & XT. Includes 103 to 103a
-
103708002617 Cushion Ass'y. Package LTD. Includes 103 to 103aCushion Ass'y. Package LTD. Includes 103 to 103a
-
103a708001103 Seat Cover. Packages DPS & XTSeat Cover. Packages DPS & XT
-
103a708002619 Seat Cover. Package LTDSeat Cover. Package LTD
-
106708001357 Passenger Seat FramePassenger Seat Frame
-
108708001355 Seat LatchSeat Latch
-
109708001671 Rubber BumperRubber Bumper
-
110708000921 SpringSpring
-
111205501644 Socket Screw M10 X 16Socket Screw M10 X 16
-
112207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
113232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
114207562544 Hex. Flanged Screw M6X1.0X25Hex. Flanged Screw M6X1.0X25
-
120250000672 Hex. Flange Screw M6Hex. Flange Screw M6
-
123a708001074 Head RestHead Rest
-
123b708001245 Seat SupportSeat Support
-
123c250000897 Hex. Flange Screw K50 X 40Hex. Flange Screw K50 X 40
-
202703500945 Backrest Ass'y. Packages DPS & XT. Includes 202 to 202aBackrest Ass'y. Packages DPS & XT. Includes 202 to 202a
-
202708002616 Backrest Ass'y. Package LTD. Includes 202 to 202aBackrest Ass'y. Package LTD. Includes 202 to 202a
-
202a708000675 Backrest Cover. Packages DPS & XTBackrest Cover. Packages DPS & XT
-
202a708002618 Backrest Cover. Package LTDBackrest Cover. Package LTD
-
203703500943 Cushion Ass'y. Packages DPS & XT. Includes 203 to 203aCushion Ass'y. Packages DPS & XT. Includes 203 to 203a
-
203708002617 Cushion Ass'y. Package LTD. Includes 203 to 203aCushion Ass'y. Package LTD. Includes 203 to 203a
-
203a708001103 Seat Cover. Packages DPS & XTSeat Cover. Packages DPS & XT
-
203a708002619 Seat Cover. Package LTDSeat Cover. Package LTD
-
204708001474 Rear AnchorRear Anchor
-
205708001476 Side TubeSide Tube
-
206708001198 Seat SupportSeat Support
-
208207562544 Hex. Flanged Screw M6X1.0X25Hex. Flanged Screw M6X1.0X25
-
210250000672 Hex. Flange Screw M6Hex. Flange Screw M6
-
211233161464 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
212234062670 Flat Washer, StainlessFlat Washer, Stainless
-
214a708001074 Head RestHead Rest
-
214b708001245 Seat SupportSeat Support
-
214c250000897 Hex. Flange Screw K50 X 40Hex. Flange Screw K50 X 40
-
300708002061 Driver Buckle SideDriver Buckle Side
-
400708002064 Passenger Buckle SidePassenger Buckle Side
-
450708002063 Rear Passenger Buckle SideRear Passenger Buckle Side
-
500708002644 Safety BeltSafety Belt
-
550250100135 Nylon Insert Hex. Lock Nut 7/16-20Nylon Insert Hex. Lock Nut 7/16-20
-
560250000521 Hex. Cap Screw 7/16'' X 1''Hex. Cap Screw 7/16'' X 1''
-
700250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
1100708001212 AnchorAnchor
-
1150207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
1200708001213 AnchorAnchor
-
1250233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
1260234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1300708001214 Seat SupportSeat Support
-
1350250000213 Hex. Flanged Screw M6 X 1.0 X 45Hex. Flanged Screw M6 X 1.0 X 45
-
1360250100171 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
1370233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
1400708001804 SupportSupport
-
1500250100171 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
1600207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
1700234281474 Conical Spring Washer M8Conical Spring Washer M8
-
1800250100135 Nylon Insert Hex. Lock Nut 7/16-20. Not ShownNylon Insert Hex. Lock Nut 7/16-20. Not Shown
-
1810250000521 Hex. Cap Screw 7/16'' X 1''. Not ShownHex. Cap Screw 7/16'' X 1''. Not Shown
-
1820708000890 Safety Belt Screw. Not ShownSafety Belt Screw. Not Shown
-
1830708000891 Position Washer. Not ShownPosition Washer. Not Shown
-
1840233161464 Hex. Elastic Flange Nut M6. Not ShownHex. Elastic Flange Nut M6. Not Shown
-
1850250000672 Hex. Flange Screw M6. Not ShownHex. Flange Screw M6. Not Shown
