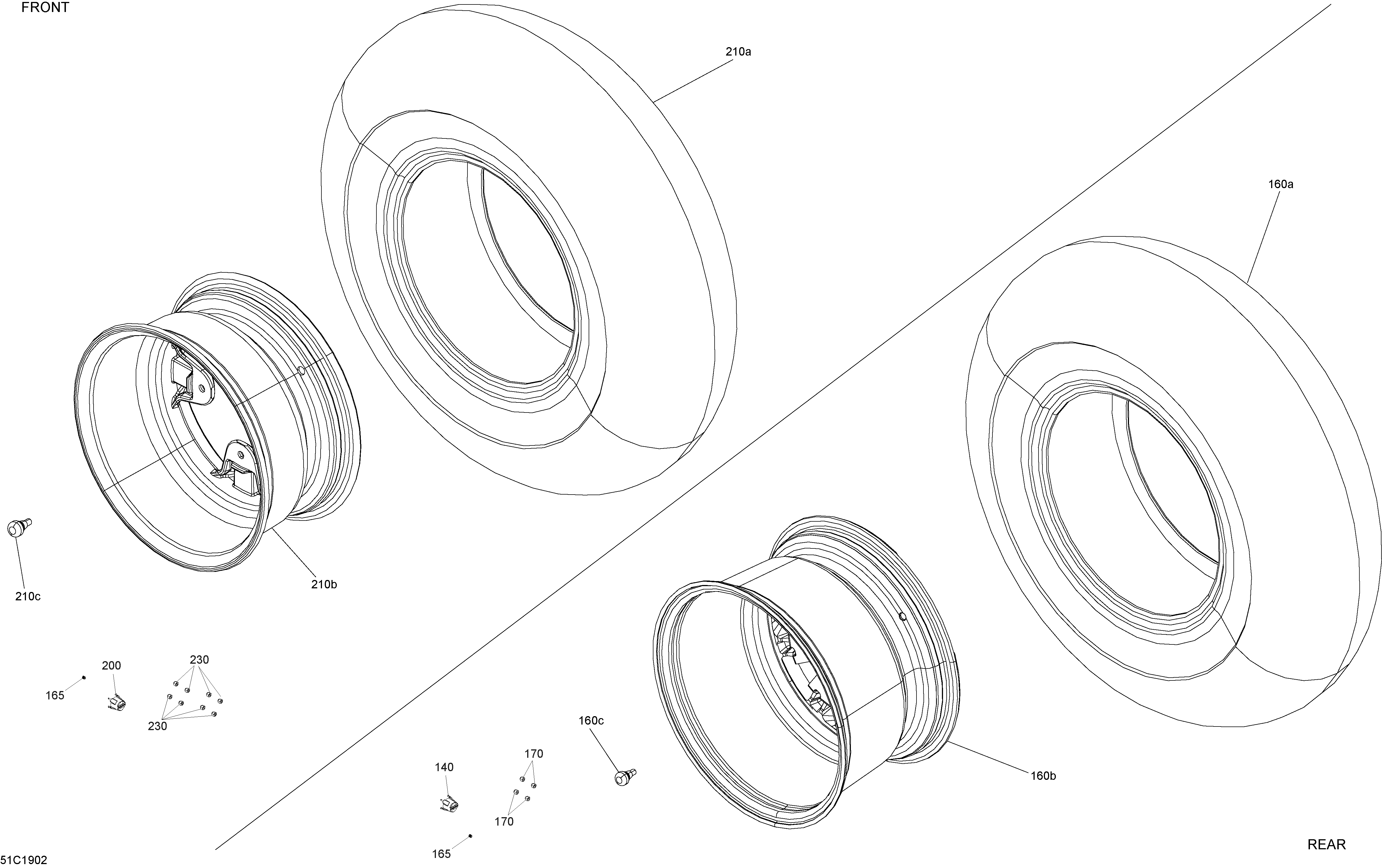

07- Wheels And Tires - XT для BRP 005 - Defender MAX HD10 - International - 2019
-
№АртикулНазвание
-
165293000110 Valve CapValve Cap
-
200705401541 Wheel CapWheel Cap
-
210a705402168 Front TireFront Tire
-
210b705401849 Front RimFront Rim
-
210c705400193 Rim Valve With CapRim Valve With Cap
-
230250100184 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
140705401541 Wheel CapWheel Cap
-
160a705502665 Rear TireRear Tire
-
160b705502398 Black Rear RimBlack Rear Rim
-
160c705400193 Rim Valve With CapRim Valve With Cap
-
170250100184 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
