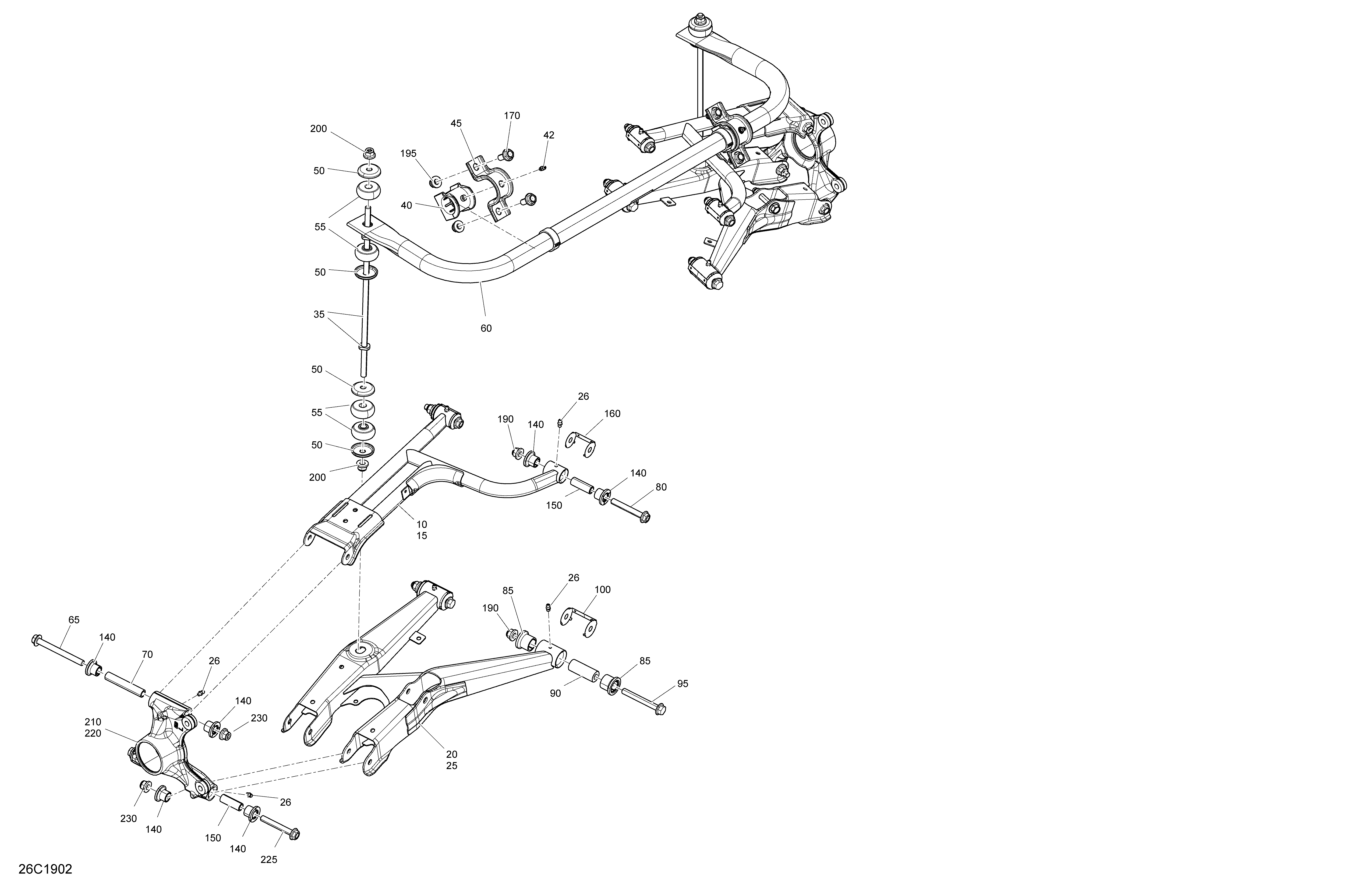

08- Rear Suspension - HD10 для BRP 005 - Defender MAX HD10 - International - 2019
-
№АртикулНазвание
-
10706002773 LH Rear Upper Suspension Arm. Packages CAB, Lone Star Edition & XMRLH Rear Upper Suspension Arm. Packages CAB, Lone Star Edition & XMR
-
10706002874 LH Rear Upper Suspension Arm. Package XTP. Includes 10 to 10aLH Rear Upper Suspension Arm. Package XTP. Includes 10 to 10a
-
15706002774 RH Rear Upper Suspension Arm. Packages CAB, Lone Star Edition & XMRRH Rear Upper Suspension Arm. Packages CAB, Lone Star Edition & XMR
-
15706002875 RH Rear Upper Suspension Arm. Package XTP. Includes 15 to 15aRH Rear Upper Suspension Arm. Package XTP. Includes 15 to 15a
-
20706002775 LH Rear Lower Suspension Arm. Packages CAB, Lone Star Edition & XMRLH Rear Lower Suspension Arm. Packages CAB, Lone Star Edition & XMR
-
20706003074 LH Rear Lower Suspension Arm. Package XTP. Includes 20 to 20aLH Rear Lower Suspension Arm. Package XTP. Includes 20 to 20a
-
25706002776 RH Rear Suspension Lower Arm. Packages CAB, Lone Star Edition & XMRRH Rear Suspension Lower Arm. Packages CAB, Lone Star Edition & XMR
-
25706003075 RH Rear Lower Suspension Arm. Package XTP. Includes 25 to 25aRH Rear Lower Suspension Arm. Package XTP. Includes 25 to 25a
-
26408200700 Grease FittingGrease Fitting
-
35706001898 Torsion Bar LinkTorsion Bar Link
-
40706001896 CushionCushion
-
42408200700 Grease FittingGrease Fitting
-
45706002592 ClampClamp
-
50706002027 Linkage CupLinkage Cup
-
55706002028 Linkage BushingLinkage Bushing
-
60706002076 Sway Bar Ass'ySway Bar Ass'y
-
65230600046 Screw-Hex.Flange DIN.6921Screw-Hex.Flange DIN.6921
-
70706202197 Upper BushingUpper Bushing
-
80207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
85706201659 CushionCushion
-
90706201590 SleeveSleeve
-
95207608046 Hex Flanged Screw M10 X 80Hex Flanged Screw M10 X 80
-
100706201660 Wear PlateWear Plate
-
140703500875 Bushing KitBushing Kit
-
150703500875 Bushing KitBushing Kit
-
160703500875 Bushing KitBushing Kit
-
170207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
190233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
195233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
200233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
210706002809 Rear Left Machined KnuckleRear Left Machined Knuckle
-
220706002811 Rear Right Machined KnuckleRear Right Machined Knuckle
-
225207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
230233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
