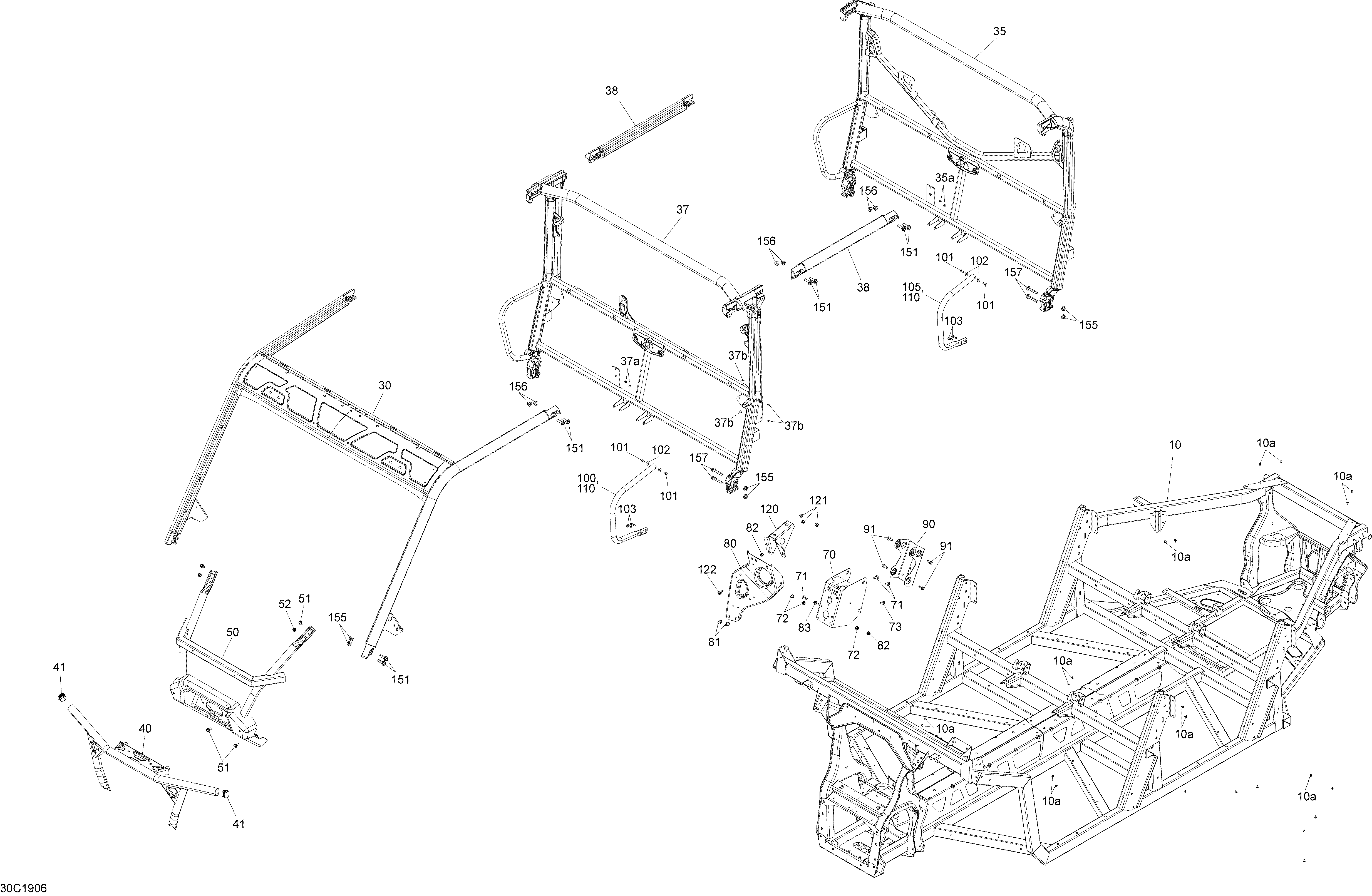

09- Frame - MAX для BRP 003 - Traxter MAX HD8 - International - 2019
-
№АртикулНазвание
-
10715005596 Frame KitFrame Kit
-
10a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
30715005556 Black, Front Cage KitBlack, Front Cage Kit
-
35715003569 Black, Rear Cage Kit. Black. Includes 35 to 35aBlack, Rear Cage Kit. Black. Includes 35 to 35a
-
35a390402200 Pop Rivet 3/16''. BlackPop Rivet 3/16''. Black
-
37715003770 Black, Central Cage Kit. Black. Includes 37 to 37bBlack, Central Cage Kit. Black. Includes 37 to 37b
-
37a390402200 Pop Rivet 3/16''. BlackPop Rivet 3/16''. Black
-
37b390402200 Pop Rivet 3/16''. BlackPop Rivet 3/16''. Black
-
38705205401 Black, Cage Extension. BlackBlack, Cage Extension. Black
-
50705203999 Front BumperFront Bumper
-
51207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
52233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
70705206316 PlatePlate
-
71207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
72233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
73207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
81207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
82233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
83207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
90715005429 Support Steering ColumnSupport Steering Column
-
91207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
100705204594 LH Protector Tube. BlackLH Protector Tube. Black
-
101250000789 Torx Truss M6X14Torx Truss M6X14
-
102705202223 Offset WasherOffset Washer
-
103207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
105705204590 LH Side Protect. BlackLH Side Protect. Black
-
110705204592 RH Protector Tube. BlackRH Protector Tube. Black
-
120705205171 Shifting Module SupportShifting Module Support
-
121233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
122207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
130250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
135250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
460207662044 Hex. Flanged Screw M6 X 20. Not ShownHex. Flanged Screw M6 X 20. Not Shown
-
465250000806 Torx Truss M8 X 90. Not ShownTorx Truss M8 X 90. Not Shown
-
470233281414 Hex. Flanged Elastic Nut M8. Not ShownHex. Flanged Elastic Nut M8. Not Shown
-
475705206398 Bumper Spacer. Not ShownBumper Spacer. Not Shown
