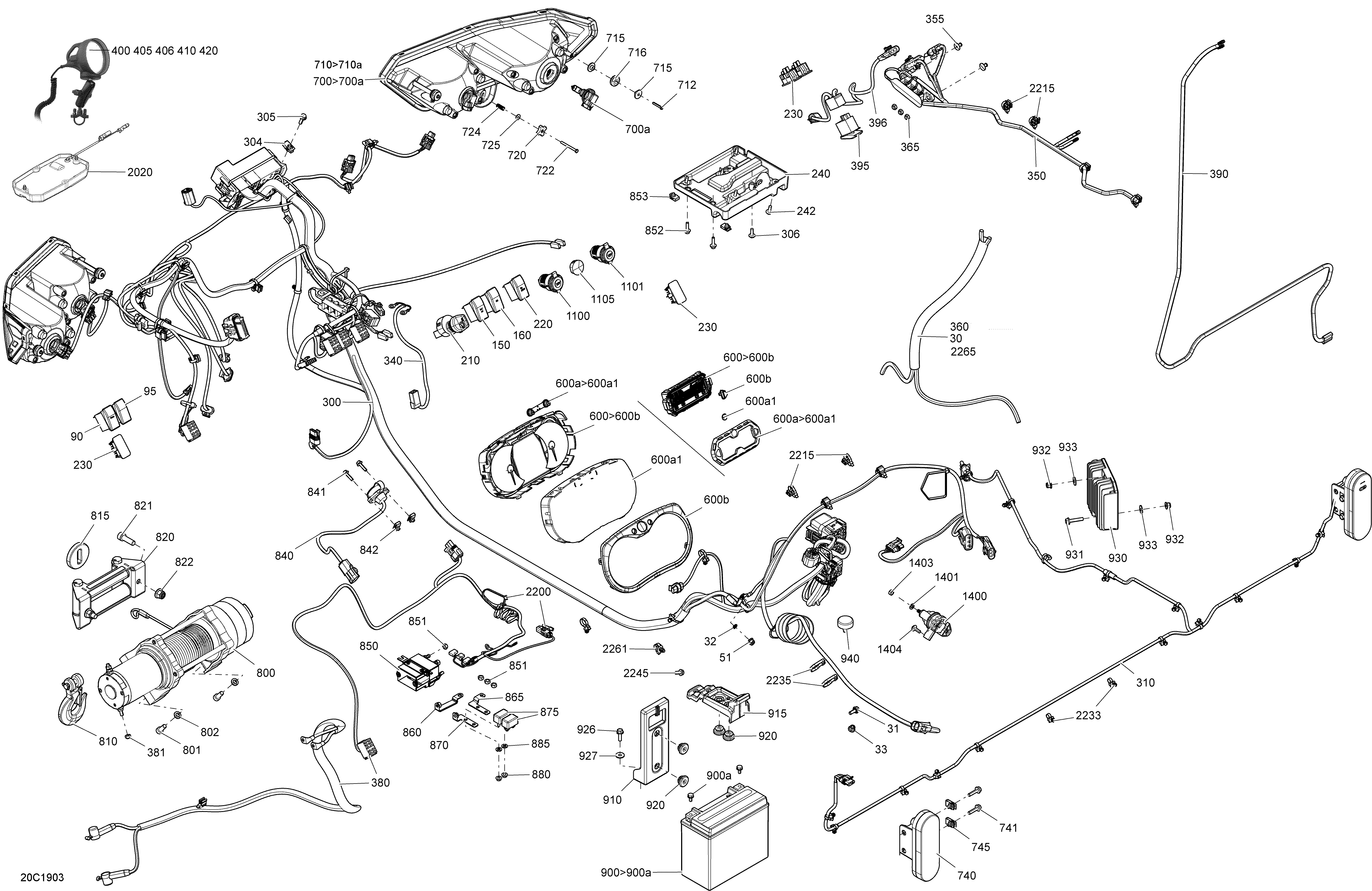

10- Electrical - HD8 для BRP 003 - Traxter MAX HD8 - International - 2019
-
№АртикулНазвание
-
30710005512 Negative CableNegative Cable
-
31207501644 Hex. Flanged Screw M10 X 16, Scotch GripHex. Flanged Screw M10 X 16, Scotch Grip
-
32234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
33232561414 Elastic Stop Nut M6 x 1.0Elastic Stop Nut M6 x 1.0
-
51232561414 Elastic Stop Nut M6 x 1.0Elastic Stop Nut M6 x 1.0
-
90710004492 Light SwitchLight Switch
-
95710002052 Switch. Package XTSwitch. Package XT
-
150710004814 2 X 4 Switch2 X 4 Switch
-
160710005470 Differential Lock SwitchDifferential Lock Switch
-
210710004198 Ignition Switch With KeysIgnition Switch With Keys
-
215710005739 Key Switch ProtectorKey Switch Protector
-
220710004532 Driving Mode Switch. Package XTDriving Mode Switch. Package XT
-
230710001999 Plug CarlingPlug Carling
-
240710004741 Housing SupportHousing Support
-
242250000959 Screw PT Type K-50 X 16Screw PT Type K-50 X 16
-
300710006160 Wiring Harness MainWiring Harness Main
-
301710005760 DPS Connector Cap. Package BASEDPS Connector Cap. Package BASE
-
304250100198 Panel Nut , M6 X 1.0Panel Nut , M6 X 1.0
-
305207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
306243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
308710005022 Seat Bell HarnessSeat Bell Harness
-
310710004458 Rear HarnessRear Harness
-
380710004465 Winch Harness. Package XTWinch Harness. Package XT
-
381232561434 Elastic Stop Nut M6. Package XTElastic Stop Nut M6. Package XT
-
600710005553 Speedometer. Packages BASE & DPS. Includes 600 to 600cSpeedometer. Packages BASE & DPS. Includes 600 to 600c
-
600a710001183 Trim Ring Ass'y. Packages BASE & DPS. Includes 600a to 600a1Trim Ring Ass'y. Packages BASE & DPS. Includes 600a to 600a1
-
600a1704904615 BRP Logo, 13 mm. Packages BASE & DPSBRP Logo, 13 mm. Packages BASE & DPS
-
600b715900265 Button. Packages BASE & DPSButton. Packages BASE & DPS
-
600710005719 Speedometer. Package XT. Includes 600 to 600cSpeedometer. Package XT. Includes 600 to 600c
-
600a415129349 Lens. Package XTLens. Package XT
-
600b415129355 Speedometer Button. Package XTSpeedometer Button. Package XT
-
600c415129348 Gauge Ring. Package XTGauge Ring. Package XT
-
700710005729 LH Beam Ass'y. Includes 700 to 700aLH Beam Ass'y. Includes 700 to 700a
-
700a219800149 Halogen Bulb H8 12V 35WHalogen Bulb H8 12V 35W
-
710710005730 RH Beam Ass'y. Includes 710 to 710aRH Beam Ass'y. Includes 710 to 710a
-
710a219800149 Halogen Bulb H8 12V 35WHalogen Bulb H8 12V 35W
-
712241152540 Hex. Flanged Screw K50 X 2.24 X 25Hex. Flanged Screw K50 X 2.24 X 25
-
715710004749 Shoulder BushingShoulder Bushing
-
716293720053 GrommetGrommet
-
720572106600 HandleHandle
-
722250000718 Hex. Screw K40 X 45Hex. Screw K40 X 45
-
724517168600 SpringSpring
-
725234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
740710004257 Tail Light. Package XTTail Light. Package XT
-
740710004497 Tail Light. Packages BASE & DPSTail Light. Packages BASE & DPS
-
741207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
745250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
800710005731 Winch. Package XTWinch. Package XT
-
801205083044 Socket Head Screw M8 X 30. Package XTSocket Head Screw M8 X 30. Package XT
-
802234181401 Lock Washer 8 mm. Package XTLock Washer 8 mm. Package XT
-
810715003523 Hook and Strap kit. Package XTHook and Strap kit. Package XT
-
811715003523 Hook and Strap kit. Package XTHook and Strap kit. Package XT
-
812715003523 Hook and Strap kit. Package XTHook and Strap kit. Package XT
-
815710005142 Winch Cable Stopper. Package XTWinch Cable Stopper. Package XT
-
820710004822 Winch Cable Guide. Package XTWinch Cable Guide. Package XT
-
821205003044 Socket Screw M10 x 30. Package XTSocket Screw M10 x 30. Package XT
-
822233201414 Hex. Flanged Elastic Nut M10. Package XTHex. Flanged Elastic Nut M10. Package XT
-
840710004823 Winch Remote Connector. Package XTWinch Remote Connector. Package XT
-
841207552044 Hex. Flanged Screw M5 X 20, Scotch Grip. Package XTHex. Flanged Screw M5 X 20, Scotch Grip. Package XT
-
842250000958 Panel Nut M5 X 0.8. Package XTPanel Nut M5 X 0.8. Package XT
-
850703500947 Solenoid. Package XTSolenoid. Package XT
-
851232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
852207552044 Hex. Flanged Screw M5 X 20, Scotch Grip. Package XTHex. Flanged Screw M5 X 20, Scotch Grip. Package XT
-
853250000958 Panel Nut M5 X 0.8. Package XTPanel Nut M5 X 0.8. Package XT
-
860710004772 Power Bar. Package XTPower Bar. Package XT
-
865710004872 Power Bar. Package XTPower Bar. Package XT
-
870710004873 Power Bar. Package XTPower Bar. Package XT
-
875703500948 Breaker 50 Amp. Package XTBreaker 50 Amp. Package XT
-
880250100071 Hex. Flanged Nut M5. Package XTHex. Flanged Nut M5. Package XT
-
885234161601 Lock Washer Helical M6. Package XTLock Washer Helical M6. Package XT
-
900410301203 Battery Ass'y, 18 Amperes. Packages BASE & DPS. Includes 900 to 900aBattery Ass'y, 18 Amperes. Packages BASE & DPS. Includes 900 to 900a
-
900a250000282 Battery Bolt Kit. Packages BASE & DPSBattery Bolt Kit. Packages BASE & DPS
-
900515176151 Battery. Package XT. Includes 900 to 900aBattery. Package XT. Includes 900 to 900a
-
900a515176081 Battery Bolt Kit. Package XTBattery Bolt Kit. Package XT
-
910710004788 Fixation PlateFixation Plate
-
915710004789 Fixation PlateFixation Plate
-
920705003666 Rubber GrommetRubber Grommet
-
926207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
927234062410 Flat Washer 6 mmFlat Washer 6 mm
-
930710005842 VOLTAGE REGULATORVOLTAGE REGULATOR
-
931207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
932233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
933234062410 Flat Washer 6 mmFlat Washer 6 mm
-
940708001827 Rubber StopperRubber Stopper
-
1100710001248 Outlet DCOutlet DC
-
1105710004993 Cap. Packages BASE & DPSCap. Packages BASE & DPS
-
1400278003012 Starter RelayStarter Relay
-
1401234161601 Lock Washer Helical M6Lock Washer Helical M6
-
1403232061600 Hex. Nut M6Hex. Nut M6
-
1404243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
2245210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
