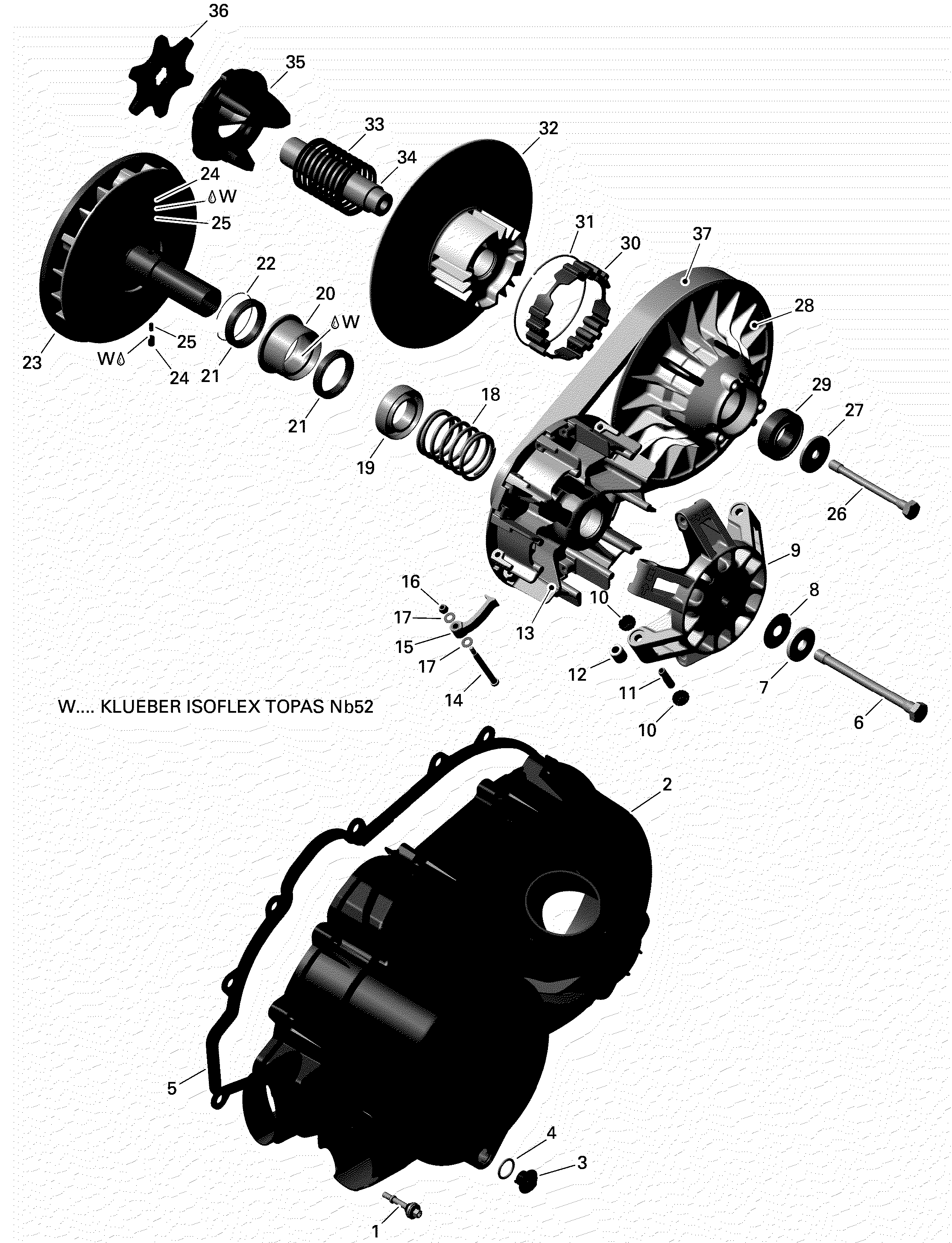

05- Transmission для BRP 001 - Traxter HD5 - T1B Series - 2019
-
№АртикулНазвание
-
1420440568 Hex Screw M6 X 30Hex Screw M6 X 30
-
2>4420612462 Variator Cover Ass'yVariator Cover Ass'y
-
3420441820 CapCap
-
4420250050 O-RingO-Ring
-
5420630292 GasketGasket
-
6420641812 Hex. Screw M12 X 140Hex. Screw M12 X 140
-
7420627760 Spring WasherSpring Washer
-
8420627920 Thrust WasherThrust Washer
-
9420280515 Governor Cup Ass'yGovernor Cup Ass'y
-
10420281296 Slider Shoe SetSlider Shoe Set
-
11417223257 Roller AxleRoller Axle
-
12417223767 RollerRoller
-
13420280467 Outher HaftOuther Haft
-
14>17420248130 Lever SetLever Set
-
18420238166 Compression SpringCompression Spring
-
19420627577 Spring SeatSpring Seat
-
20420257439 ClutchClutch
-
21420632375 Ball BearingBall Bearing
-
22420245951 Retaining RingRetaining Ring
-
23420280247 Inner Half Ass'yInner Half Ass'y
-
24420229577 Spring SleeveSpring Sleeve
-
25420239135 Compression SpringCompression Spring
-
26420441485 Hex. Screw M10 X 110Hex. Screw M10 X 110
-
27420627590 Thrust WasherThrust Washer
-
28>31420280178 Outer Half Pulley Ass'yOuter Half Pulley Ass'y
-
29420932421 Ball BearingBall Bearing
-
30420245911 Retaining RingRetaining Ring
-
31420660124 Torque GearTorque Gear
-
32420248233 Inner Half Ass'yInner Half Ass'y
-
33420238173 Compression Spring, Driven PulleyCompression Spring, Driven Pulley
-
34420220914 Driven Pulley ShaftDriven Pulley Shaft
-
35420280250 CamCam
-
36420627586 Cam PlateCam Plate
-
37422280280 V BeltV Belt
