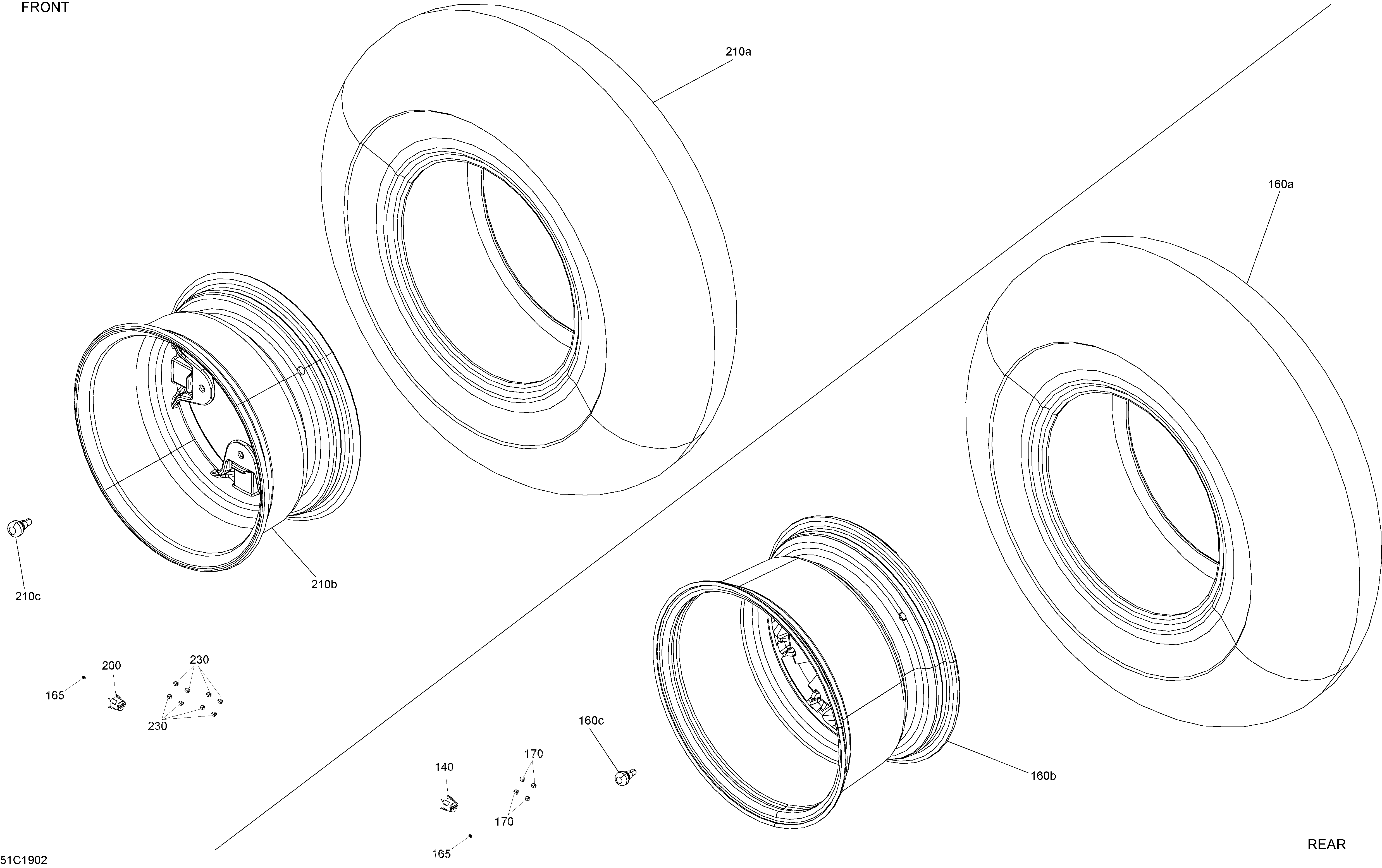

07- Wheels And Tires - HD5 - T1B - Package BASE для BRP 001 - Traxter HD5 - T1B Series - 2019
-
№АртикулНазвание
-
165293000110 Valve CapValve Cap
-
210a705402400 Front TireFront Tire
-
210b705401217 Black, RimBlack, Rim
-
210c705400193 Rim Valve With CapRim Valve With Cap
-
230250100042 Steel Wheel NutSteel Wheel Nut
-
160a705502817 Rear TireRear Tire
-
160b705501623 Black, Rear RimBlack, Rear Rim
-
160c705400193 Rim Valve With CapRim Valve With Cap
