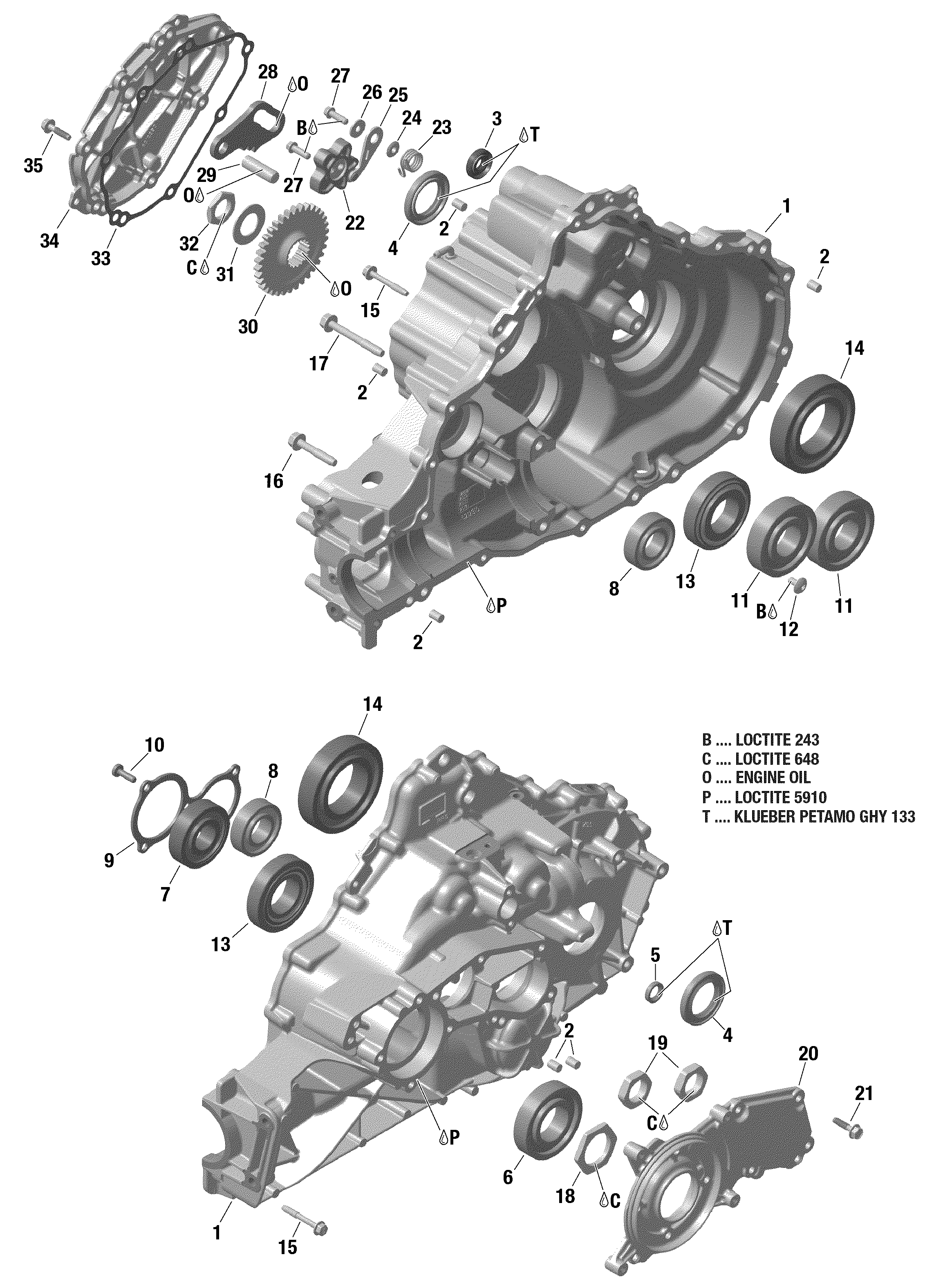

05- Gear Box 1 - 420686757 для BRP 003 - Traxter HD10 - T1B Series - 2019
-
№АртикулНазвание
-
1420686757 Gear Box Ass'yGear Box Ass'y
-
2420632010 Center Pin 8 X 12Center Pin 8 X 12
-
3420250452 Oil SealOil Seal
-
4420831185 Oil SealOil Seal
-
5420931802 Oil SealOil Seal
-
6420632745 Ball BearingBall Bearing
-
7420832098 Ball BearingBall Bearing
-
8420232760 Ball BearingBall Bearing
-
9420651830 Retaining PlateRetaining Plate
-
10420441386 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
11420932573 Ball BearingBall Bearing
-
12420241535 Hex. Screw M6 X 13Hex. Screw M6 X 13
-
13420632761 Roller BearingRoller Bearing
-
14420632871 Ball BearingBall Bearing
-
15420441921 Collar Screw M6 X 45Collar Screw M6 X 45
-
16420441931 Collar Screw M8 x 45Collar Screw M8 x 45
-
17420441941 Collar Screw M8 x 65Collar Screw M8 x 65
-
18420842600 Hex Nut M34 X 1.5Hex Nut M34 X 1.5
-
19420242954 Hex. Nut M24Hex. Nut M24
-
20420212380 Bearing CoverBearing Cover
-
21420441951 Collar Screw M6 x 25Collar Screw M6 x 25
-
22420248020 Index WasherIndex Washer
-
23420239566 SpringSpring
-
24420227717 Step RingStep Ring
-
25420248528 Index Lever Ass'yIndex Lever Ass'y
-
26420827300 WasherWasher
-
27420441835 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
28420657440 Parking Lock LeverParking Lock Lever
-
29420249190 Needle PinNeedle Pin
-
30420634936 GearGear
-
31420245860 Spring WasherSpring Washer
-
32420242879 NutNut
-
33420450410 GasketGasket
-
34420212390 Gear Box CoverGear Box Cover
-
35420441951 Collar Screw M6 x 25Collar Screw M6 x 25
