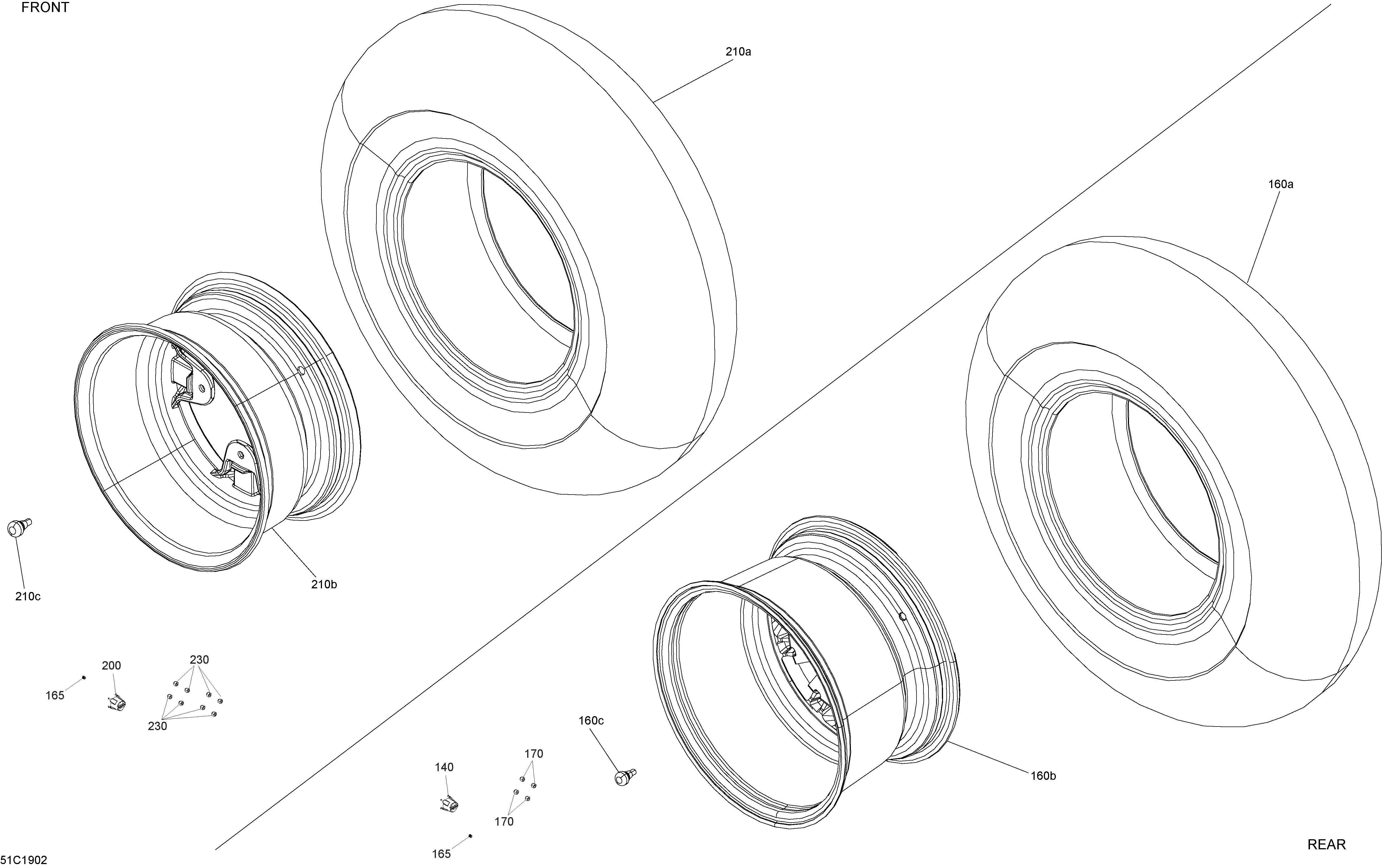

07- Wheels And Tires - HD10 - T1B - PRO для BRP 003 - Traxter HD10 - T1B Series - 2019
-
№АртикулНазвание
-
165293000110 Valve CapValve Cap
-
200705401541 Wheel CapWheel Cap
-
230250100184 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
210a705402058 Front TireFront Tire
-
210b705402338 RimRim
-
210c705400193 Rim Valve With CapRim Valve With Cap
-
140705401541 Wheel CapWheel Cap
-
160a705502576 Rear TireRear Tire
-
160b705502778 RimRim
-
160c705400193 Rim Valve With CapRim Valve With Cap
