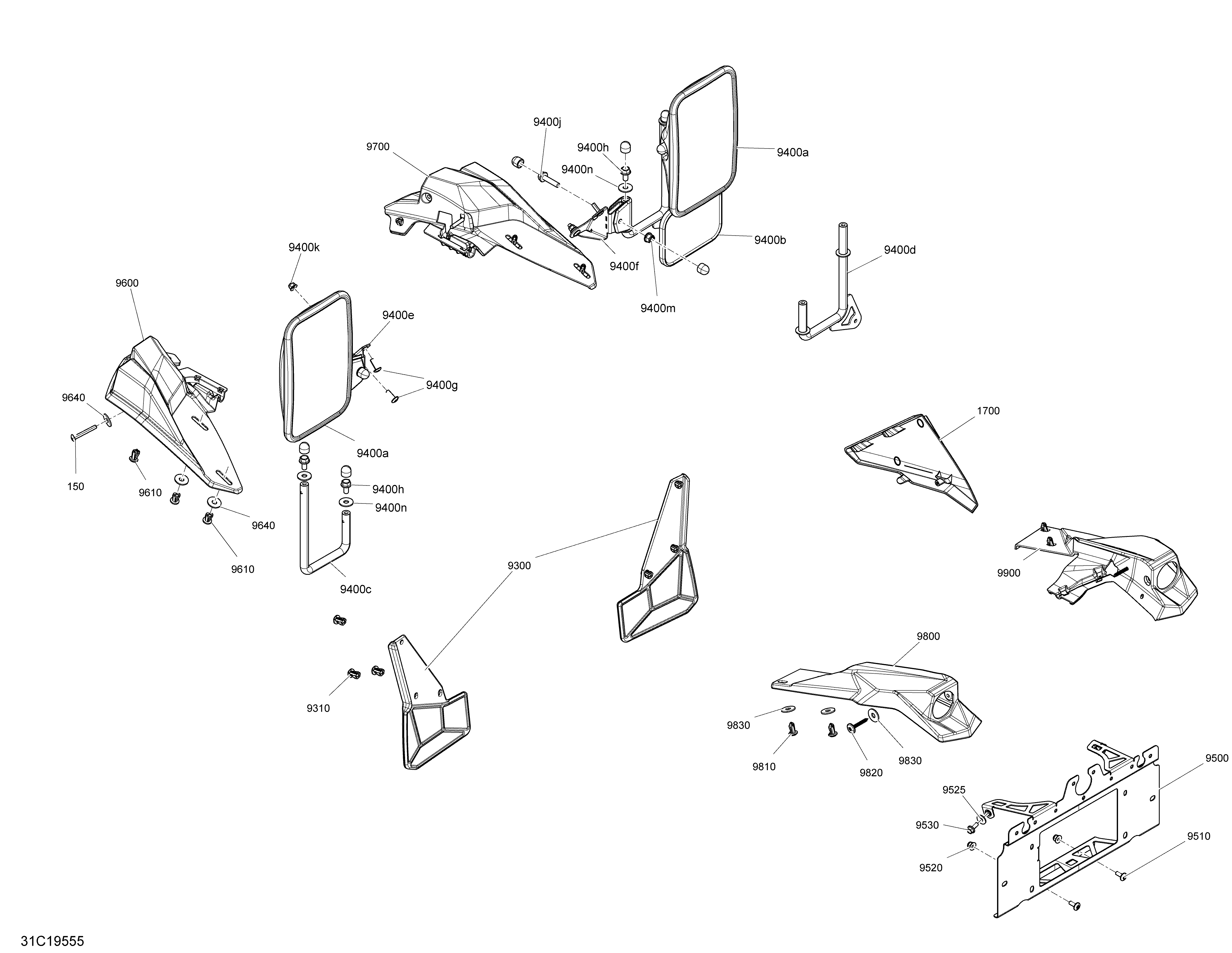

09- Body - Accessories Parts Europe для BRP 002 - Maverick Sport MAX 1000R - DPS - T1B Series - 2019
-
№АртикулНазвание
-
150250000748 Torx Screw M6 X 45Torx Screw M6 X 45
-
1700705012623 Red, Acces Panel TrimRed, Acces Panel Trim
-
9300705012793 Front Mud Flap Model TFront Mud Flap Model T
-
9310293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
9400a705011497 MirrorMirror
-
9400b705013819 Wide Angle Lateral MirrorWide Angle Lateral Mirror
-
9400c705013823 LH Mirror Rod AssemblyLH Mirror Rod Assembly
-
9400d705013817 Mirror RodMirror Rod
-
9400e705012897 LH Mirror SupportLH Mirror Support
-
9400f705012898 RH Mirror SupportRH Mirror Support
-
9400g250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
9400h207581644 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
9400j207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
9400k233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
9400m233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
9400n234082670 Flat Washer, StainlessFlat Washer, Stainless
-
9500705013731 Licence Plate Support Ass'yLicence Plate Support Ass'y
-
9510250000721 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
9520233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
9525234062670 Flat Washer, StainlessFlat Washer, Stainless
-
9530207661654 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
9600705012791 LH Front Flasher Support Model TLH Front Flasher Support Model T
-
9610293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
9640234082670 Flat Washer, StainlessFlat Washer, Stainless
-
9700705012792 RH Front Flasher Support Model TRH Front Flasher Support Model T
-
9800705012799 LH Rear Flasher Support Model TLH Rear Flasher Support Model T
-
9810293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
9820250000840 Torx-Screw Truss Head PT.K50 X 40Torx-Screw Truss Head PT.K50 X 40
-
9830234082670 Flat Washer, StainlessFlat Washer, Stainless
-
9900705012800 RH Rear Flasher Support Model TRH Rear Flasher Support Model T
