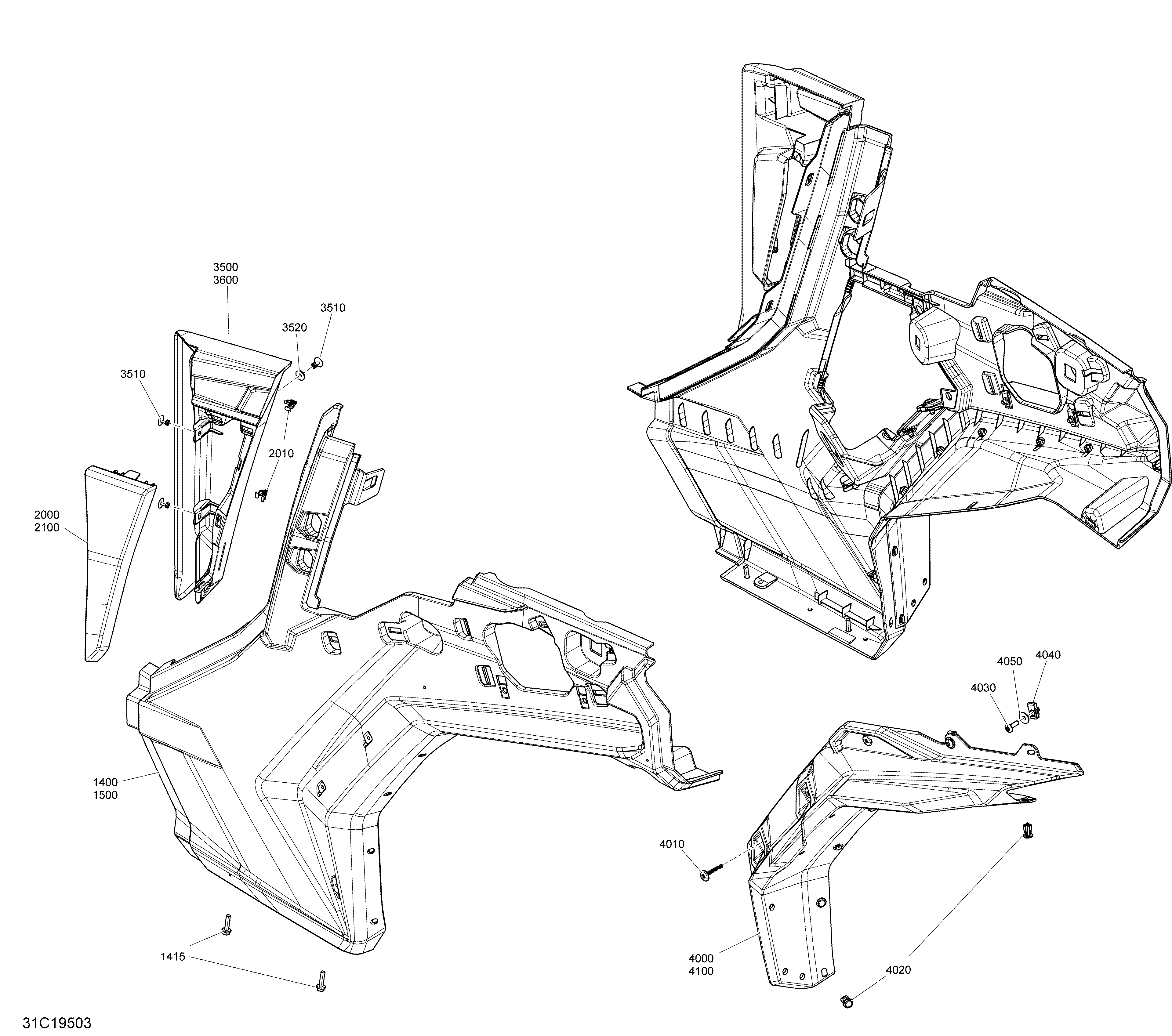

09- Body - Rear Fender Parts - Red для BRP 002 - Maverick Sport MAX 1000R - DPS - T1B Series - 2019
-
№АртикулНазвание
-
1400705011335 LH Rear PannelLH Rear Pannel
-
1415207662554 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
1500705011336 RH Rear PannelRH Rear Pannel
-
2000705013597 Can-Am Red, LH Rear Trim PanelCan-Am Red, LH Rear Trim Panel
-
2010517306478 ClipClip
-
2100705013598 Can-Am Red, RH Rear Trim PanelCan-Am Red, RH Rear Trim Panel
-
3500705013140 LH Rear Fixed PanelLH Rear Fixed Panel
-
3510293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
3520250200025 Washer M5Washer M5
-
3600705013141 RH Rear Fixed PanelRH Rear Fixed Panel
-
4000705012097 LH Rear Mud GuardLH Rear Mud Guard
-
4010250000840 Torx-Screw Truss Head PT.K50 X 40Torx-Screw Truss Head PT.K50 X 40
-
4020293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
4030250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4040250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
4050234062670 Flat Washer, StainlessFlat Washer, Stainless
-
4100705012098 RH Rear 60'' Mud Guard ExtensionRH Rear 60'' Mud Guard Extension
