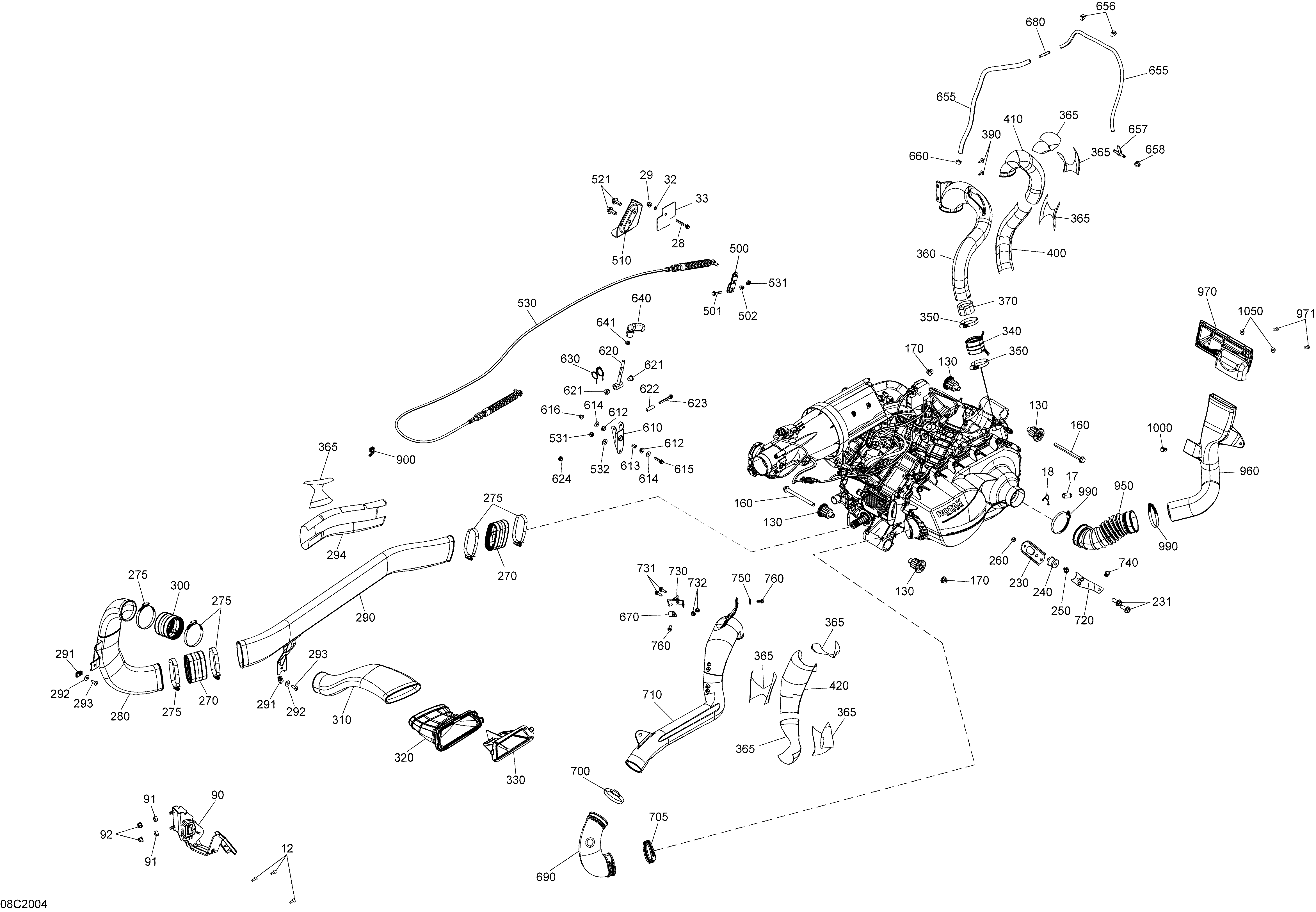

01- Engine для BRP 004 - Commander MAX 1000R EFI - North America - 2020
-
№АртикулНазвание
-
12250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
17707001185 PlugPlug
-
18707800506 Retainer ClipRetainer Clip
-
28207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
29233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
32234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
33710000073 Insulator PadInsulator Pad
-
90707001166 Accelerator PedalAccelerator Pedal
-
91707000848 BushingBushing
-
92233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
130707001170 Anti Vibration BufferAnti Vibration Buffer
-
160230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
170233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
230707000707 Upper Engine BracketUpper Engine Bracket
-
231207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
240707000949 Rubber IsolatorRubber Isolator
-
250207581046 Flanged Screw M8 x 10, Scotch GripFlanged Screw M8 x 10, Scotch Grip
-
260232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
270707001467 Flexible AdaptorFlexible Adaptor
-
275293650091 Norma ClampNorma Clamp
-
280707001339 Air InletAir Inlet
-
290707001228 Air InletAir Inlet
-
291250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
292250200082 Flat WasherFlat Washer
-
293250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
294707001346 ReflectorReflector
-
300707001467 Flexible AdaptorFlexible Adaptor
-
310707000909 Primary Air IntakePrimary Air Intake
-
320707000908 AdaptorAdaptor
-
330707001344 CVT FilterCVT Filter
-
340707001274 AdaptorAdaptor
-
350293650118 Norma Gear ClampNorma Gear Clamp
-
360707001243 CVT OutletCVT Outlet
-
365707000991 Reflective SheetReflective Sheet
-
370707000988 ReflectorReflector
-
390250000725 Screw M4 X 16Screw M4 X 16
-
400707001284 ReflectorReflector
-
410707001360 ReflectorReflector
-
420707001286 ReflectorReflector
-
500707000911 LeverLever
-
501207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
502233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
510707000919 Cable SupportCable Support
-
521207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
530707001283 Shifting CableShifting Cable
-
531232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
532234001410 Flat Washer 10 mmFlat Washer 10 mm
-
610707000828 Lower Lever ArmLower Lever Arm
-
612707000847 Flanged BushingFlanged Bushing
-
613707000801 BushingBushing
-
614234062410 Flat Washer 6 mmFlat Washer 6 mm
-
615207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
616233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
620707000711 Upper Lever ArmUpper Lever Arm
-
621707000869 Flanged BushingFlanged Bushing
-
622707001376 BushingBushing
-
623207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
624233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
630707000750 Lever Arm SpringLever Arm Spring
-
640707000284 Lever HandleLever Handle
-
641232180491 Hex. Jam Nut M8Hex. Jam Nut M8
-
655293830193 Polyurethane HosePolyurethane Hose
-
656414227300 ClipClip
-
657293710059 Y-FittingY-Fitting
-
658293720029 GrommetGrommet
-
660414415200 Spring ClampSpring Clamp
-
670518321570 Open ClampOpen Clamp
-
680293710039 Straight FittingStraight Fitting
-
690707001229 Front AdaptorFront Adaptor
-
700293650118 Norma Gear ClampNorma Gear Clamp
-
705293650091 Norma ClampNorma Clamp
-
710707001230 CVT OutletCVT Outlet
-
720707001231 Front SupportFront Support
-
730707001232 Rear SupportRear Support
-
731207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
732233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
740293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
750234062410 Flat Washer 6 mmFlat Washer 6 mm
-
760210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
950707001400 Flexible AdaptorFlexible Adaptor
-
960707001401 Air InletAir Inlet
-
970707001422 FilterFilter
-
971250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
990293650091 Norma ClampNorma Clamp
-
1000293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1050250200025 Washer M5Washer M5
