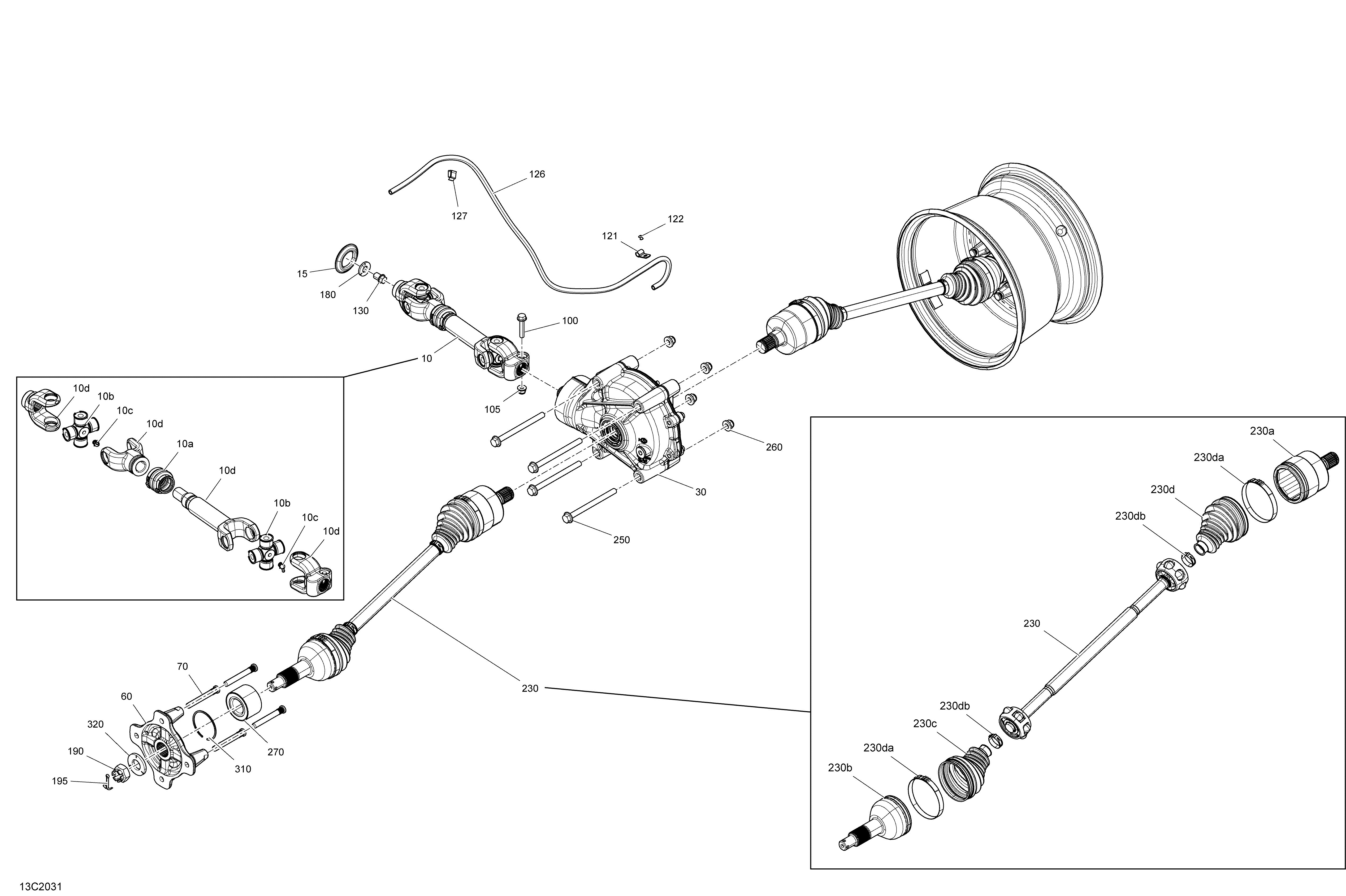

08- Rear Drive - Common Parts для BRP 004 - Commander MAX 1000R EFI - North America - 2020
-
№АртикулНазвание
-
10705502935 Drive Axle Ass'y. Includes 10 to 10dDrive Axle Ass'y. Includes 10 to 10d
-
10a715900118 Rubber BootRubber Boot
-
10b703500846 Universal Joint Ass'y. Includes toUniversal Joint Ass'y. Includes to
-
10c715900295 Grease FittingGrease Fitting
-
10d715900436 JointJoint
-
15705501123 ProtectorProtector
-
30705502827 Final Drive Unit. Includes 30 to 30sFinal Drive Unit. Includes 30 to 30s
-
60705502470 Wheel HubWheel Hub
-
70705401964 Wheel StudWheel Stud
-
100250001050 Hex. Flanged Screw M8 X 42Hex. Flanged Screw M8 X 42
-
105233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
121414108400 Open ClampOpen Clamp
-
122390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
126293830195 Polyurethane HosePolyurethane Hose
-
127414227300 ClipClip
-
130250001039 Hex Flanged Screw M12 X 16Hex Flanged Screw M12 X 16
-
180250200005 Conical Spring Washer M12Conical Spring Washer M12
-
190250100193 Castle Nut M20Castle Nut M20
-
195250400084 Cotter PinCotter Pin
-
230705502411 CV Joint. Includes 230 to 230fCV Joint. Includes 230 to 230f
-
230a715900433 Plunging JointPlunging Joint
-
230b715900429 CV JointCV Joint
-
230c705501781 CirclipCirclip
-
230d705501864 Boot Kit. Includes toBoot Kit. Includes to
-
230da715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
230db715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
250230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
260233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
270293350118 Cone BearingCone Bearing
-
310293370019 CirclipCirclip
-
320250200170 Conical Spring Washer M20Conical Spring Washer M20
