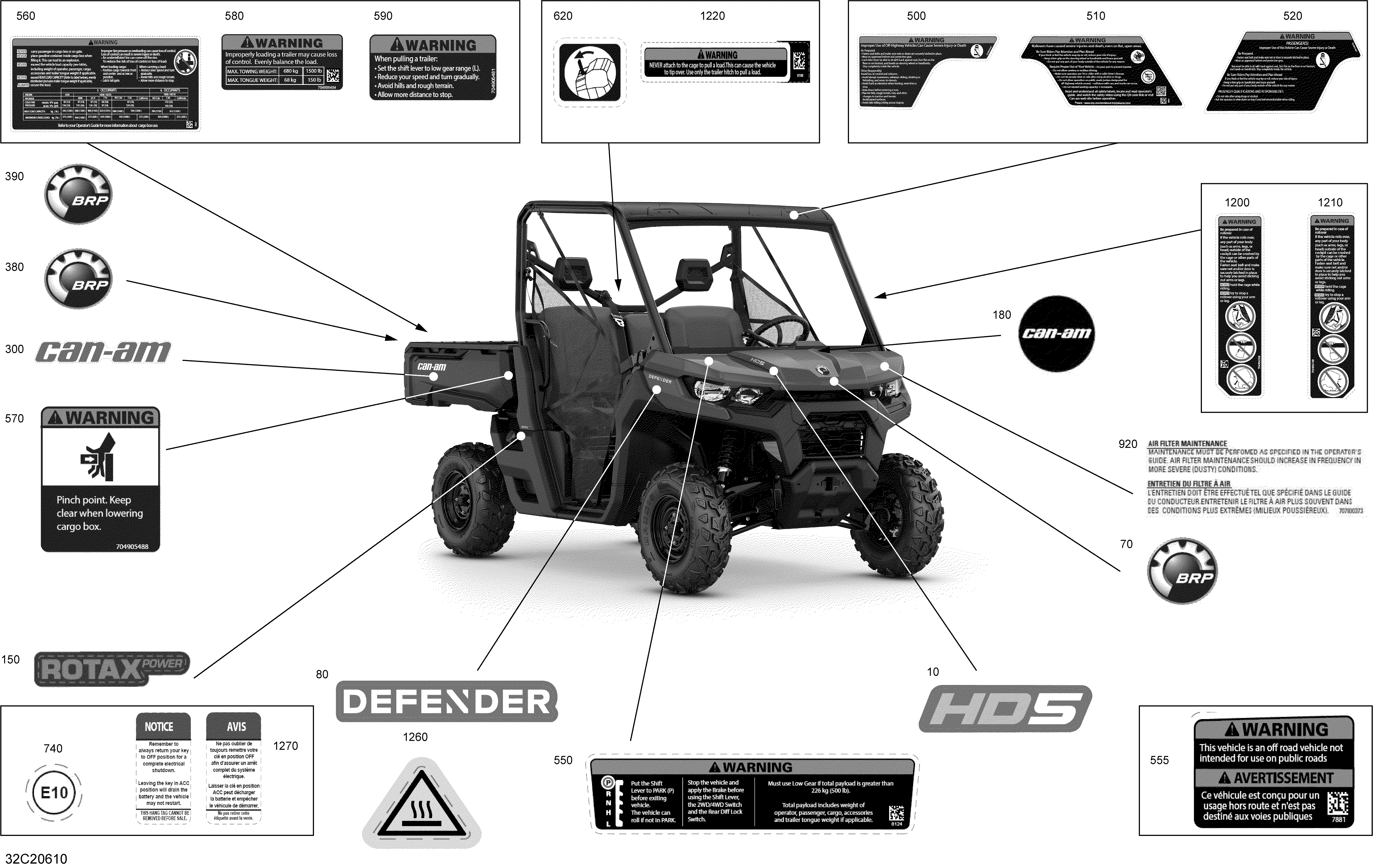

09- Decals - BASE для BRP 001 - Defender HD5 - North America - 2020
-
№АртикулНазвание
-
10704907871 Hood Decal ''HD 5''Hood Decal ''HD 5''
-
70516008739 Logo 68mm ''BRP''Logo 68mm ''BRP''
-
80704905075 Lateral Decal ''Defender''Lateral Decal ''Defender''
-
150704905524 Decal ''Rotax Power''Decal ''Rotax Power''
-
180704904274 ''Can-Am'' Logo''Can-Am'' Logo
-
300704905529 Decal ''Can-Am''Decal ''Can-Am''
-
380516008739 Logo 68mm ''BRP''Logo 68mm ''BRP''
-
390704904615 BRP Logo, 13 mmBRP Logo, 13 mm
-
500704905476 Warning Label Operator's GuideWarning Label Operator's Guide
-
510704908031 Warning Label Operator's GuideWarning Label Operator's Guide
-
520704905487 Warning Label PassengerWarning Label Passenger
-
550704908124 Dashbord Warning LabelDashbord Warning Label
-
555704907881 Transport Canada LabelTransport Canada Label
-
560704908242 Cargo load Warning LabelCargo load Warning Label
-
570704905488 Warning Label InjuryWarning Label Injury
-
580704906404 Warning Towing DecalWarning Towing Decal
-
590704905481 Warning Label TrailerWarning Label Trailer
-
620704908238 Push To Open Symbol LabelPush To Open Symbol Label
-
740704907278 Decal Ethanol Percantage ''E10''Decal Ethanol Percantage ''E10''
-
920707800373 Decal, Air Filter MaintenanceDecal, Air Filter Maintenance
-
1200704906768 Warning Label Roll OverWarning Label Roll Over
-
1210704906769 Warning Label Roll OverWarning Label Roll Over
-
1220704908188 Cage Warning LabelCage Warning Label
-
1270704907637 Battery Notice LabelBattery Notice Label
