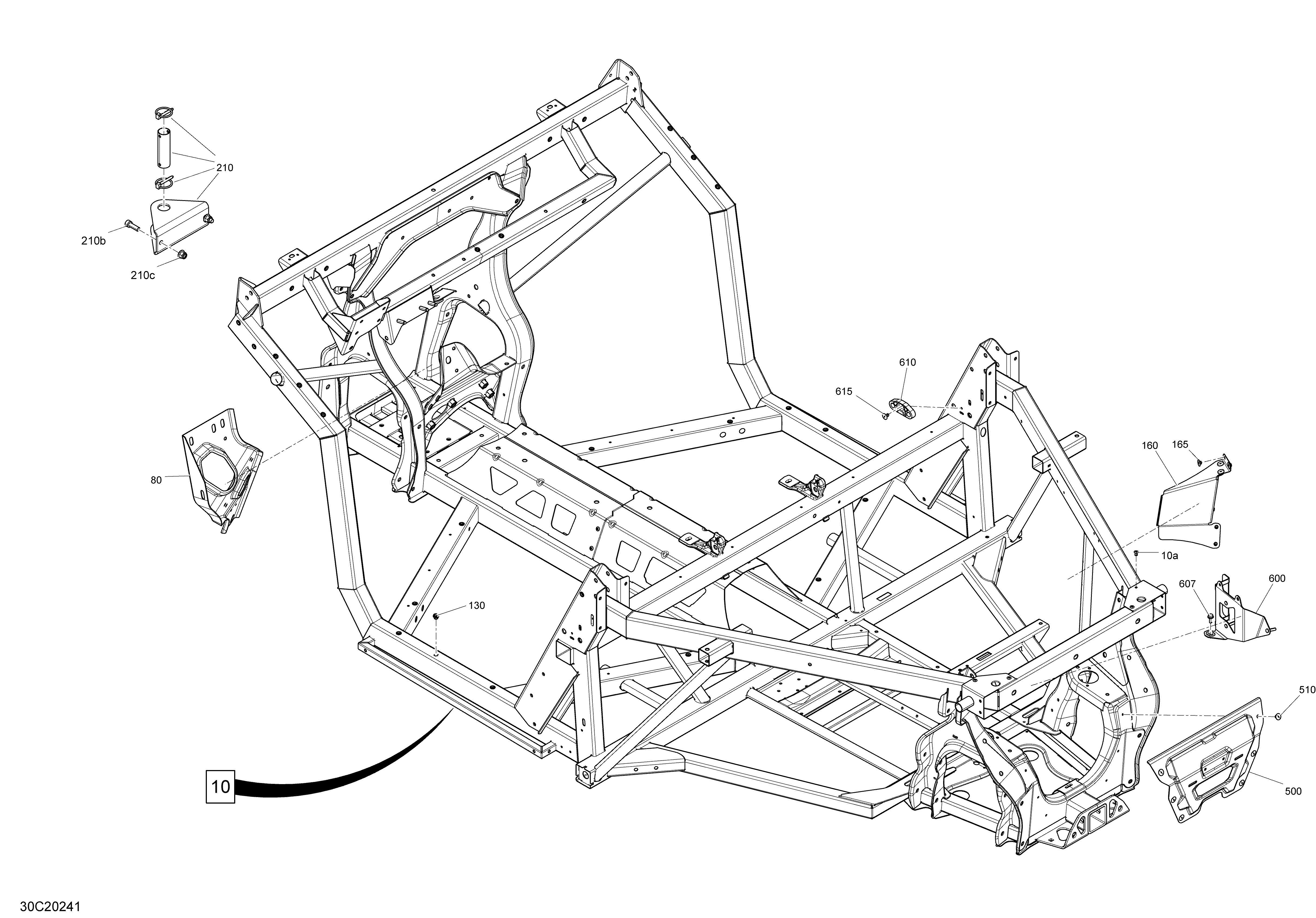

09- Frame для BRP 001 - Defender HD5 - North America - 2020

№

Артикул

Название
10

715006679 Black, Frame Kit

Black, Frame Kit

276 580 ₽
10a

390402200 Pop Rivet 3/16''

Pop Rivet 3/16''

120 ₽
80

705208740 Support. Base

Support. Base

3 730 ₽
130

250100199 Insert Half Hex Body M6 x 1.0

Insert Half Hex Body M6 x 1.0

1 360 ₽
160

707002709 Heat Shield

Heat Shield

4 100 ₽
165

293150092 Pop Rivet 3/16”

Pop Rivet 3/16”

300 ₽
210

705206240 Front Coupling Device Ass'y. Includes 210 to 210c

Front Coupling Device Ass'y. Includes 210 to 210c

9 790 ₽
210b

205003044 Socket Screw M10 x 30

Socket Screw M10 x 30

1 120 ₽
210c

233201414 Hex. Flanged Elastic Nut M10

Hex. Flanged Elastic Nut M10

810 ₽
500

705207753 Rear Chassis Reinforcement

Rear Chassis Reinforcement

2 910 ₽
510

293150104 Pop Rivet 3/16''

Pop Rivet 3/16''

240 ₽
600

710006644 Voltage Regulator Support. Base

Voltage Regulator Support. Base

1 510 ₽
607

207561644 Hex.Fla. Screw M6 X 16, Scotch Grip

Hex.Fla. Screw M6 X 16, Scotch Grip

670 ₽
610

705208203 Spacer

Spacer

1 700 ₽
615

293150104 Pop Rivet 3/16''

Pop Rivet 3/16''

240 ₽
