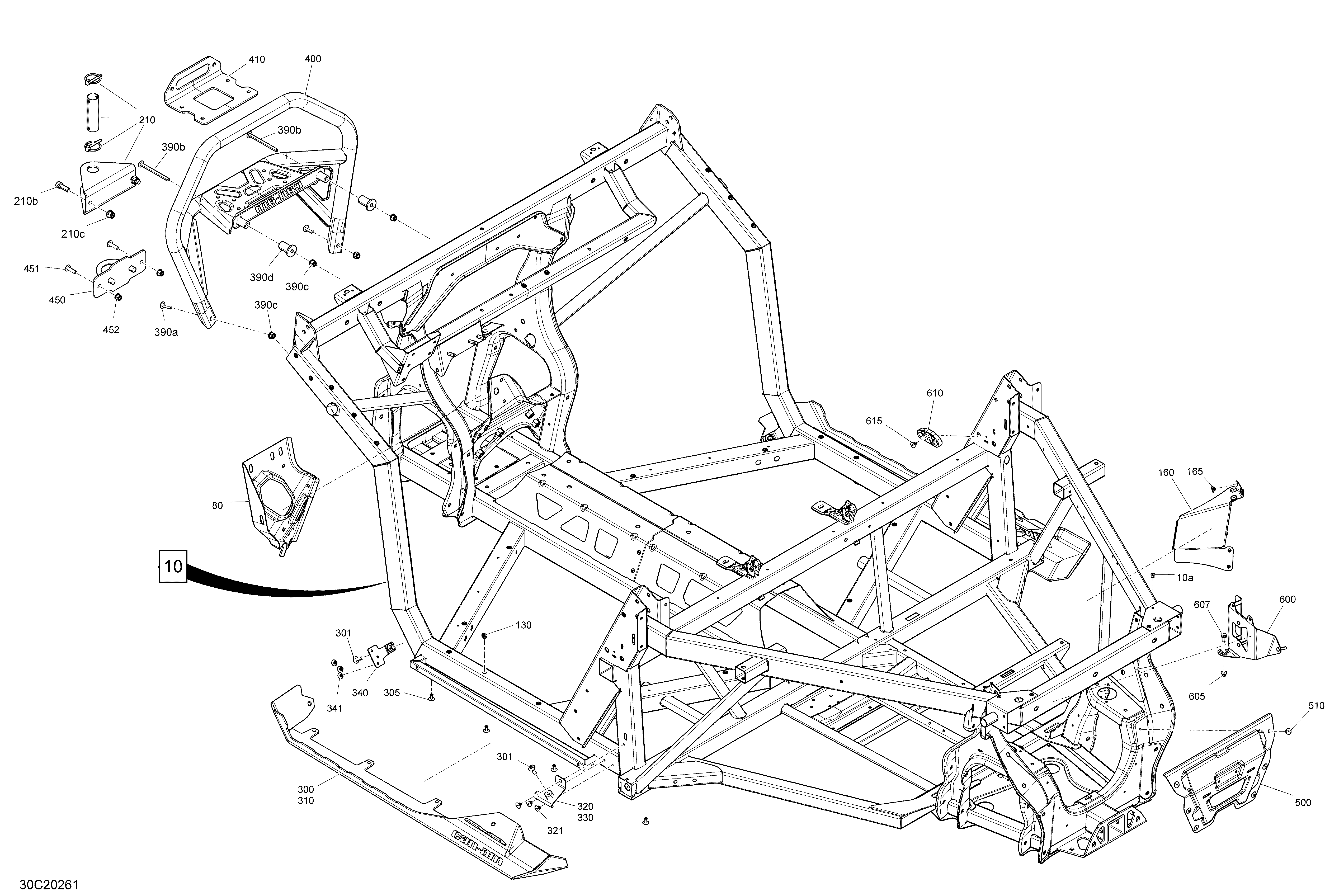

09- Frame - XMR для BRP 004 - Defender HD10 - XMR - North America - 2020
-
№АртикулНазвание
-
10715006677 Black, Frame KitBlack, Frame Kit
-
10a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
80705208741 Power Steering SupportPower Steering Support
-
130250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
160707002709 Heat ShieldHeat Shield
-
165293150092 Pop Rivet 3/16”Pop Rivet 3/16”
-
300705208686 Deep Black, LH Guard Panel. Model CamoDeep Black, LH Guard Panel. Model Camo
-
300705208694 Manta Green, LH Guard Panel. Manta GreenManta Green, LH Guard Panel. Manta Green
-
301250000874 Torx Truss M8 X 25Torx Truss M8 X 25
-
305293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
310705208687 Deep Black, RH Guard Panel. Model CamoDeep Black, RH Guard Panel. Model Camo
-
310705208695 Manta Green, RH Guard Panel. Manta GreenManta Green, RH Guard Panel. Manta Green
-
320705206342 LH Rock Slider SupportLH Rock Slider Support
-
321293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
330705206343 RH Rock Slider SupportRH Rock Slider Support
-
340705208661 Front Guard SupportFront Guard Support
-
341293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
400715006143 Deep Black, Front Bumper. Model CamoDeep Black, Front Bumper. Model Camo
-
400715006144 Manta Green, Front Bumper. Model Manta GreenManta Green, Front Bumper. Model Manta Green
-
390a250000886 Torx Screw M8 X 30Torx Screw M8 X 30
-
390b250001106 Torx Truss M/S M8 x X 100Torx Truss M/S M8 x X 100
-
390c233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
390d705206398 Bumper SpacerBumper Spacer
-
410705206371 Winch SupportWinch Support
-
450705208723 Can-Am Red, Tow HookCan-Am Red, Tow Hook
-
451250000886 Torx Screw M8 X 30Torx Screw M8 X 30
-
452233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
500705207753 Rear Chassis ReinforcementRear Chassis Reinforcement
-
510293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
600710006644 Voltage Regulator SupportVoltage Regulator Support
-
605233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
607207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
610705208203 SpacerSpacer
-
615293150104 Pop Rivet 3/16''Pop Rivet 3/16''
