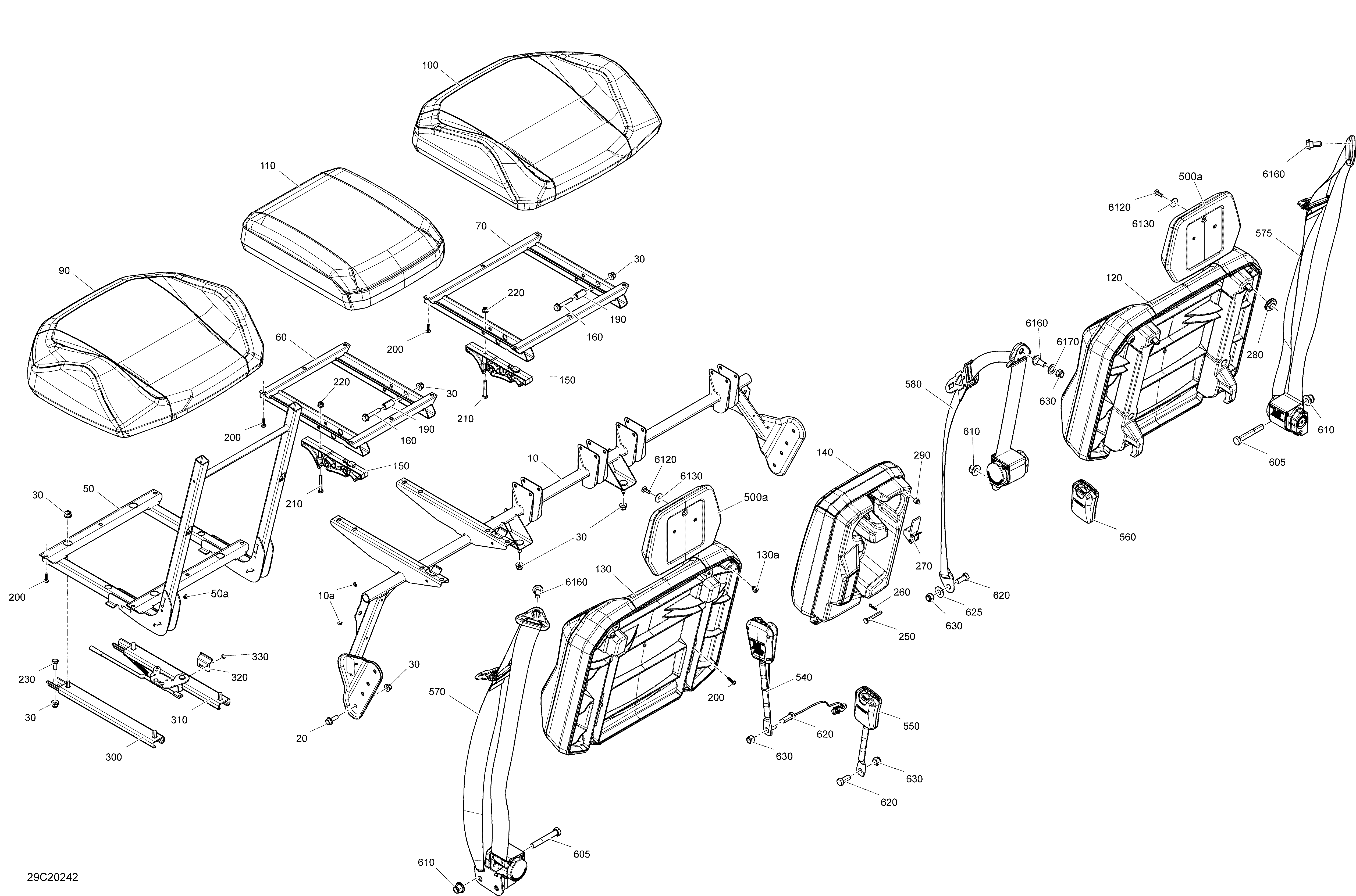

09- Seat - XMR для BRP 004 - Defender HD10 - XMR - North America - 2020

№

Артикул

Название
10

708002636 Seat Member. Includes 10 to 10a

Seat Member. Includes 10 to 10a

11 990 ₽
10a

390402200 Pop Rivet 3/16''

Pop Rivet 3/16''

120 ₽
20

207682534 Hex. Flanged Screw M8 X 25

Hex. Flanged Screw M8 X 25

740 ₽
30

233281414 Hex. Flanged Elastic Nut M8

Hex. Flanged Elastic Nut M8

490 ₽
50

708001723 Operator Seat Member. Includes 50 to 50a

Operator Seat Member. Includes 50 to 50a

29 100 ₽
50a

390402200 Pop Rivet 3/16''

Pop Rivet 3/16''

120 ₽
60

708002815 Mid Seat Member

Mid Seat Member

18 040 ₽
70

708002821 Passenger Seat Member

Passenger Seat Member

18 040 ₽
90

708002661 LH Seat Base Ass'y. Model Camo

LH Seat Base Ass'y. Model Camo

23 120 ₽
90

708003123 LH Seat Base Ass'y. Model Manta Green

LH Seat Base Ass'y. Model Manta Green

20 340 ₽
100

708002663 RH Seat Base Ass'y. Model Camo

RH Seat Base Ass'y. Model Camo

23 120 ₽
100

708003125 RH Seat Base Ass'y. Model Manta Green

RH Seat Base Ass'y. Model Manta Green

20 340 ₽
110

708002659 Central Seat Base Ass'y. Model Camo

Central Seat Base Ass'y. Model Camo

23 120 ₽
110

708003135 Central Seat Base Ass'y. Model Manta Green

Central Seat Base Ass'y. Model Manta Green

20 340 ₽
120

708002667 Backrest Ass'y. Model Camo

Backrest Ass'y. Model Camo

34 850 ₽
120

708003142 Backrest Ass'y. Model Manta Green

Backrest Ass'y. Model Manta Green

34 850 ₽
130

708002665 Backrest Ass'y. Model Camo. Includes 130 to 130a

Backrest Ass'y. Model Camo. Includes 130 to 130a

34 850 ₽
130a

293830005 Rubber Bumper. Model Camo

Rubber Bumper. Model Camo

2 260 ₽
130

708003141 Backrest Ass'y. Model Manta Green. Includes 130 to 130a

Backrest Ass'y. Model Manta Green. Includes 130 to 130a

34 850 ₽
130a

293830005 Rubber Bumper. Model Manta Green

Rubber Bumper. Model Manta Green

2 260 ₽
140

708003150 Backrest Ass'y. Model Manta Green

Backrest Ass'y. Model Manta Green

34 850 ₽
140

708003159 Backrest Ass'y. Model Camo

Backrest Ass'y. Model Camo

34 850 ₽
150

708002581 Seat Base Pivot

Seat Base Pivot

850 ₽
160

207684544 Hex. Flanged Screw M8 X 45

Hex. Flanged Screw M8 X 45

1 330 ₽
190

708001903 Bushing

Bushing

280 ₽
200

250000760 Torx Screw Truss Head K50X20 T20

Torx Screw Truss Head K50X20 T20

740 ₽
210

207064544 Hex. Screw M6 X 45

Hex. Screw M6 X 45

190 ₽
220

233261414 Hex. Flanged Elastic Nut M6 x 1.0

Hex. Flanged Elastic Nut M6 x 1.0

490 ₽
230

207182044 Hex. Screw M8 X 20

Hex. Screw M8 X 20

70 ₽
250

250400069 Pin

Pin

1 060 ₽
260

269800431 Hairpin

Hairpin

380 ₽
270

269501487 Latch

Latch

4 970 ₽
280

517303756 Grommet

Grommet

3 430 ₽
290

293830005 Rubber Bumper

Rubber Bumper

2 260 ₽
300

708000848 LH Rail

LH Rail

5 930 ₽
310

708002001 RH Rail

RH Rail

3 910 ₽
320

708002640 Seat Stopper

Seat Stopper

280 ₽
330

390402200 Pop Rivet 3/16''

Pop Rivet 3/16''

120 ₽
500a

708002853 Headrest

Headrest

5 190 ₽
540

708002331 Driver Buckle

Driver Buckle

9 020 ₽
550

708003163 Middle Buckle

Middle Buckle

6 020 ₽
560

708002329 Passenger Buckle

Passenger Buckle

6 020 ₽
570

708003082 LH Safety Belt

LH Safety Belt

25 070 ₽
575

708003200 RH Safety Belt

RH Safety Belt

23 690 ₽
580

708003164 Central Safety Belt

Central Safety Belt

25 070 ₽
605

207028046 Hex. Screw M12 X 80

Hex. Screw M12 X 80

1 540 ₽
610

233221416 Elastic Flange Nut M12

Elastic Flange Nut M12

1 050 ₽
620

250000521 Hex. Cap Screw 7/16'' X 1''

Hex. Cap Screw 7/16'' X 1''

200 ₽
625

250200102 Flat Washer M12

Flat Washer M12

740 ₽
630

250100183 Lock Nut Nylon 7/16

Lock Nut Nylon 7/16

200 ₽
6120

250000722 Torx Screw M6 X 20

Torx Screw M6 X 20

890 ₽
6130

250200162 Flat Washer M6.6 X 22

Flat Washer M6.6 X 22

200 ₽
6160

708000890 Safety Belt Screw

Safety Belt Screw

470 ₽
6170

708000891 Position Washer

Position Washer

360 ₽
