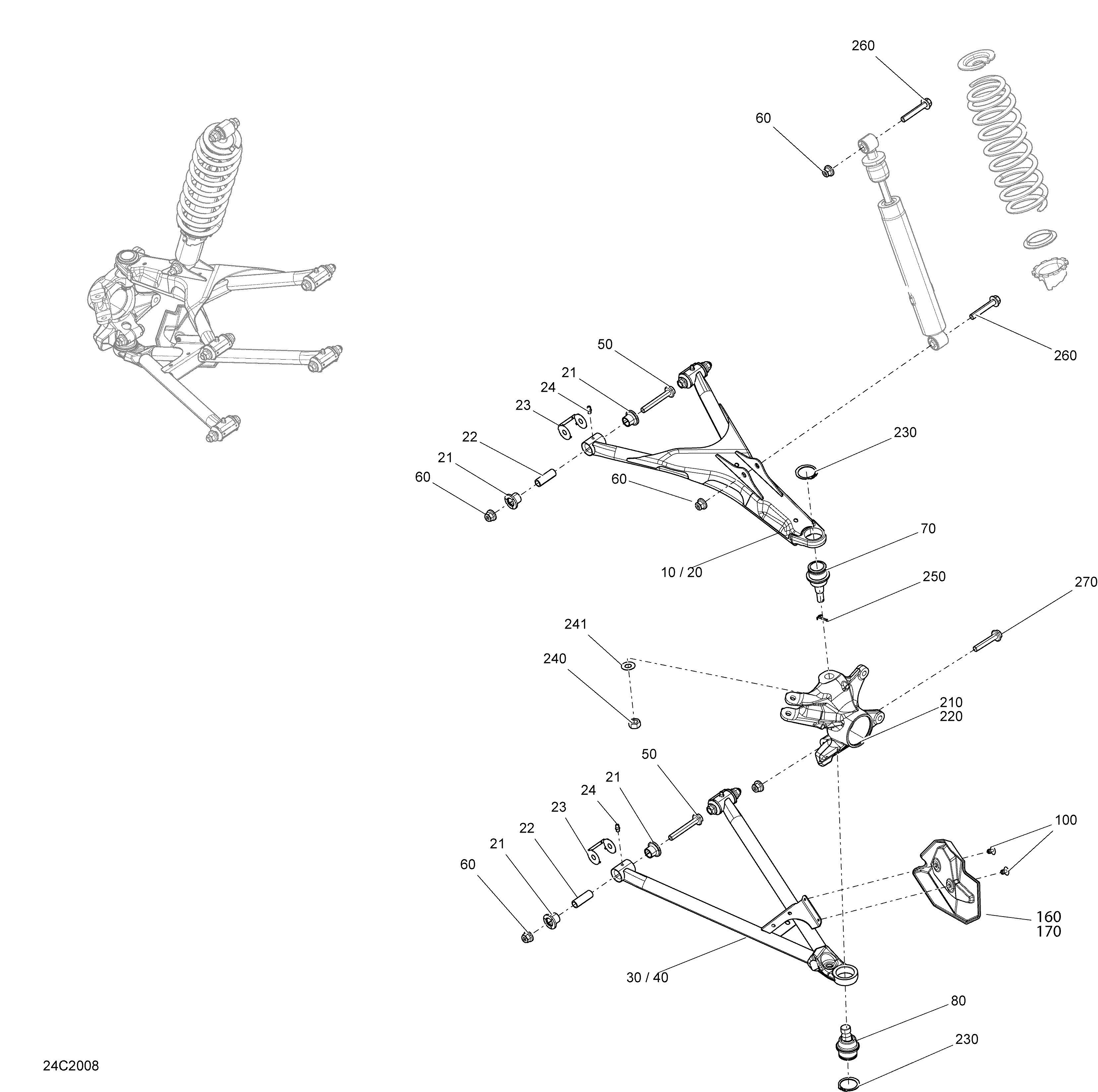

07- Suspension, Front - System - DPS - XT для BRP 007 - Defender MAX HD10 - Except XMR - North America - 2020
-
№АртикулНазвание
-
10706203987 LH Upper Suspension Arm. Except XTPLH Upper Suspension Arm. Except XTP
-
10706203989 Hyper Silver, LH Upper Suspension Arm. XTPHyper Silver, LH Upper Suspension Arm. XTP
-
20706203988 RH Upper Suspension ArmRH Upper Suspension Arm
-
21703500875 Bushing KitBushing Kit
-
22703500875 Bushing KitBushing Kit
-
23703500875 Bushing KitBushing Kit
-
24408200700 Grease FittingGrease Fitting
-
30706203995 LH Lower Suspension Arm. DPSLH Lower Suspension Arm. DPS
-
30706203998 Hyper Silver, LH Lower Suspension Arm. XTPHyper Silver, LH Lower Suspension Arm. XTP
-
40706203999 Hyper Silver, RH Lower Suspension Arm. XTPHyper Silver, RH Lower Suspension Arm. XTP
-
40706203996 RH Lower Suspension Arm. DPSRH Lower Suspension Arm. DPS
-
50207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
60233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
70706203084 Ball JointBall Joint
-
80706202045 Ball JointBall Joint
-
100293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
160706202135 RH ProtectorRH Protector
-
170706202134 LH ProtectorLH Protector
-
210706203096 LH Front KnuckleLH Front Knuckle
-
220706203097 RH Front KnuckleRH Front Knuckle
-
230293370035 CirclipCirclip
-
240250100099 Nut M12Nut M12
-
241250200086 Flat WasherFlat Washer
-
250211400017 Cotter PinCotter Pin
-
260207606046 Hex. Flanged Screw M10 X 60Hex. Flanged Screw M10 X 60
-
270207605546 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
