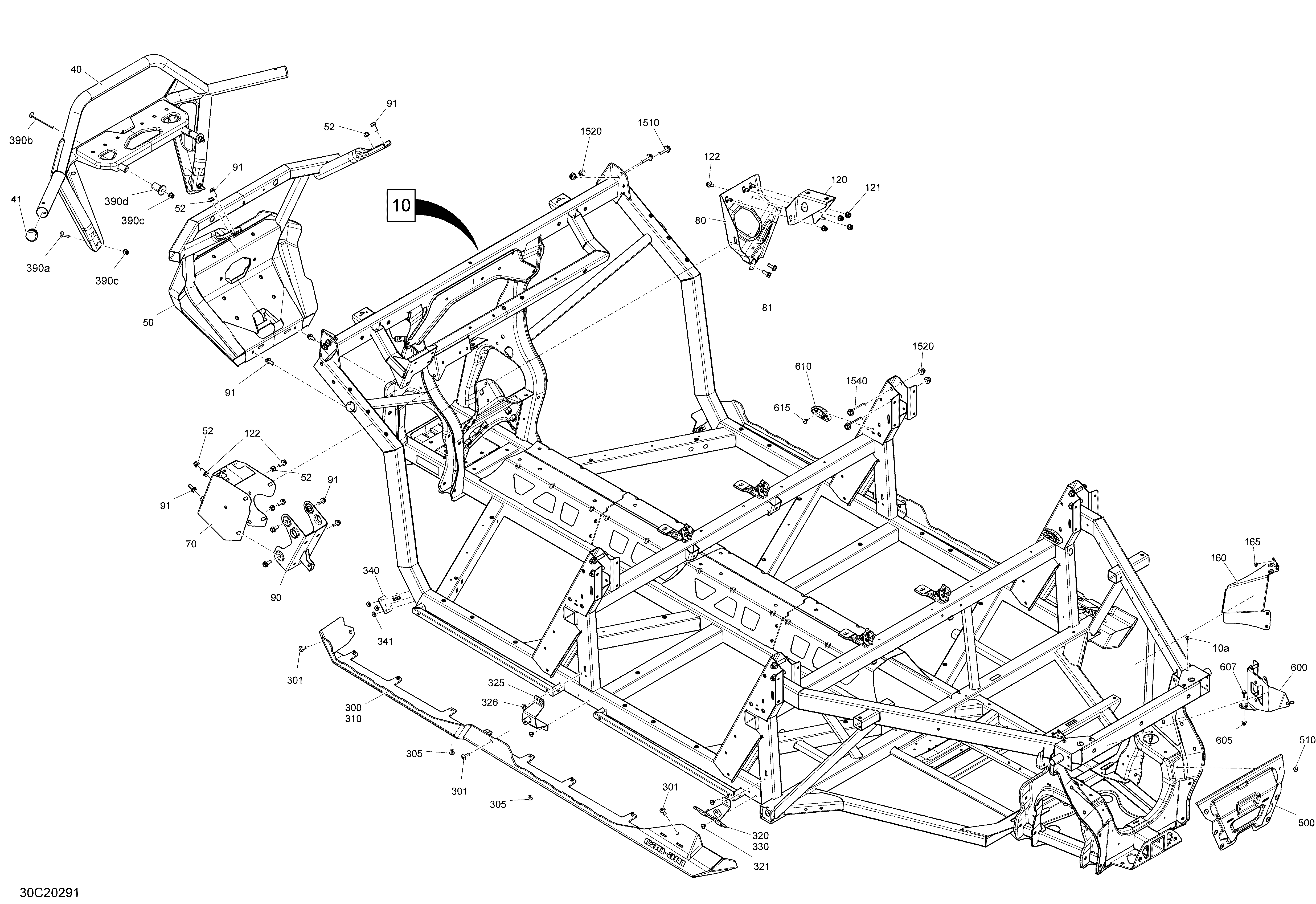

09- Frame для BRP 007 - Defender MAX HD10 - Except XMR - North America - 2020
-
№АртикулНазвание
-
10715006682 Black, Frame KitBlack, Frame Kit
-
10a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
40715005754 Deep Black, Front Bumper. XTDeep Black, Front Bumper. XT
-
41705202455 Cap. XTCap. XT
-
50705207588 Deep Black, Front BumperDeep Black, Front Bumper
-
51207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
52233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
70705208747 Module SupportModule Support
-
80705208741 Power Steering Support. DPS_XTPower Steering Support. DPS_XT
-
81207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
90715005429 Support Steering ColumnSupport Steering Column
-
91207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
120705208742 SupportSupport
-
121233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
122207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
160707002709 Heat ShieldHeat Shield
-
165293150092 Pop Rivet 3/16”Pop Rivet 3/16”
-
300705208715 Deep Black, LH Guard Panel. Lone Star EditionDeep Black, LH Guard Panel. Lone Star Edition
-
301250000874 Torx Truss M8 X 25. Lone Star EditionTorx Truss M8 X 25. Lone Star Edition
-
305293150108 Pop Rivet 3/16”. Lone Star EditionPop Rivet 3/16”. Lone Star Edition
-
310705208716 Deep Black, RH Guard Panel. Lone Star EditionDeep Black, RH Guard Panel. Lone Star Edition
-
320705206342 LH Rock Slider SupportLH Rock Slider Support
-
321293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
325705207220 Support Guard. Lone Star EditionSupport Guard. Lone Star Edition
-
326293150104 Pop Rivet 3/16''. Lone Star EditionPop Rivet 3/16''. Lone Star Edition
-
330705206343 RH Rock Slider SupportRH Rock Slider Support
-
340705208661 Front Guard SupportFront Guard Support
-
341293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
390a250000886 Torx Screw M8 X 30. XTTorx Screw M8 X 30. XT
-
390b250001106 Torx Truss M/S M8 x X 100. XTTorx Truss M/S M8 x X 100. XT
-
390c233281414 Hex. Flanged Elastic Nut M8. XTHex. Flanged Elastic Nut M8. XT
-
390d705206398 Bumper Spacer. XTBumper Spacer. XT
-
500705207753 Rear Chassis ReinforcementRear Chassis Reinforcement
-
510293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
600710006644 Voltage Regulator Support. DPS_XTVoltage Regulator Support. DPS_XT
-
605233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
607207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
610705208203 SpacerSpacer
-
615293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1510250000855 Hex. Flanged Screw M10 X 35Hex. Flanged Screw M10 X 35
-
1520233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
1540207606046 Hex. Flanged Screw M10 X 60Hex. Flanged Screw M10 X 60
